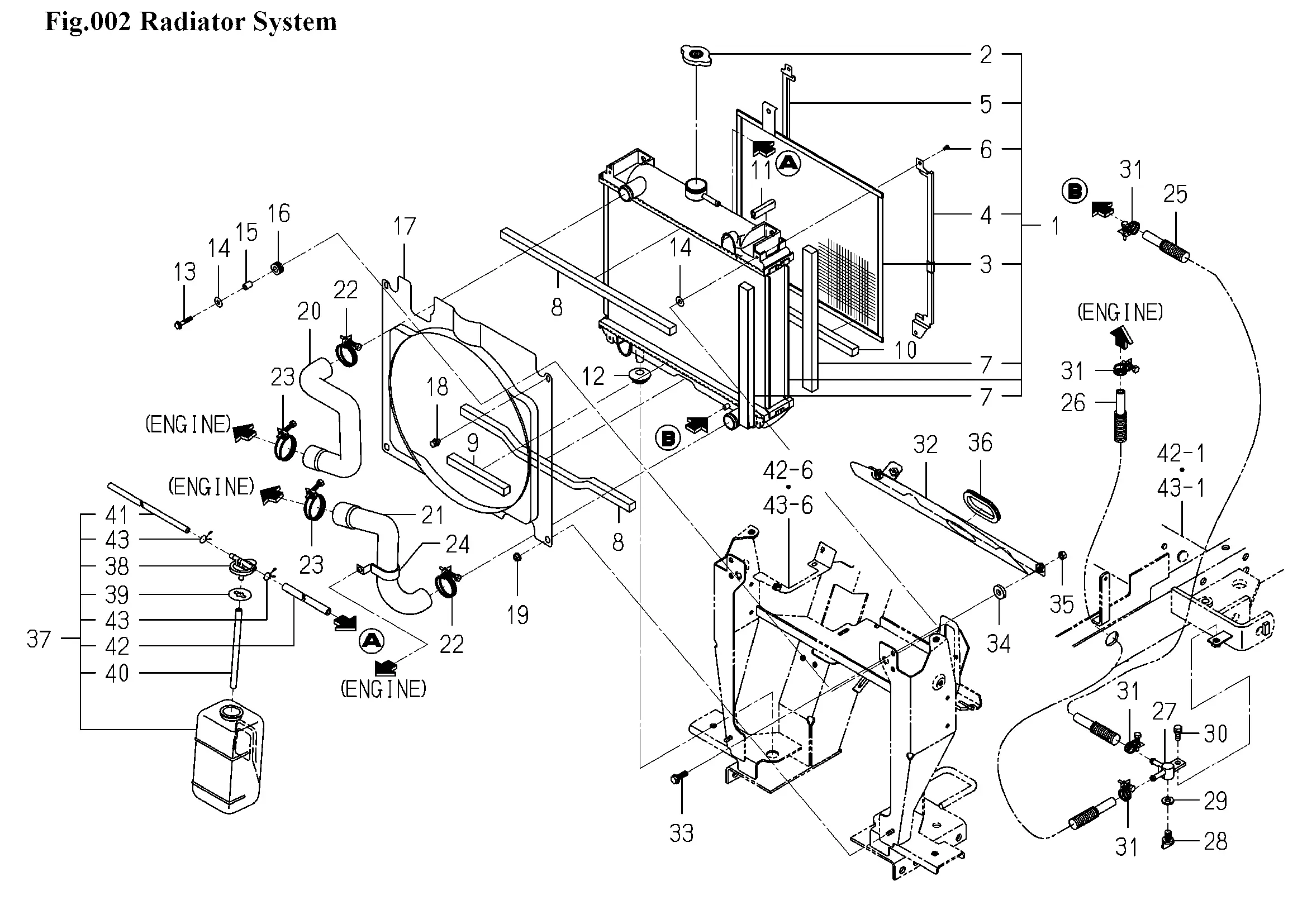

Kühler
Ersatzteile (43 Teile)
1
RADIATOR ASSY
2
CAP
3
PROTECTOR
4
GUIDE
5
GUIDE
6
SCREW/P
7
PACKING
8
1650-102-006-20
9
INSULATOR/15X15X140
10
SEAL/15X15X380
11
PAD/50
12
BUSH,LEVER
13
FLANGEBOLT/M6X30
14
WASHER
15
COLLAR
16
GROMMET
17
SHROUD
18
V210-360-601-20
19
NUT/WASHER/M6
20
HOSE/RADIATOR/UPPER
21
HOSE/RADIATOR/LOWER
22
J061-230-038-00
23
CLAMP/WIRE/36-44
24
CLAMP
25
HOSE/290 ASSY
26
HOSE/450 ASSY
27
CONNECTOR
28
1424-101-203-00
29
PACKING
30
BOLT,SP/M8X20
31
J061-210-015-00
32
PANEL/RADIATOR COMP
33
FLANGEBOLT/M8X25
34
CUSHION/RUBBER/10X25
35
NUT/M8
36
TRIM/188
37
RESERVETANK ASSY
38
CAP
39
PACKING
40
HOSE/RUBBER
41
PIPE
42
1705-102-252-20
43
CLAMP
