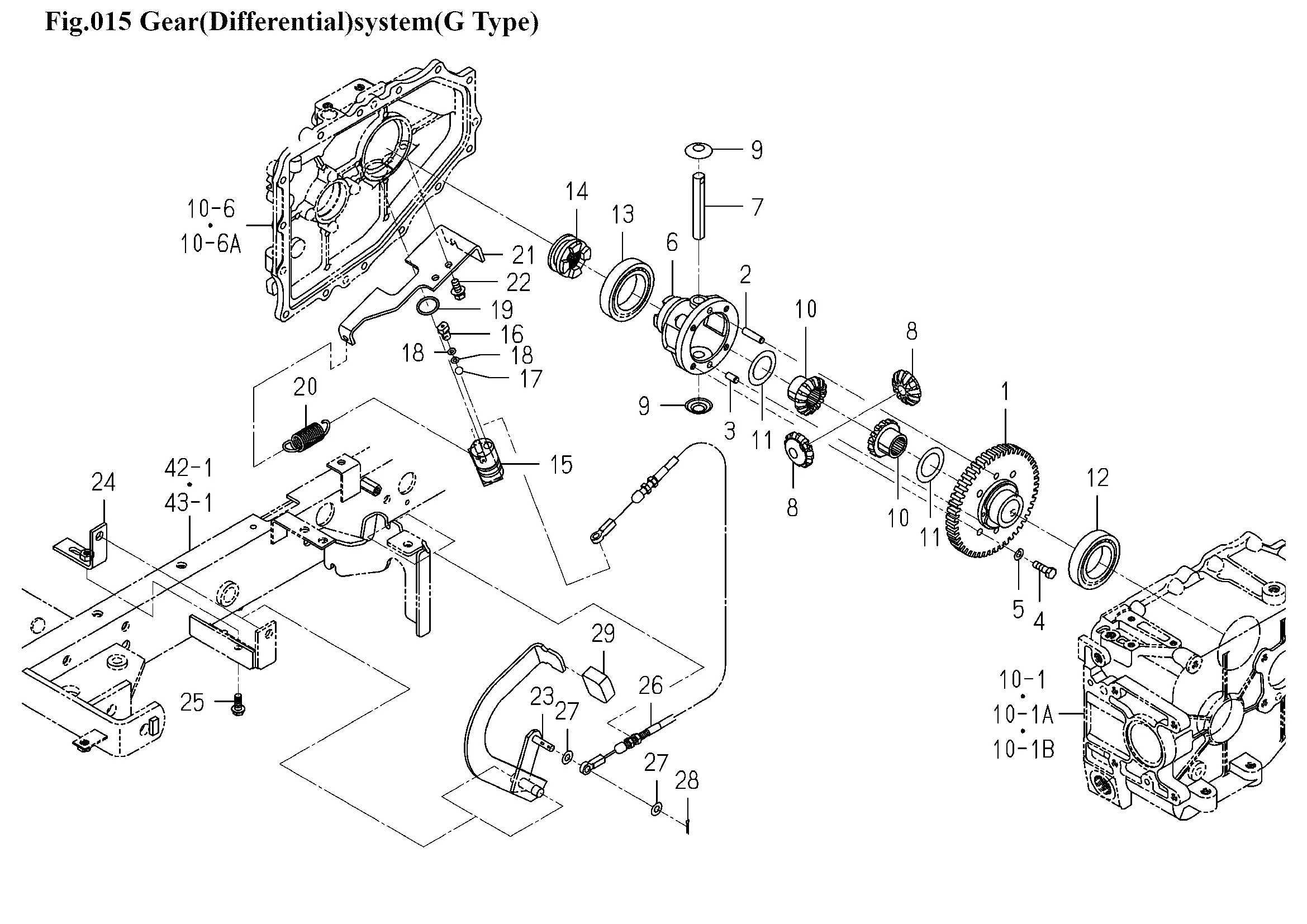

Differenzial
Ersatzteile (29 Teile)
1
1728-204-001-10
2
1672-301-002-00
3
PIN,ST,B/8X16
4
BOLT/M8X25
5
WASHER,SP/M8
6
1427-301-002-20
7
SHAFT,DIFF. PINION
8
PINION/BEVEL/12
9
1802-432-001-00
10
GEAR/BEVEL/14
11
COLLAR,THRUST
12
BEARING,RB/6009
13
BEARING/BALL/6010C
14
CLUTCH/DIFFLOCK
15
1728-204-200-10
16
1728-204-072-20
17
BALL,STEEL
18
WASHER,PL/M4
19
O-RING/1A,P24
20
1728-204-073-30
21
1728-204-071-20
22
BOLT,SP/M8X20
23
PEDAL/DIFF COMP
24
PLATE/L/25X70 COMP
25
V231-360-802-00
26
CABLE/DIFF ASSY
27
WASHER,PL/M8
28
PIN,SPLIT/2.5X15
29
STOPPER
