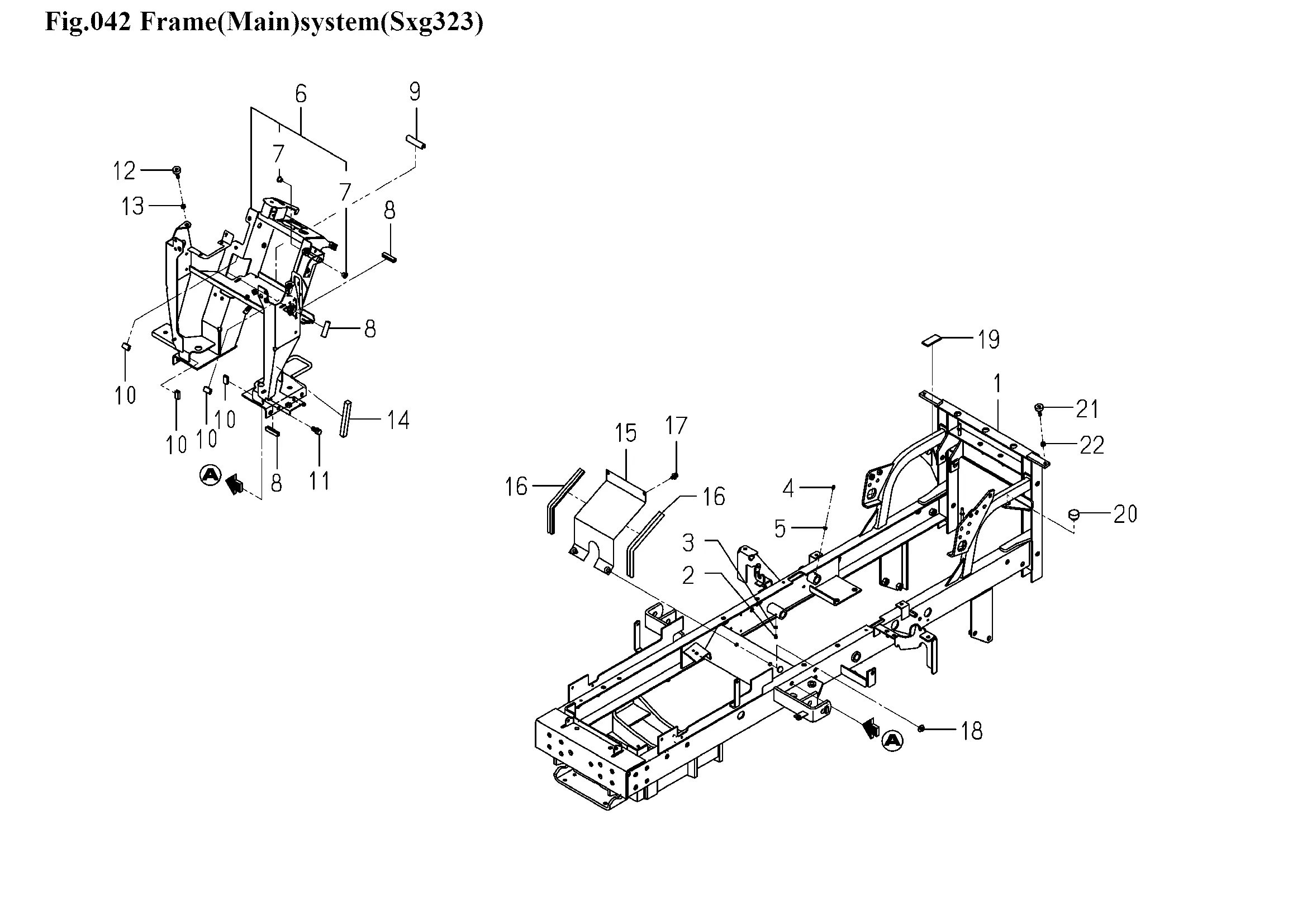

Rahmen
Ersatzteile (22 Teile)
1
FRAME/MAIN/323 COMP
2
NIPPLE,GREASE
3
V401-160-006-00
4
NIPPLE,GREASE
5
V401-160-006-00
6
1728-410-780-90
7
BUSH/10X12X10
8
PAD/50
9
TRIM/70
10
PAD/25
11
BOLT,S/M10X20/7T
12
1421-602-005-10
13
NUT/M8
14
INSULATOR/15X15X140
15
PLATE/SEAL COMP
16
1728-630-005-20
17
BOLT,SP/M8X16
18
Kombimutter-M8
19
INSULATOR/25X60
20
RUBBER,BUFFER.A
21
INSULATOR
22
NUT/M8
