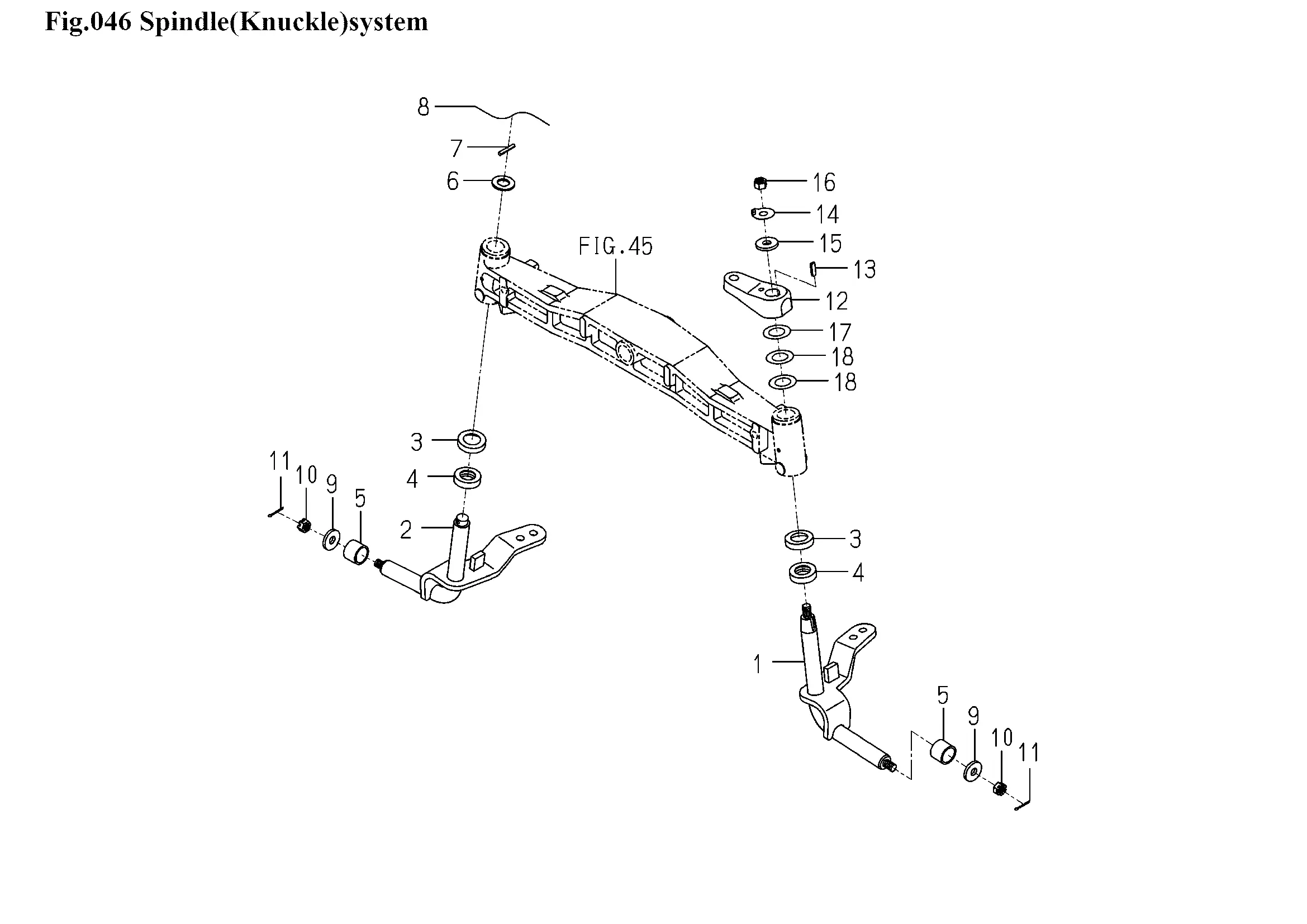

Achsschenkel
Ersatzteile (17 Teile)
1
SPINDLE/KNUCKLE/LH
2
SPINDLE/KNUCKLE/RH
3
COVER/44X10
4
THRUST
5
COLLAR/26X32X24
6
WASHER,PL/M18
7
PIN,SPRING/5X32 W
9
WASHER,PULLEY
10
NUT,CASTLE/M12 P1.25
11
PIN,SPLIT/3X25
12
ARM/KNUCKLE
13
KEY,ROTARY TOP SHAFT
14
WASHER,LOCK/M12
15
WASHER/13X35X5
16
NUT/M12
17
SHIM,A/0.5
18
SHIM,A/1.0
