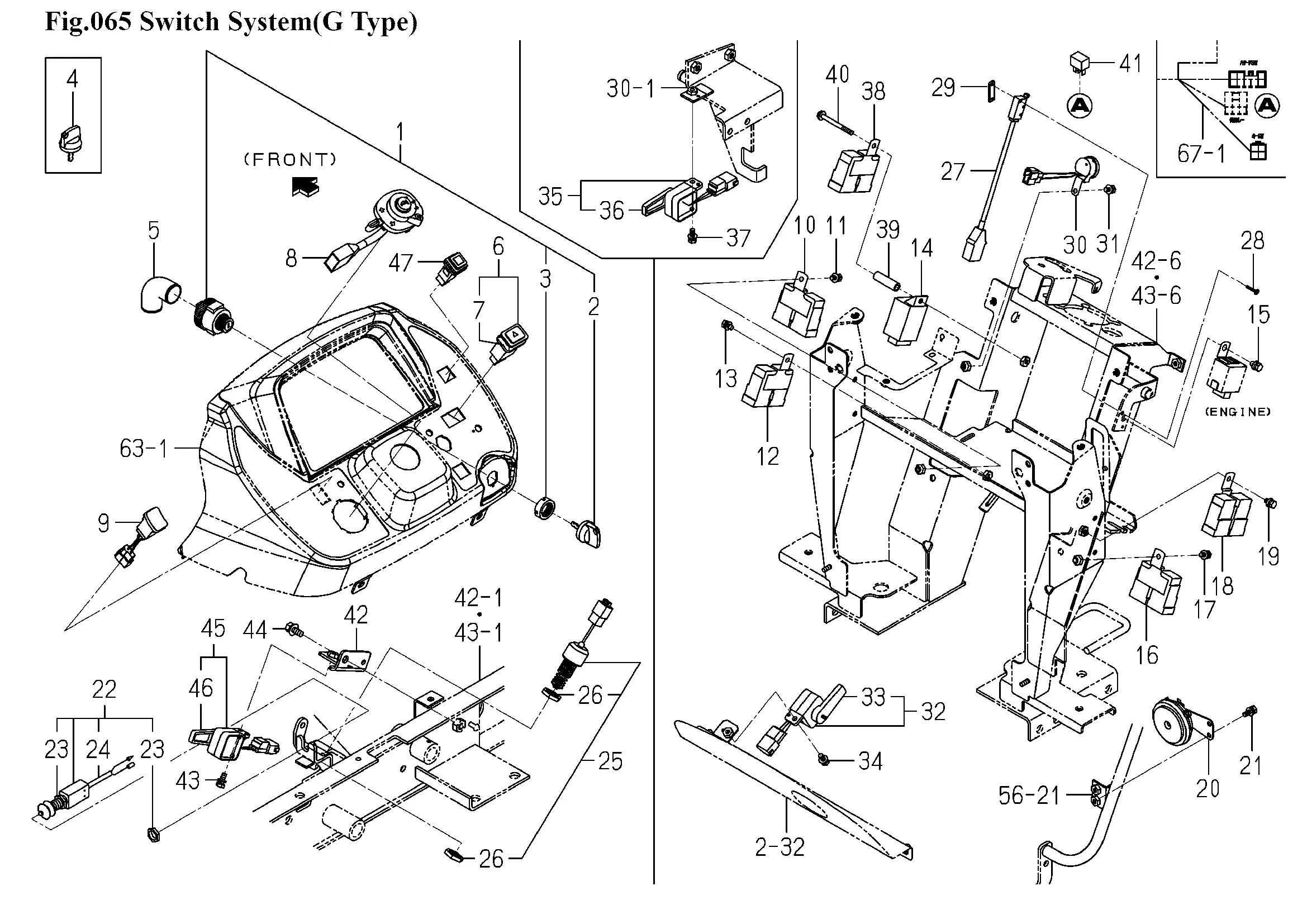

Schalter, Relais
Ersatzteile (47 Teile)
1
SWITCH/MAIN ASSY
2
KEY
3
NUT/RING
4
KEY
5
COVER/SWITCH
6
SWITCH/HAZARD ASSY
7
BULB/LAMP/14V60MA
8
1739-670-220-30
9
SWITCH/LAMP ASSY
10
RELAY/4P-2 ASSY
11
V210-360-601-20
12
RELAY/4P-2 ASSY
13
V210-360-601-20
14
1739-681-220-20
15
V210-360-601-20
16
RELAY/4P-2 ASSY
17
V210-360-601-20
18
RELAY/4P-2 ASSY
19
V210-360-601-20
20
1740-680-530-20
21
BOLT,SP/M6X16
22
1772-654-280-10
23
1772-654-281-00
24
BOOT
25
SWITCH/PUSH ASSY
26
NUT
27
SWITCH,MERIT
28
SCREW/M03X20
29
PLATE,SWITCH
30
BUZZER
31
V210-360-601-20
32
1716-680-330-10
33
ARM
34
BOLT,SP/M6X16
35
1716-680-330-10
36
ARM
37
BOLT,SP/M6X16
38
RELAY/4P-2 ASSY
39
1835-658-003-00
40
V230-360-606-00
41
RELAY/5P ASSY
42
1728-690-810-10
43
BOLT,SP/M6X16
44
BOLT,SP/M8X20
45
1716-680-330-10
46
ARM
47
SWITCH/MOMENTARY/G/W
