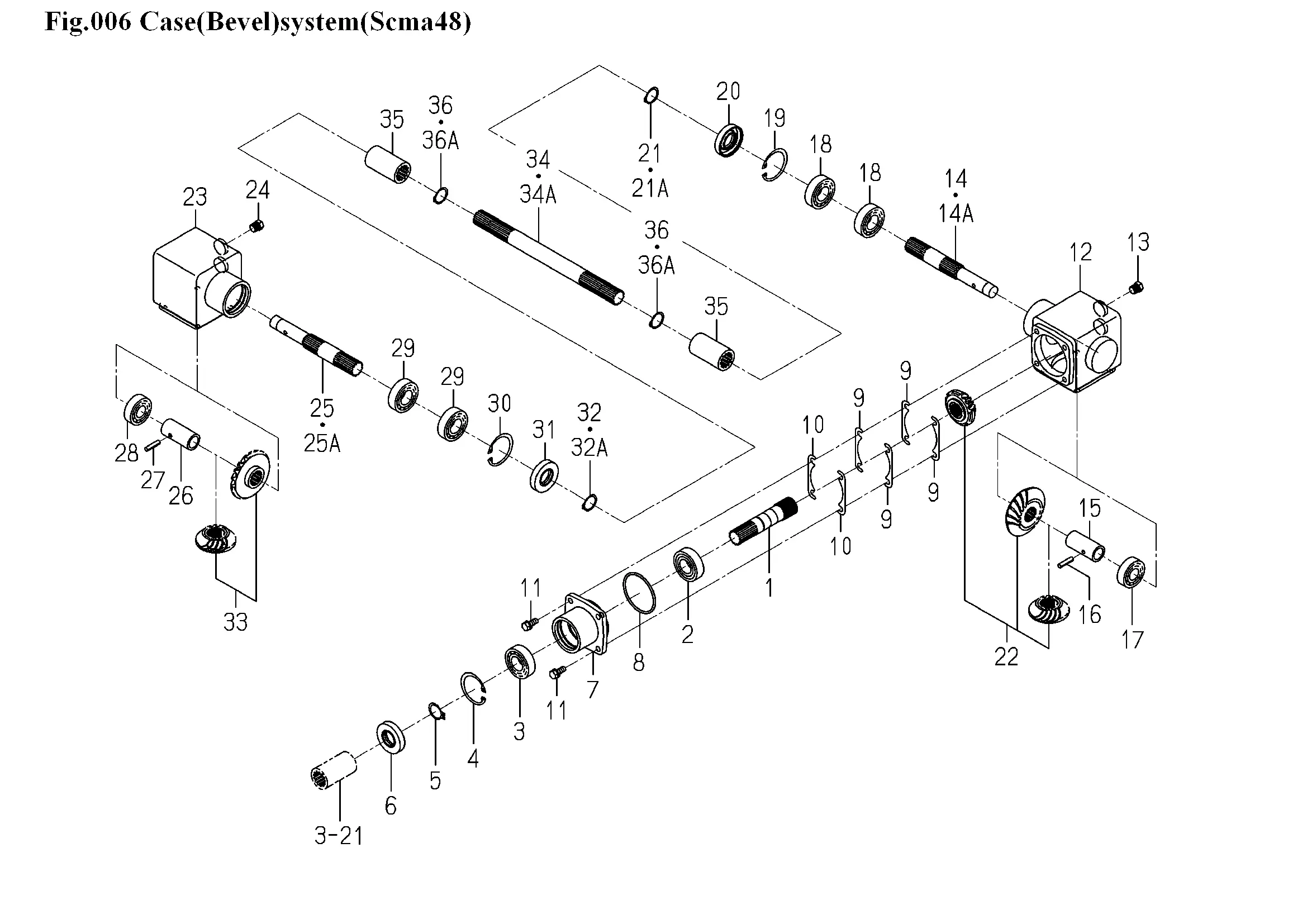

Getriebe
Ersatzteile (42 Teile)
1
SHAFT/LH/REAR
2
BEARING/BALL 6205SH2
3
BEARING,RB/6205
4
RING,SNAP/52 C
5
RING,SNAP/25 C
6
SEAL,OIL/TC255210
7
METAL/BEVELCASE
8
O-RING/1A,G65
9
SHIM/0.1
10
SHIM/0.2
11
BOLT,S/M8X20
12
CASE/BEVEL/LH
13
PLUG,DRAIN (1/4)
14
SHAFT/CASE
14A
8663-202-058-10
15
HUB/SPACER
16
PIN,SPRING/6X28 W
17
V600-110-620-40
18
BEARING,RB/6205
19
RING,SNAP/52 C
20
SEAL,OIL/TC255210
21
RING,SNAP/25 C
21A
RING/SNAP/CS25
22
GEAR/B/21-25-21 SET
23
CASE/BEVEL/RH
24
PLUG,DRAIN (1/4)
25
SHAFT/CASE
25A
8663-202-058-10
26
HUB/SPACER
27
PIN,SPRING/6X28 W
28
V600-110-620-40
29
BEARING,RB/6205
30
RING,SNAP/52 C
31
SEAL,OIL/TC255210
32
RING,SNAP/25 C
32A
RING/SNAP/CS25
33
GEAR/BEVEL/25-2 SET
34
SHAFT/CENTER/48
34A
8663-202-061-10
35
COUPRING/21X36X65
36
RING,SNAP/25 C
36A
RING/SNAP/CS25
