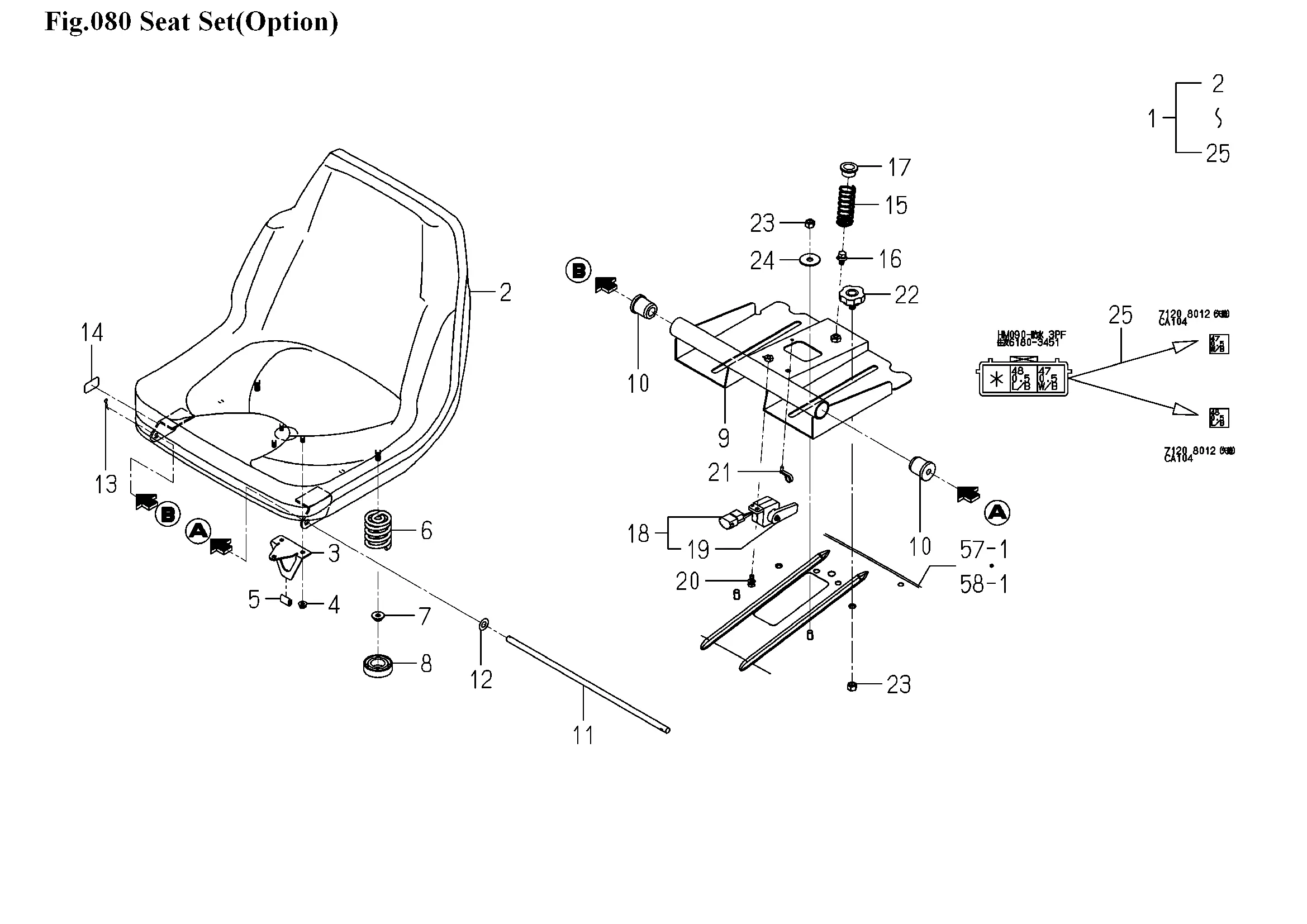

Seat Set(Option)
Ersatzteile (25 Teile)
1
1728-611-300-00
2
Sitz, kpl.
3
1782-611-005-10
4
NUT/WASHER/M6
5
PAD/20
6
SPRING/D=6
7
V363-260-008-00
8
CAP/SPRING
9
1782-611-310-10
10
RUBBER,CUSHION (A)
11
1782-611-053-00
12
V411-260-010-00
13
PIN/SNAP
14
1782-611-007-00
15
SPRING/HC072
16
BOLT,SP/M8X16
17
BUSH/19X30X14
18
Bremslichtschalter
19
ARM
20
BOLT,SP/M6X16
21
CLAMP
22
BOLT,KMOB
23
NUT/M10
24
WASHER/11X35X02
25
HARNESS/SWITCH/SEAT
