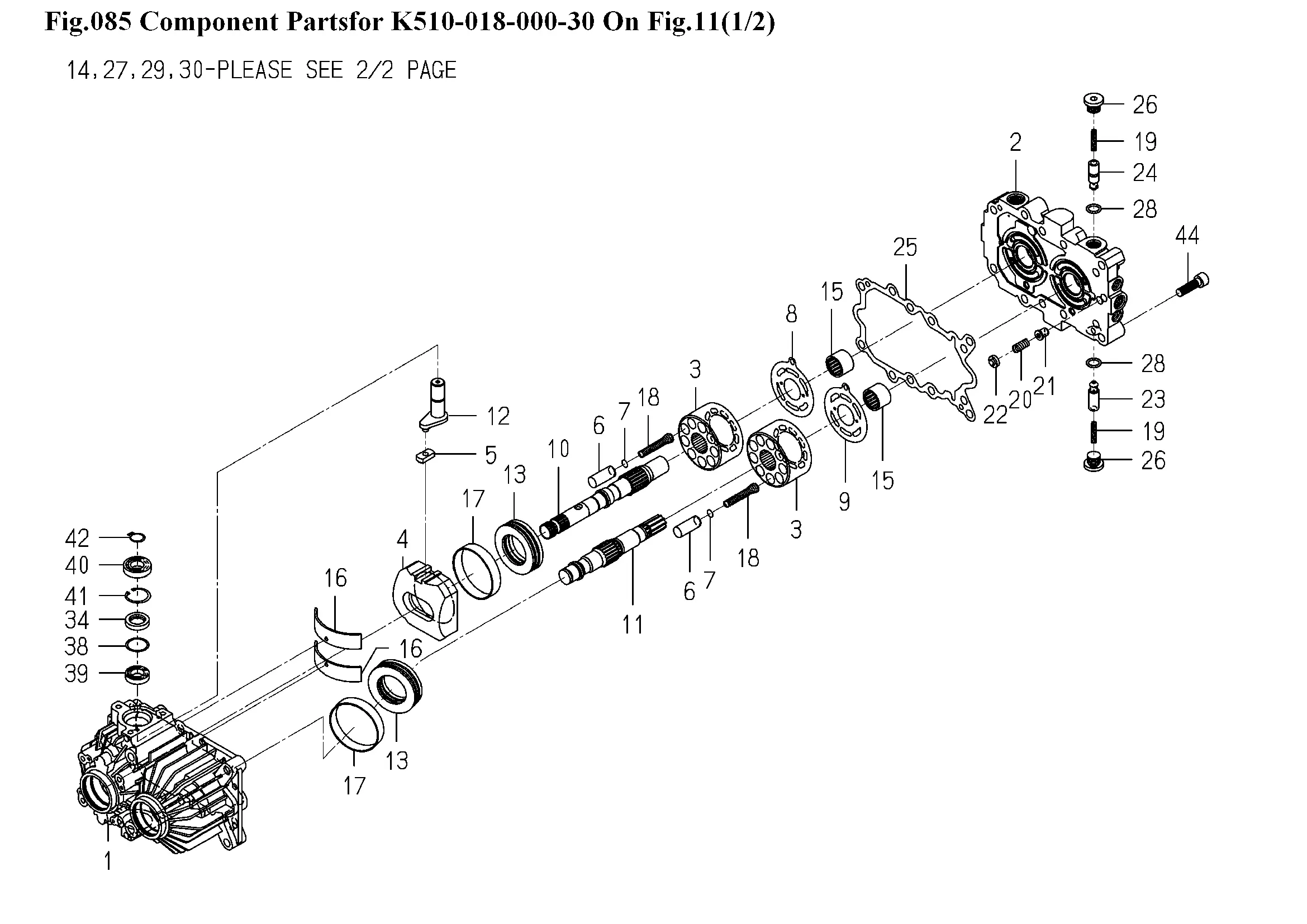

Einzelteile Hydrostat K510-018-000-30
Ersatzteile (51 Teile)
1
CASE
2
K510-018-004-00
3
K510-005-005-00
4
K510-001-006-10
5
K510-001-007-00
6
K510-006-008-00
7
K510-001-009-00
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
K510-018-012-00
11
K510-005-013-00
12
K510-018-014-00
13
BEARING/THRUST
14
V600-110-620-40
15
NEEDLE
16
BUSH/95X100X22
17
BUSH/68X71X14
18
SPRING/HC053
19
SPRING/HC030
20
SPRING/HC021
21
K510-003-022-00
22
K510-003-037-00
23
POPPET/CHECK/0.5
24
POPPET/CHECK/1.3
25
GASKET
26
PLUG(G3/8)
27
PLUG(PF1/4)
28
O-RING/1B,P14
29
O-RING/1B,P11
30
RING,SNAP/20 C
31
RING,SNAP/47 C
32
RING,SNAP/32 C
33
OIL SEAL
34
SEAL/OIL
35
SEAL,OIL/TC20477
36
SEAL/47
37
CAP/32X7
38
WASHER/25X30X1
39
K510-017-047-00
40
K510-017-048-00
41
RING,SNAP/30 C
42
RING,SNAP/17 C
43
K510-001-036-00
44
V220-541-003-50
45
VALVE/RELIEF SET
46
SPOOL
47
PLUG/M12X1.25
48
SPRING/HC023
49
O-RING
50
O-RING/1B,P10
51
PLUG/SCREW/SEAL
