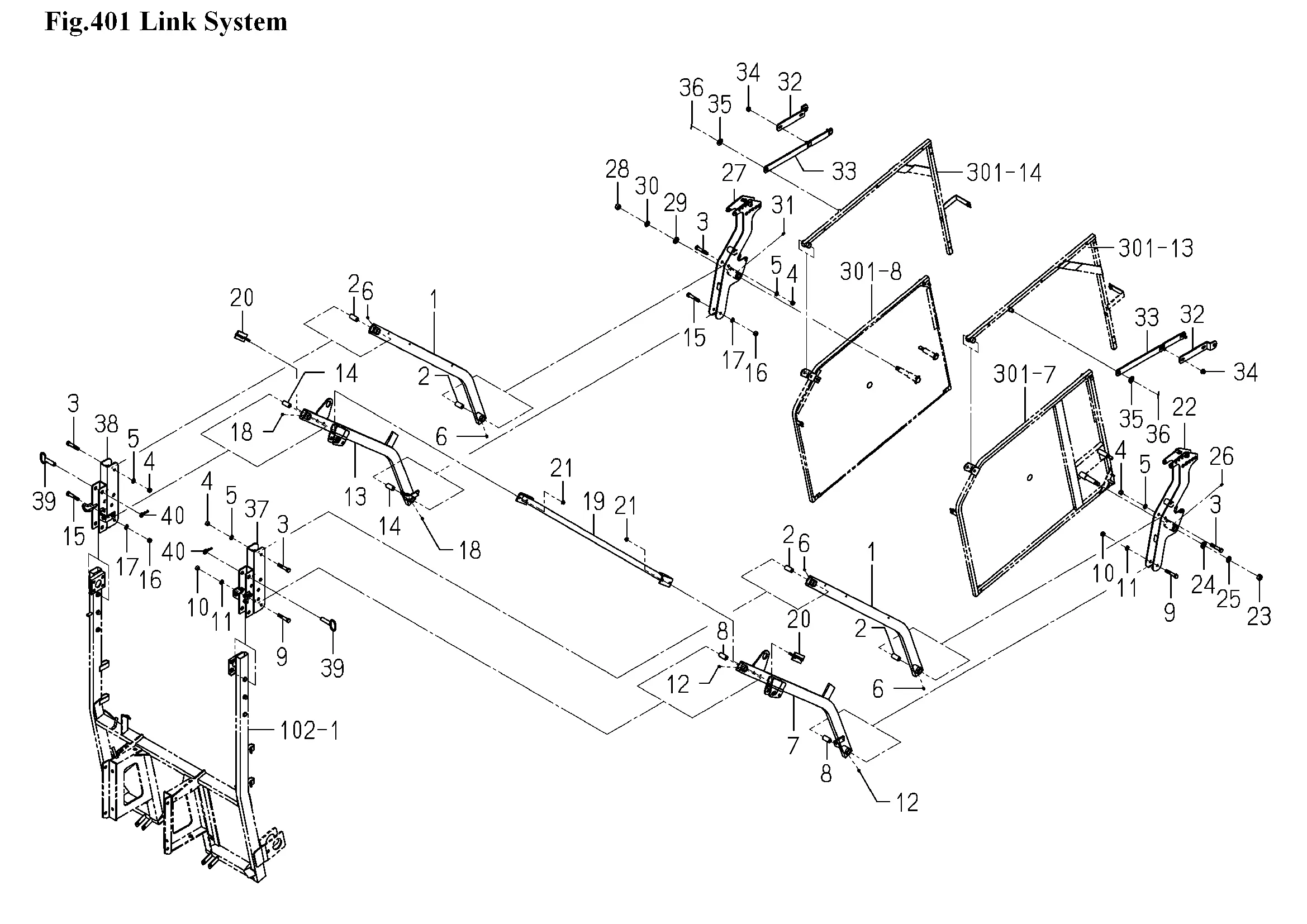

Aushebung
Ersatzteile (40 Teile)
1
Verbindungsstück, Container
2
COLLAR/12X20X41
3
BOLT/M12X65/7T
4
NUT/M12
5
WASHER,SP/M12
6
NIPPLE,GREASE
7
Arm, li
8
COLLAR/12X20X41
9
BOLT/M12X65/7T
10
NUT/M12
11
WASHER,SP/M12
12
NIPPLE,GREASE
13
Arm, Aushebung, rechts
14
COLLAR/12X20X41
15
BOLT/M12X65/7T
16
NUT/M12
17
WASHER,SP/M12
18
NIPPLE,GREASE
19
BAR COMP
20
Platte
21
Kombimutter-M8
22
Halter
23
NUT/M16
24
V411-260-016-00
25
WASHER,SP/M16
26
NIPPLE,GREASE
27
8664-455-550-10
28
NUT/M16
29
V411-260-016-00
30
WASHER,SP/M16
31
NIPPLE,GREASE
32
Strebe
33
Strebe, 32x471
34
NUT/WASHER/M10
35
V411-260-016-00
36
V500-163-003-00
37
Rahmen, oben, links
38
FRAME/UPPER/RH COMP
39
Bolzen 16x65
40
PIN/HAIR
