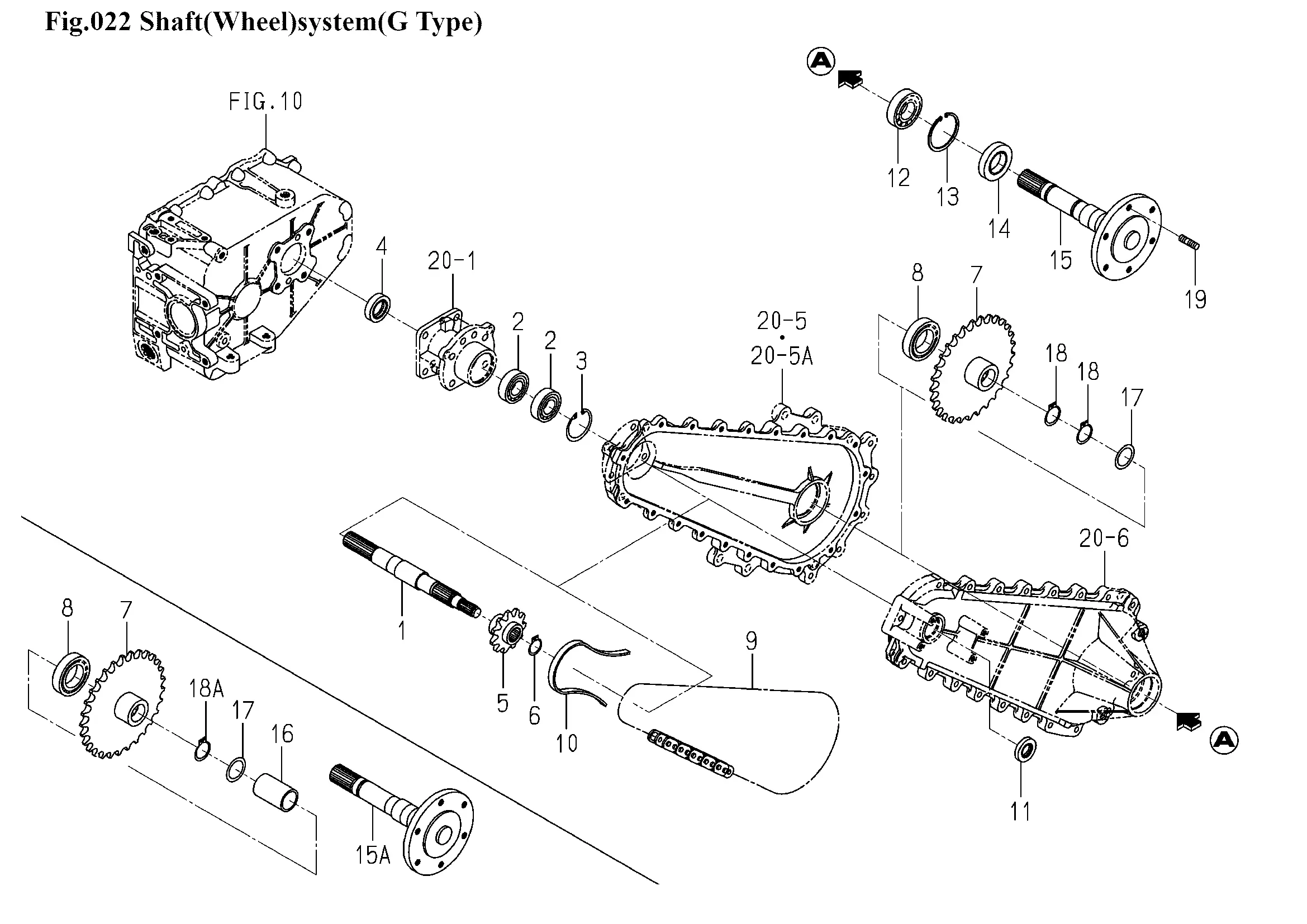

Antrieb Hinterachse
Ersatzteile (21 Teile)
1
SHAFT/DIFF/G
2
BEARING,RB/6205
3
RING,SNAP/52 C
4
SEAL,OIL/TC284511
5
SPROCKET/11
6
RING,SNAP/25 C
7
1728-307-025-00
8
BEARING,RB/6008
9
ROLLERCHAIN
10
1728-307-026-10
11
SEAL,OIL/TC20408
12
BEARING,RB/6206
13
RING/SNAP/R62
14
SEAL/OIL
15
SHAFT/WHEEL COMP
15A
1832-307-610-00
16
1832-307-061-00
17
WASHER/31X42X1
18
RING,SNAP/30 C
18A
RING,SNAP/30 C
19
STUD/M10X20/7T
