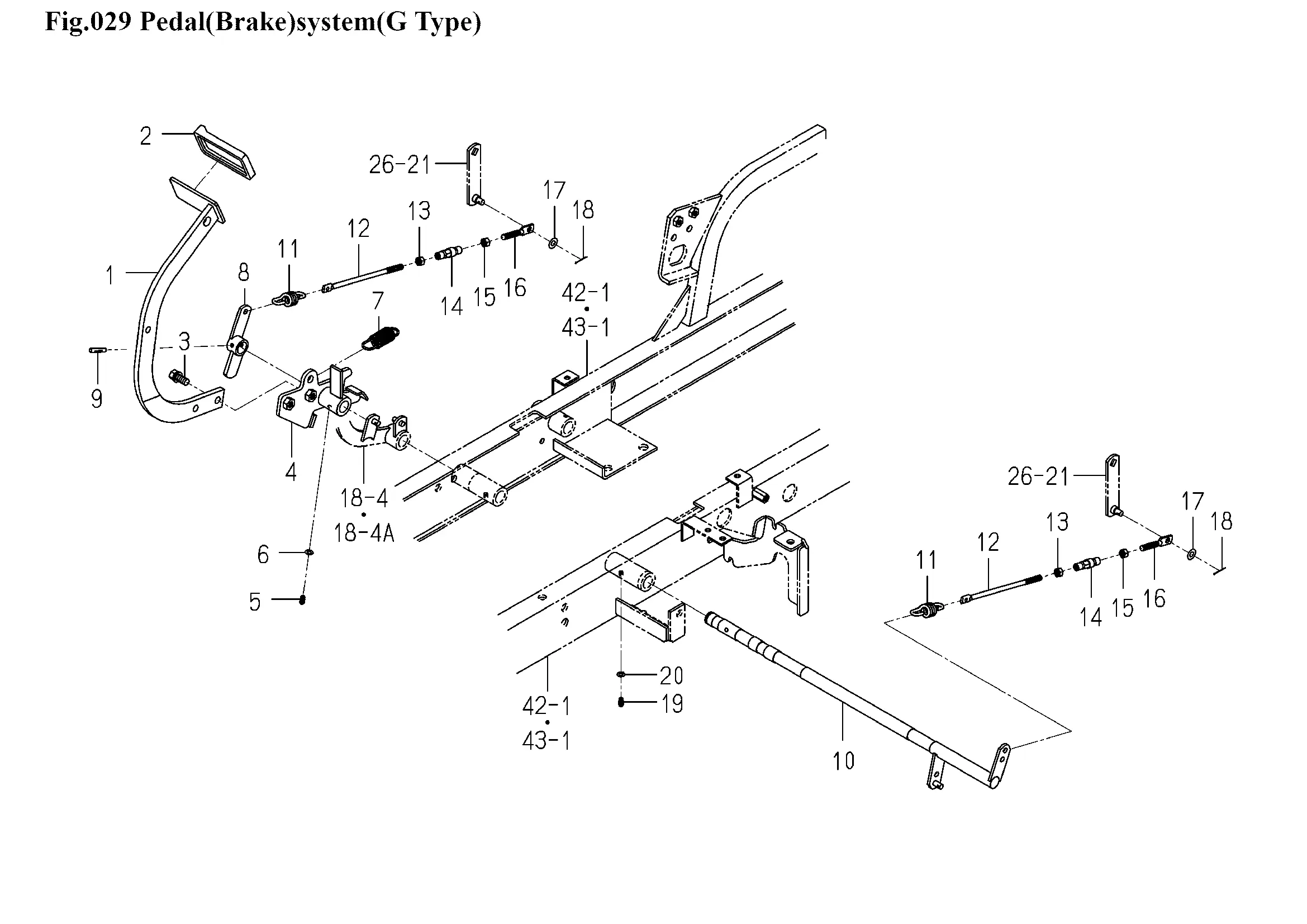

Pedal Bremse
Ersatzteile (20 Teile)
1
PEDAL/BRAKE/G COMP
2
1524-122-001-10
3
BOLT,S/M10X25/7T
4
ARM/BRAKE/PEDAL COMP
5
NIPPLE,GREASE
6
V411-260-006-00
7
SPRING/HE068
8
ARN/BRAKE/G COMP
9
PIN/GROOVE
10
1728-312-760-20
11
SPRING/HE060
12
ROD/M08X172
13
NUT/M8
14
TURNBUCKLE/M8
15
NUT/LH/M08
16
ROD/M08/LHX60
17
WASHER,PL/M8
18
PIN,SPLIT/2X20
19
NIPPLE,GREASE
20
V401-160-006-00
