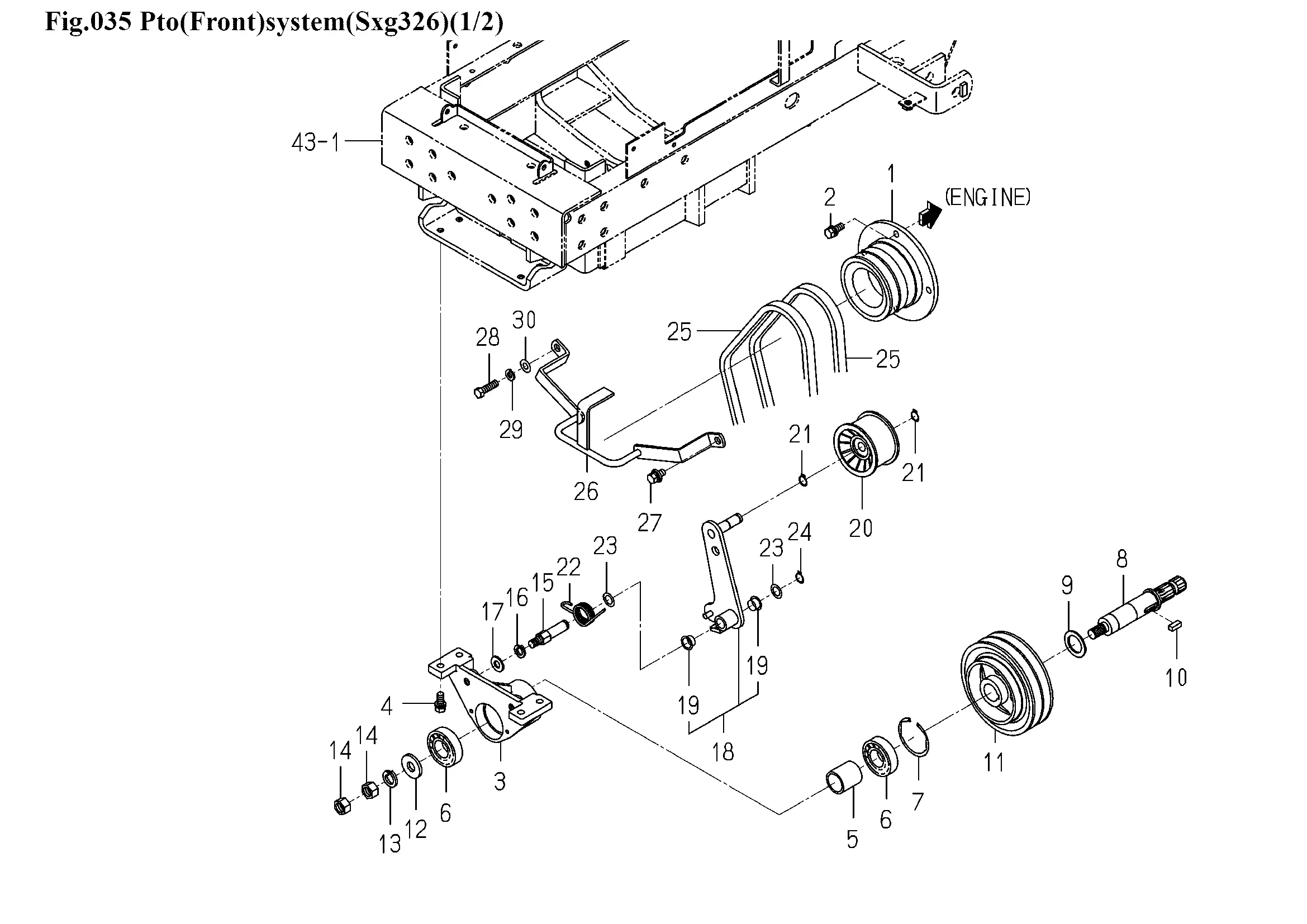

Front-PTO
Ersatzteile (57 Teile)
1
PULLEY/V2B104
2
BOLT,SEMS/M10X25,7T
3
METAL/PTO/FRONT
4
BOLT,S/M10X25/7T
5
COLLAR/31X38X41
6
BEARING,RB/6206SS
7
RING,SNAP/R62
8
SHAFT/PTO/MID
9
WASHER/30X45X2
10
KEY/08X07X20
11
PULLEY/V2B155
12
WASHER
13
WASHER,SP/M16
14
V305-260-016-00
15
PIN/TENSION
16
WASHER,SP/M12
17
V411-260-012-00
18
ARM/TENSION ASSY
19
BUSH/15X17X11
20
PULLEY/FT80X47
21
Sicherungsring 15x1
22
SPRING/HT032
23
WASHER
24
Sicherungsring 15x1
25
3695-303-003-00
26
BAR/PTO COMP
27
BOLT,SP/M10X20
28
V203-361-003-50
29
WASHER,SP/M10
30
V411-260-010-00
31
LEVER/PTO COMP
32
GRIP/PTO
33
V411-260-010-00
34
PIN,SPLIT/2.5X20
35
1728-334-810-10
36
SPRING/HE138
37
WASHER,PL/M8
38
PIN,SPLIT/2.5X20
39
WASHER,PL/M8
40
PIN,SPLIT/2X20
41
PIN/TENSION
42
WASHER,SP/M12
43
V411-260-012-00
44
ARM/PTOBRAKE ASSY
45
BUSH/15X17X11
46
SPRING/HT033
47
WASHER
48
Sicherungsring 15x1
49
Bremsklotz
50
V301-260-006-00
51
V401-160-006-00
52
BOLT/M8X45/7T
53
NUT/M8
54
1518-785-514-00
55
BOLT,SEMS/M10X20,7T
56
V411-260-010-00
57
BAND,WIRE/140
