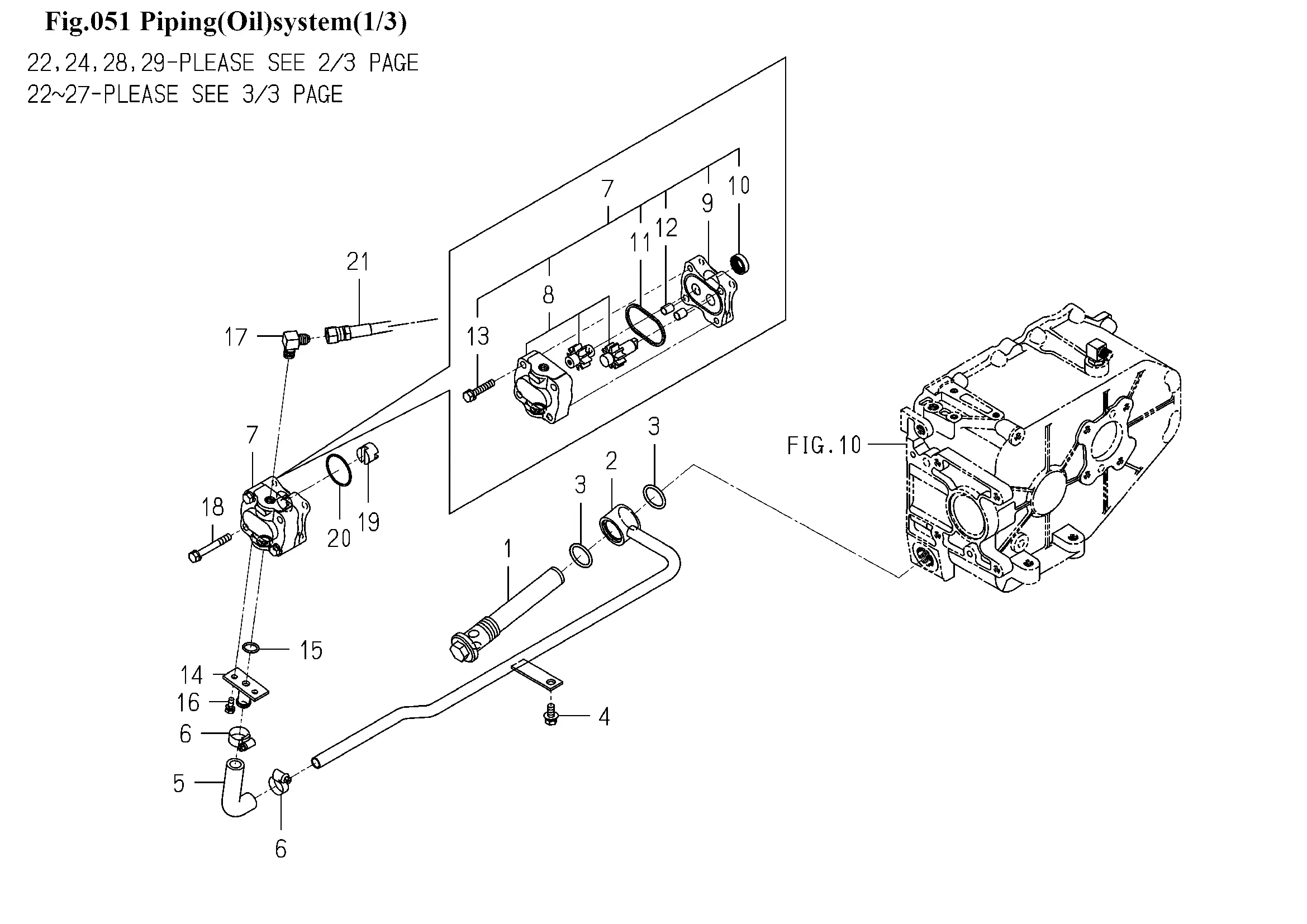

Hydraulikleitungen, -Filter
Ersatzteile (62 Teile)
1
1738-508-210-10
2
PIPE/SUCTION COMP
3
O-RING/1A,P28
4
BOLT,SP/M8X20
5
HOSE/14X22X82
6
J061-114-024-00
7
PUMP/GEAR ASSY
8
PUMP/GEAR SET
9
K130-003-003-00
10
SEAL,OIL/TC15257
11
O-RING/1A,S56
12
KNOK
13
V211-260-804-00
14
SUCTION/OUT COMP
15
O-RING/1A,P16
16
V210-260-601-60
17
ADAPTER/L/G1/4XR1/4
18
V211-260-806-00
19
CONNECTOR
20
O-RING/1A,S40
21
1728-508-310-10
22
1728-508-280-10
23
PLUG(PF1/4)
24
1728-508-720-00
24A
1728-508-720-10
25
V210-360-603-50
26
V210-360-602-00
27
V301-260-006-00
28
ADAPTER/L/G1/4 ASSY
29
O-RING/1B,P11
30
ADAPTER/L/G1/4 ASSY
31
O-RING/1B,P11
32
ADAPTER/G1/4 ASSY
33
O-RING/1B,P11
34
BOLT,S/M10X25/7T
35
LEVER/125 COMP
36
LEVER/VALVE/MID COMP
37
LEVER/VALVE/SID COMP
38
GRIP/SUB
39
TUBE/015
40
1728-508-001-10
41
V411-260-005-00
42
PIN/SNAP
43
PIN/05X17
44
V411-260-005-00
45
PIN/SNAP
46
1728-508-320-20
47
1728-508-310-10
48
1728-508-350-00
49
HOSE/325 ASSY
50
FILTER/RETURN ASSY
51
Hydraulikfilter
52
BOLT,SP/M8X16
53
ADAPTOR/G3/8XM16ASSY
54
O-RING/1B,P14
55
ADAPTER/G3/8 ASSY
56
O-RING/1B,P14
57
1728-508-410-10
58
1728-508-420-10
59
ADAPTER/M16XG1/4 CP
60
BOLT,S/M10X20
61
1342-402-006-00
