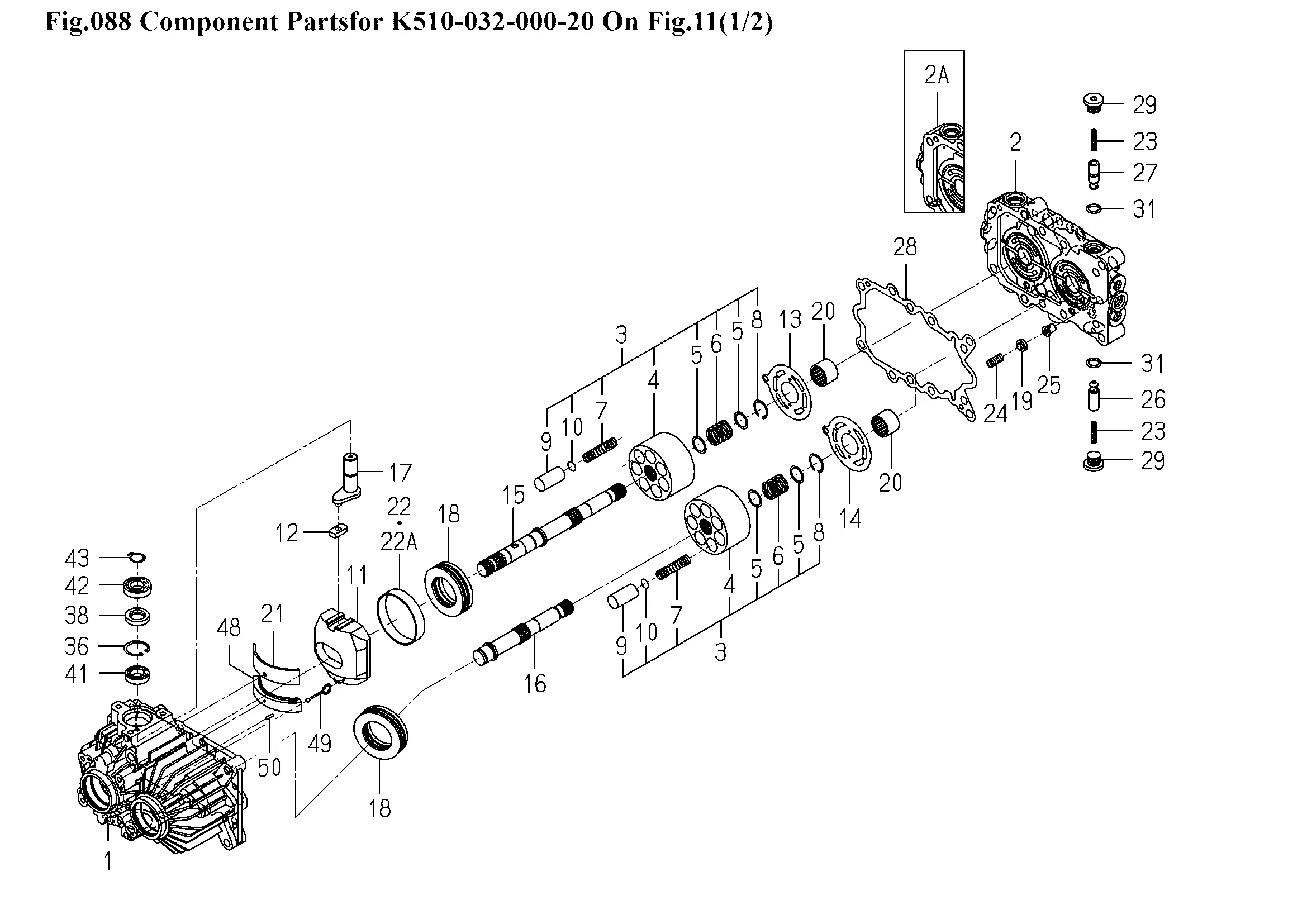

Einzelteile Hydrostat K510-032-000-120
Ersatzteile (65 Teile)
1
K510-032-001-00
2
K510-032-004-00
2A
K510-032-004-10
3
BLOCK/CYLINDER/HMS1
4
K510-021-301-00
5
K510-021-302-00
6
K510-021-303-00
7
K510-021-304-00
8
K510-021-305-00
9
K510-021-306-00
10
SHIM/1.0
11
K510-017-006-00
12
K510-001-007-00
13
PLATE/VALVE/PUMP
14
PLATE/VALVE/MOTOR
15
K510-032-012-00
16
K510-021-013-00
17
K510-018-014-00
18
BEARING/THRUST
19
K510-026-037-00
20
K510-021-016-10
21
BUSH/95X100X22
22
BUSH/68X71X14
22A
K510-032-018-00
23
SPRING/HC030
24
SPRING/HC021
25
K510-003-022-00
26
K510-026-023-00
27
K510-032-024-00
28
GASKET
29
PLUG(G3/8)
30
PLUG(PF1/4)
31
O-RING/1B,P14
32
O-RING/1B,P11
33
PLUG/SCREW/SEAL
34
V600-110-620-40
35
RING,SNAP/47 C
36
RING,SNAP/30 C
37
SEAL/OIL
38
SEAL/OIL
39
SEAL,OIL/TC20477
40
SEAL/47
40A
1564-201-003-00
41
K510-017-047-00
42
K510-017-048-00
43
RING,SNAP/17 C
44
CAP,BLANK/30
45
K510-001-036-00
46
V220-541-003-50
47
RING,SNAP/20 C
48
BEARING/NEEDLE
49
K510-003-500-00
50
V523-100-301-00
51
K510-032-100-00
51A
K510-032-100-10
51B
K510-032-100-20
52
O-RING/1B,P12
53
RING/BACK UP
54
O-RING/1B,P18
55
SPOOL
56
PLUG/M12X1.25
57
SPRING/HC023
58
O-RING
59
O-RING/1B,P10
60
PLUG/SCREW/SEAL
