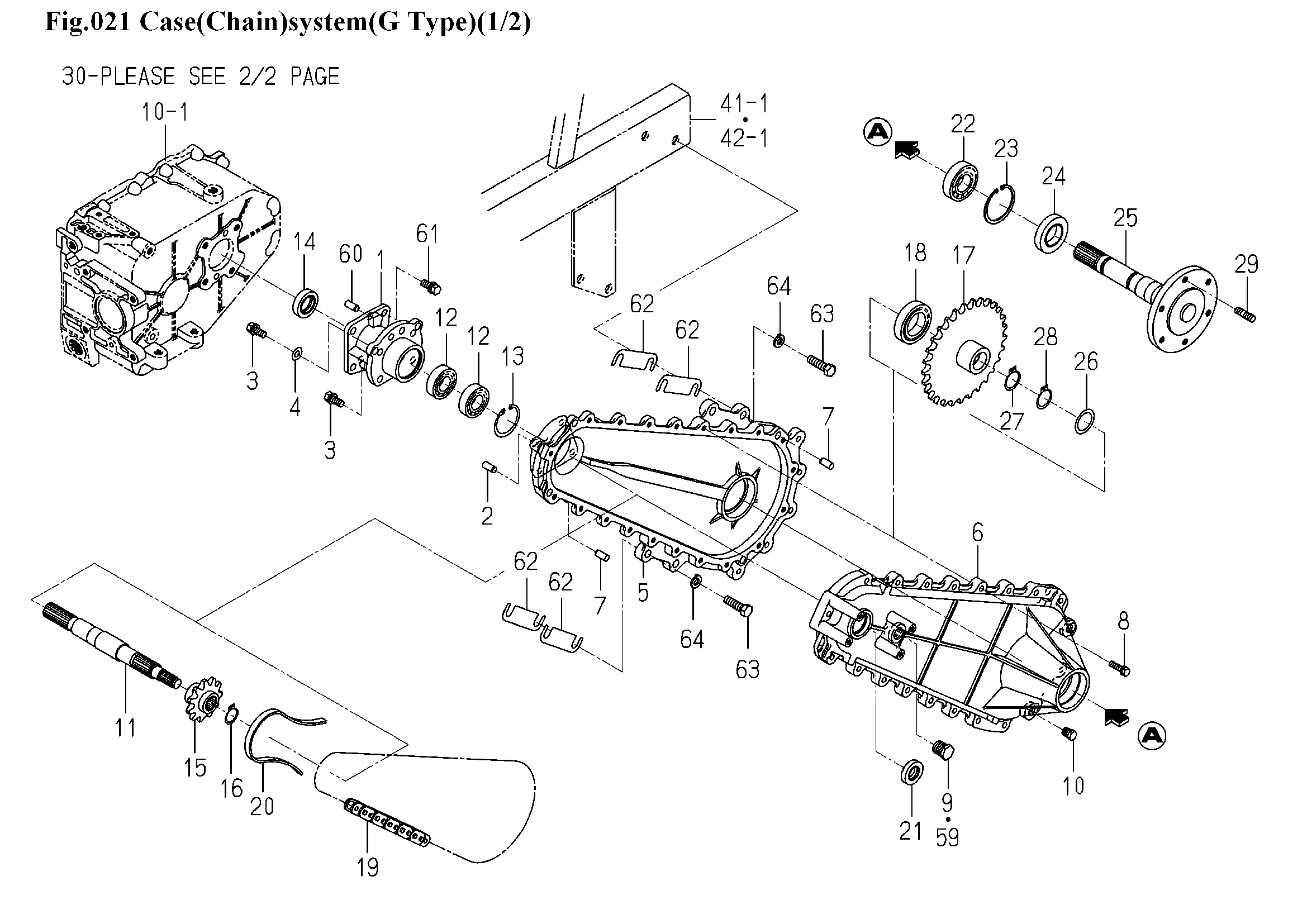

Antrieb Hinterachse
Ersatzteile (64 Teile)
1
CASE/SPACER
2
PIN,ST,B/10X22
3
BOLT,S/M10X25/7T
4
V411-260-010-00
5
CASE/CHAIN/A
6
Abschlussdeckel, beidseitige Bremse
7
PIN,ST,B/10X22
8
V211-560-803-00
9
PLUG/SCREW/SEAL
10
PLUG/SCREW/SEAL
11
Welle
12
Kugellager -> siehe V600-110-620-50
13
RING,SNAP/52 C
14
SEAL,OIL/TC284511
15
SPROCKET/11
16
RING,SNAP/25 C
17
1728-307-025-00
18
1728-307-028-00
19
ROLLERCHAIN
20
1728-307-026-10
21
SEAL,OIL/TC20408
22
1725-434-062-00
23
RING/SNAP/R62
24
SEAL/OIL
25
1728-307-420-00
26
1728-307-027-00
27
RING,SNAP/30 C
28
RING,SNAP/30 C
29
STUD/M10X20/7T
30
CASE/SPACER
31
PIN,ST,B/10X22
32
BOLT,S/M10X25/7T
33
V411-260-010-00
34
CASE/CHAIN/A
35
Abschlussdeckel, beidseitige Bremse
36
PIN,ST,B/10X22
37
V211-560-803-00
38
PLUG/SCREW/SEAL
39
PLUG/SCREW/SEAL
40
Welle
41
Kugellager -> siehe V600-110-620-50
42
RING,SNAP/52 C
43
SEAL,OIL/TC284511
44
SPROCKET/11
45
RING,SNAP/25 C
46
1728-307-025-00
47
1728-307-028-00
48
ROLLERCHAIN
49
1728-307-026-10
50
SEAL,OIL/TC20408
51
1725-434-062-00
52
RING/SNAP/R62
53
SEAL/OIL
54
1728-307-420-00
55
1728-307-027-00
56
RING,SNAP/30 C
57
RING,SNAP/30 C
58
STUD/M10X20/7T
59
PLUG/SCREW/SEAL
60
PIN,ST,B/10X22
61
BOLT,S/M10X25/7T
62
1728-306-005-10
63
BOLT/M12X40/7T
64
WASHER,SP/M12
