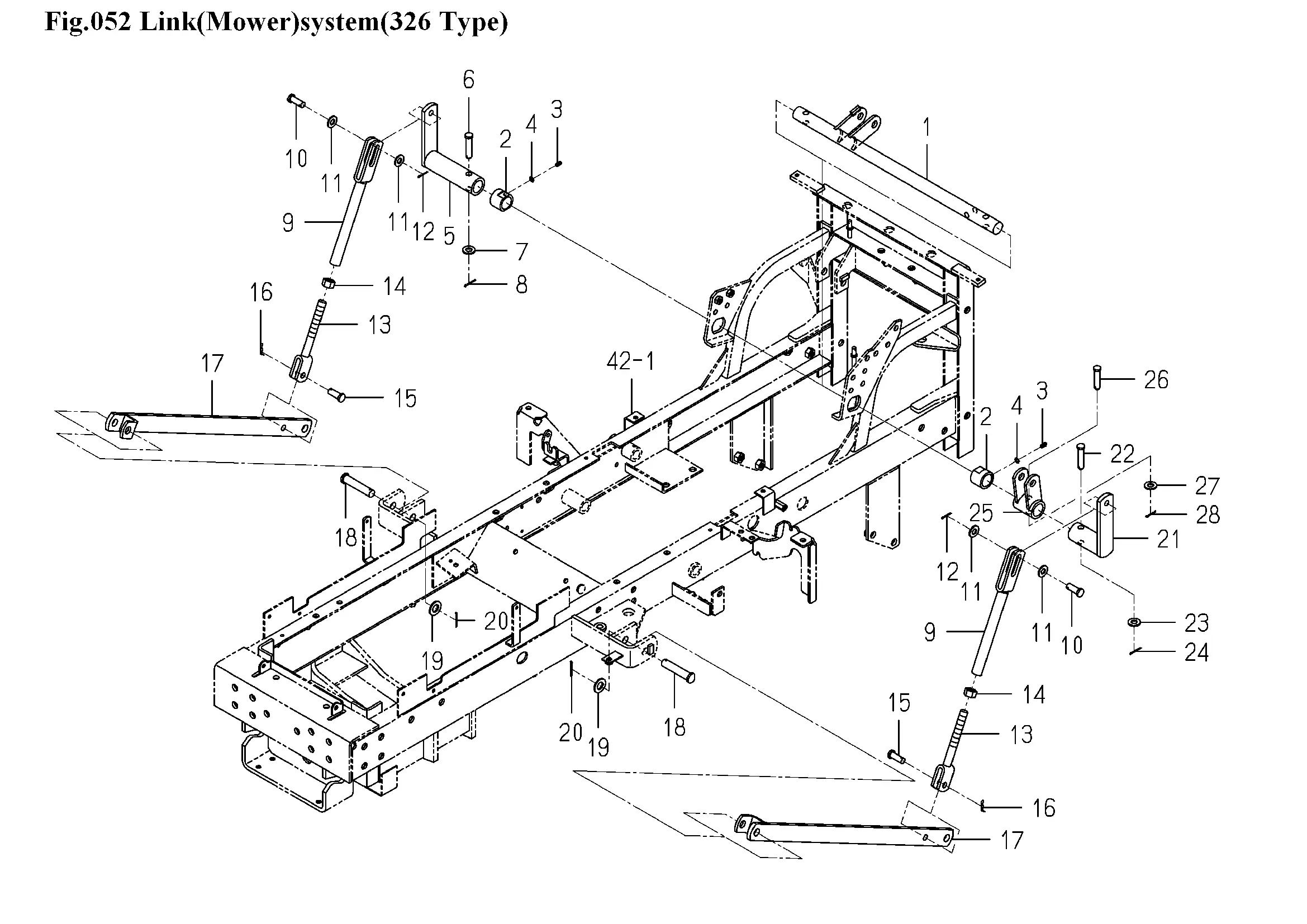

Aushebung, Mähwerk
Ersatzteile (28 Teile)
1
SHAFT/LIFT COMP
2
1728-553-012-10
3
NIPPLE,GREASE
4
V401-160-006-00
5
ARM/LIFT COMP
6
PIN/12X48
7
V411-260-012-00
8
PIN,SPLIT/3X25
9
LINK/UPPER COMP
10
PIN/12X33
11
V411-260-012-00
12
V500-163-002-00
13
LINK/LOWER COMP
14
NUT/M16
15
PIN/12X33
16
PIN/SNAP/B
17
ARM/MID/326 COMP
18
PIN/16X78
19
V411-260-016-00
20
V500-163-003-00
21
ARM/LIFT/LH COMP
22
PIN/12X48
23
V411-260-012-00
24
PIN,SPLIT/3X25
25
ARM/ADJUST COMP
26
PIN/12X44
27
V411-260-012-00
28
V500-163-002-00
