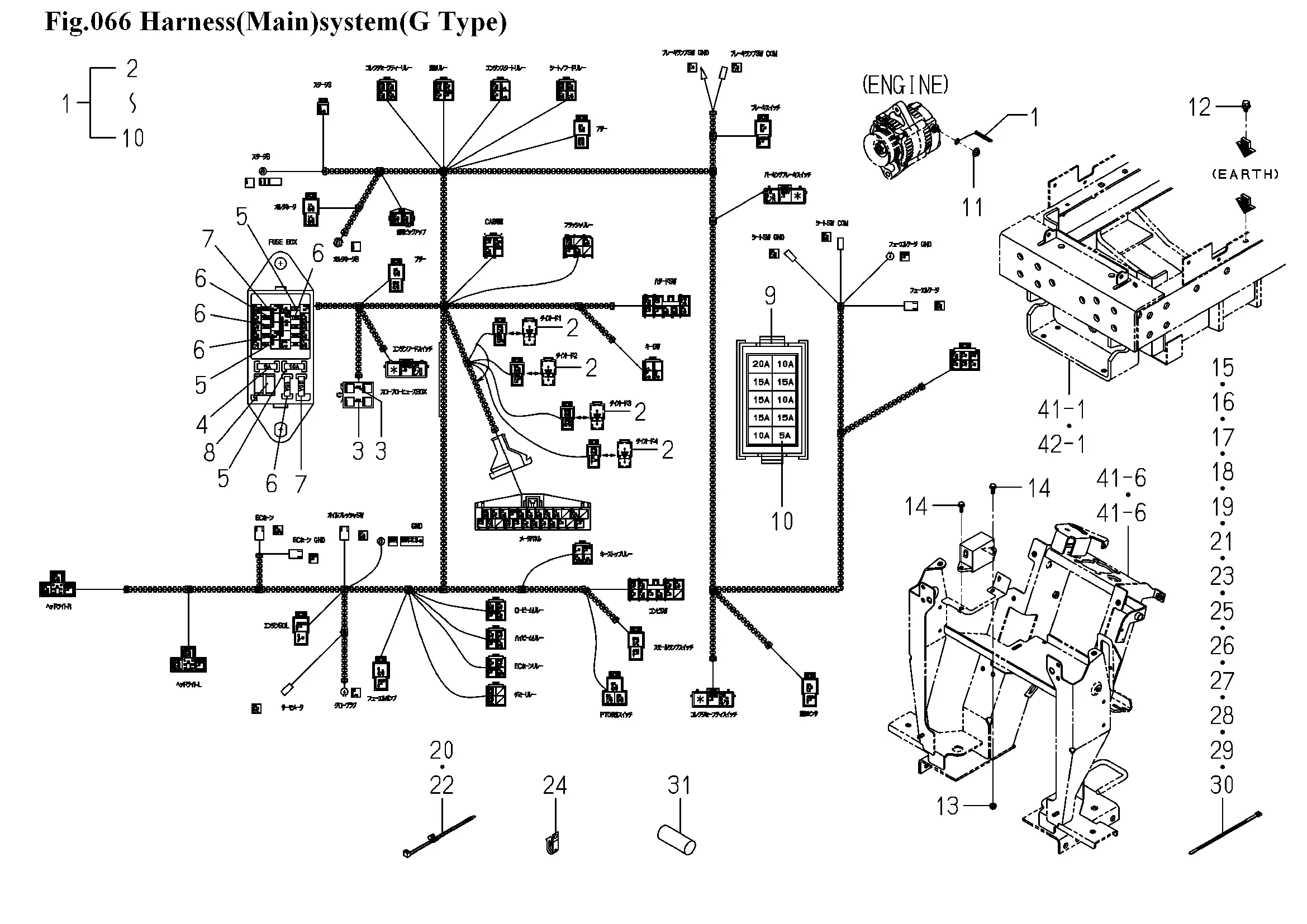

Kabelbaum, Relais
Ersatzteile (31 Teile)
1
HARNESS/MAIN/G ASSY
2
DIODE/3A
3
FUSE/SLOW BLOW/40A
4
FUSE/BLADE/32V05A
5
FUSE/BLADE/32V10A
6
FUSE/BLADE/32V15A
7
FUSE/BLADE/32V20A
8
TOOL/FUSE
9
COVER/FUSEBOX
10
LABEL/FUSE/G
11
NUT/WASHER/M6
12
BOLT,SP/M8X16
13
NUT/WASHER/M6
14
FLANGEBOLT/M6X16
15
BAND,WIRE/140
16
1342-402-006-00
17
1342-402-006-00
18
1342-402-006-00
19
BAND,WIRE/140
20
1560-666-004-00
21
BAND,WIRE/140
22
1560-666-004-00
23
BAND,WIRE/140
24
HOLDER/JE/9-9
25
BAND,WIRE/140
26
BAND,WIRE/140
27
BAND,WIRE/140
28
BAND,WIRE/140
29
BAND,WIRE/140
30
BAND,WIRE/140
31
1782-690-051-10
