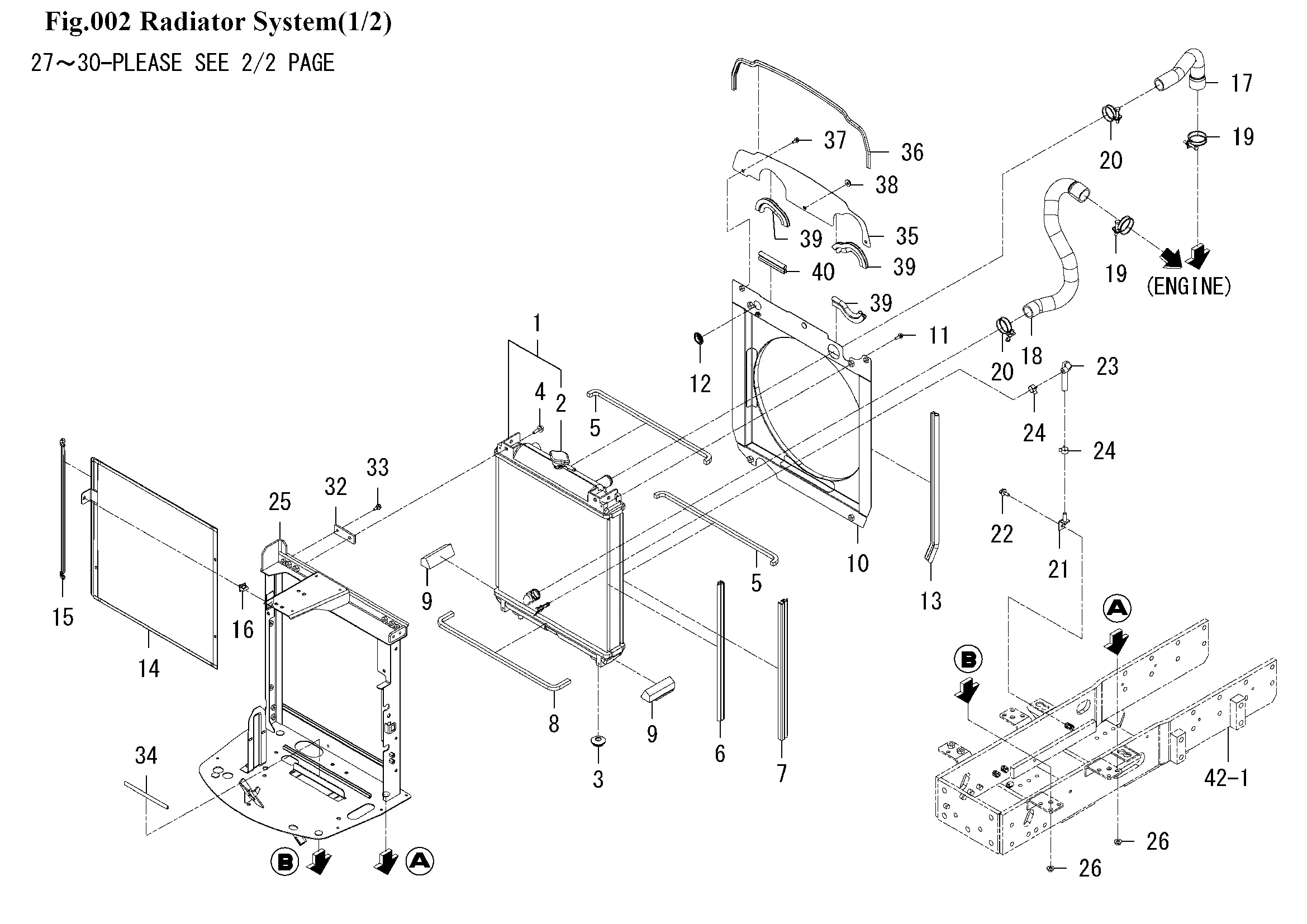

Kühler
Ersatzteile (61 Teile)
1
RADIATOR ASSY
2
CAP
3
BUSH,LEVER
4
1746-803-003-00
5
INSULATOR/10X10X450
6
INSULATOR/425
7
INSULATOR/425
8
1734-102-011-20
9
1729-604-006-10
10
1815-102-610-20
11
1746-804-002-00
12
3670-272-001-00
13
TRIM/470
14
NET COMP
15
PAD/470
16
LATCH ASSY
17
1815-102-051-00
18
1815-102-052-00
19
CLAMP/WIRE/36-44
20
J061-230-038-00
21
1817-102-320-00
22
BOLT,SP/M8X20
23
1724-102-003-00
24
CLIP/HOSE/14.7-15.9
25
1815-102-620-20
26
1746-816-001-00
27
1792-102-071-00
28
2512-601-016-00
29
INSULATOR/140
30
1822-102-003-00
31
TRIM/130
32
1801-102-071-00
33
BOLT/SP
34
3801-671-003-00
35
1848-102-003-10
36
INSULATOR/690
37
1746-804-001-00
38
NUT/WASHER
39
INSULATOR/140
40
TRIM/90
41
1817-102-310-10
42
WASHER,PL/M8
43
1746-817-001-00
44
3673-641-004-00
45
1848-102-005-00
46
WASHER,PL/M8
47
PIN/SNAP
48
1798-102-730-00
49
CAP
50
PACKING
51
1690-102-214-00
52
1798-102-741-00
53
1690-102-216-00
54
1798-102-742-00
55
BAND,WIRE/140
56
1848-102-270-00
57
1792-102-270-10
58
TUBE/07X09X30
59
1815-802-001-00
60
1848-102-280-10
61
1746-804-003-00
