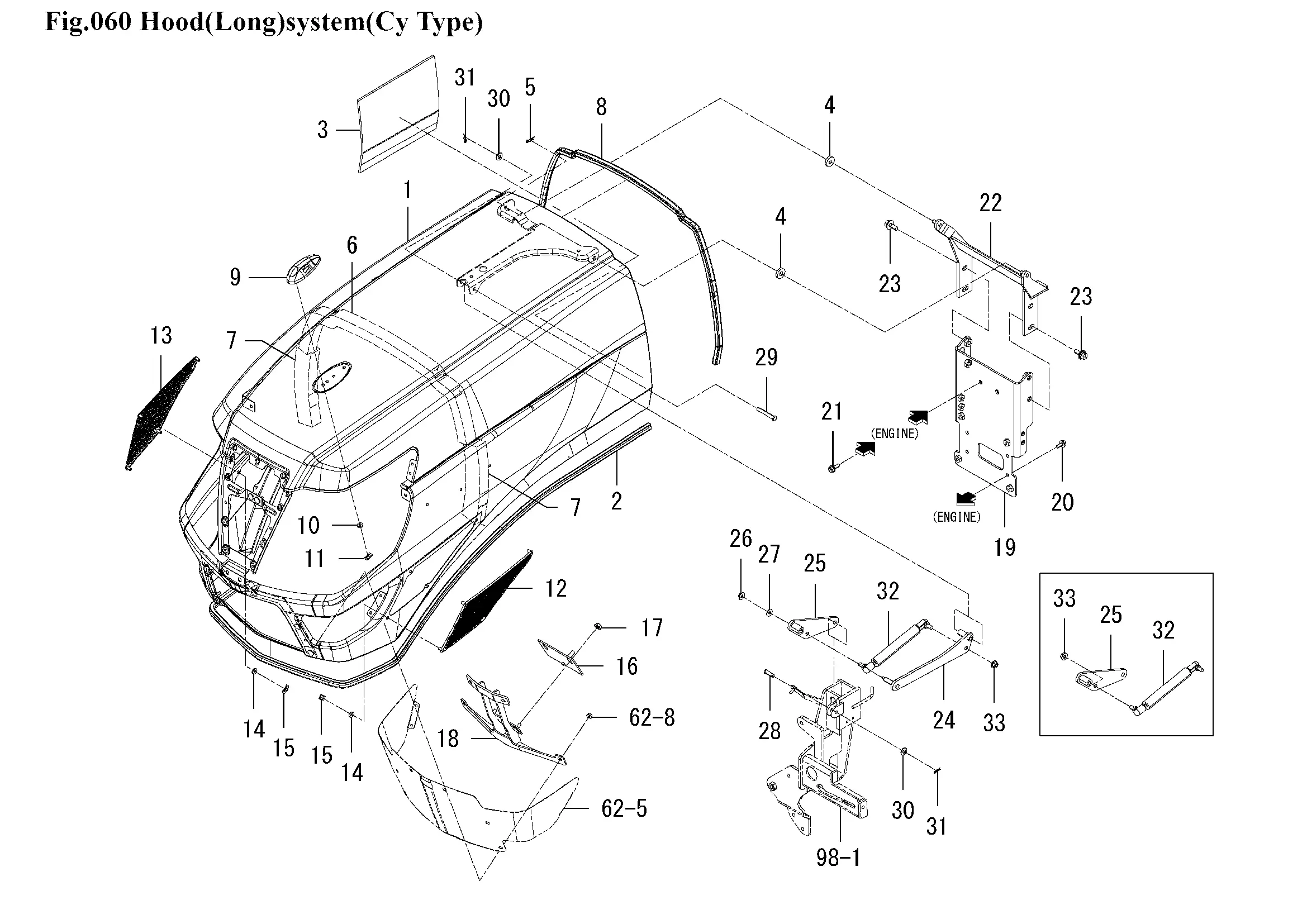

Motorhaube
Ersatzteile (33 Teile)
1
1794-601-750-41
2
INSULATOR/2510
3
INSULATOR/200X250
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
1801-601-001-10
7
INSULRATOR/30X45X260
8
INSULATOR/HOOD
9
ORNAMENT
10
WASHER/6X14X3
11
NUT,SPEED/M6
12
NET/LH
13
NET/RH
14
WASHER/6X14X3
15
NUT,SPEED/M6
16
1792-601-800-00
17
1746-816-001-00
18
1799-601-710-10
19
1848-601-230-20
20
FLANGEBOLT/M8X16
21
V231-360-802-00
22
1848-601-250-00
23
BOLT,SP/M10X25/7T
24
STAY/HOOD/UPPER COMP
25
STAY/HOOD/LOWER COMP
26
NUT,WASHER/M6
27
1146-601-002-00
28
PIN/08X25
29
1750-312-054-10
30
WASHER,PL/M8
31
PIN/SNAP
32
DAMPER/HOOD ASSY
33
Kombimutter-M8
