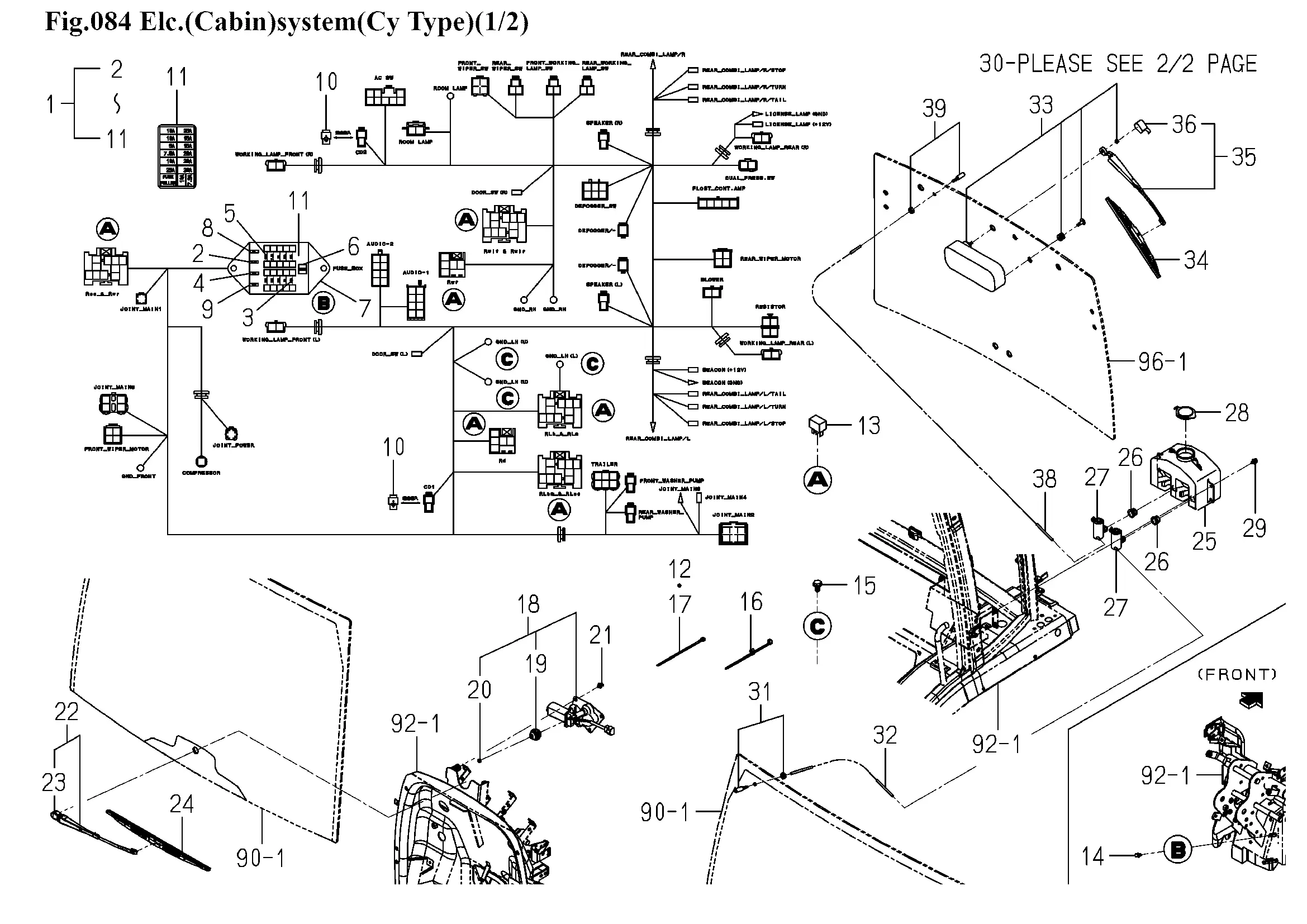

Elektrik, Kabine oben
Ersatzteile (84 Teile)
1
1815-658-300-10
2
FUSE/BLADE/32V7.5A
3
FUSE/BLADE/32V20A
4
FUSE/BLADE/32V10A
5
FUSE,BLADE/32
6
TOOL/FUSE
7
COVER/FUSEBOX
8
FUSE/BLADE/32V05A
9
FUSE/BLADE/32V15A
10
DIODE/3A
11
1815-658-302-00
12
BAND,WIRE/140
13
RELAY/5P ASSY
14
BOLT,SP/M6X16
15
FLANGEBOLT/M6X12
16
1560-666-004-00
17
1342-402-006-00
18
MOTOR/WIPER/175 ASSY
19
GROMMET
20
V301-260-006-00
21
BOLT/M6X16X16
22
ARM/WIPER/350 ASSY
23
1696-658-301-00
24
BLADE/WIPER/450 ASSY
25
TANK/WASHER/2M
26
GROMMET/W/T
27
PUMP/W/T
28
CAP/TANK/WASHER
29
BOLT/M6X16X16
30
Intervallschalter,
31
Nozzle Washer Assy
32
1729-658-002-00
33
Motor, Wiper 115 Assy
34
Blade Wiper 300 Assy
35
Arm Wiper 300 Assy
36
COVER/HEAD
37
Switch Wiper Assy
38
1690-658-003-00
39
Nozzle Washer Assy
40
LAMP/WORKING/LE ASSY
41
1815-658-002-00
42
1848-658-003-00
43
FLANGEBOLT/M8X55
44
Kombimutter-M8
45
V231-360-801-20
46
FLANGEBOLT/M8X16
47
Kombimutter-M8
48
REAR DIFF SWITCH
49
DIFF LOSTING MARK
50
1711-666-052-10
51
1711-666-053-10
52
1800-658-001-00
53
1801-658-001-00
54
BOLT/M6X16X16
55
COVER/AUDIO/E4
56
1729-705-008-00
57
1801-658-003-00
58
SPEAKER ASSY
59
COVER/SPEAKER
60
V111-174-001-60
61
V360-260-004-00
62
ANTENNA ASSY
63
ANTENNA
64
1719-658-363-00
65
1719-658-364-00
66
1719-658-365-00
67
1719-658-366-00
68
1719-658-367-00
69
V301-260-005-00
70
LAMP/ROOM ASSY
71
1792-658-301-00
72
1792-658-302-00
73
1792-658-310-20
74
SCREW,SP/M5X20
75
FLANGEBOLT/M6X10
76
SWITCH/DOOR ASSY
77
NUT/M10
78
1792-658-004-00
79
RIVET/PUSH/07
80
CLAMP,WINKER B
81
1815-658-003-00
82
RIVET/PUSH/07
83
SWITCH/MOMENTARY/O/S
84
1848-658-005-00
