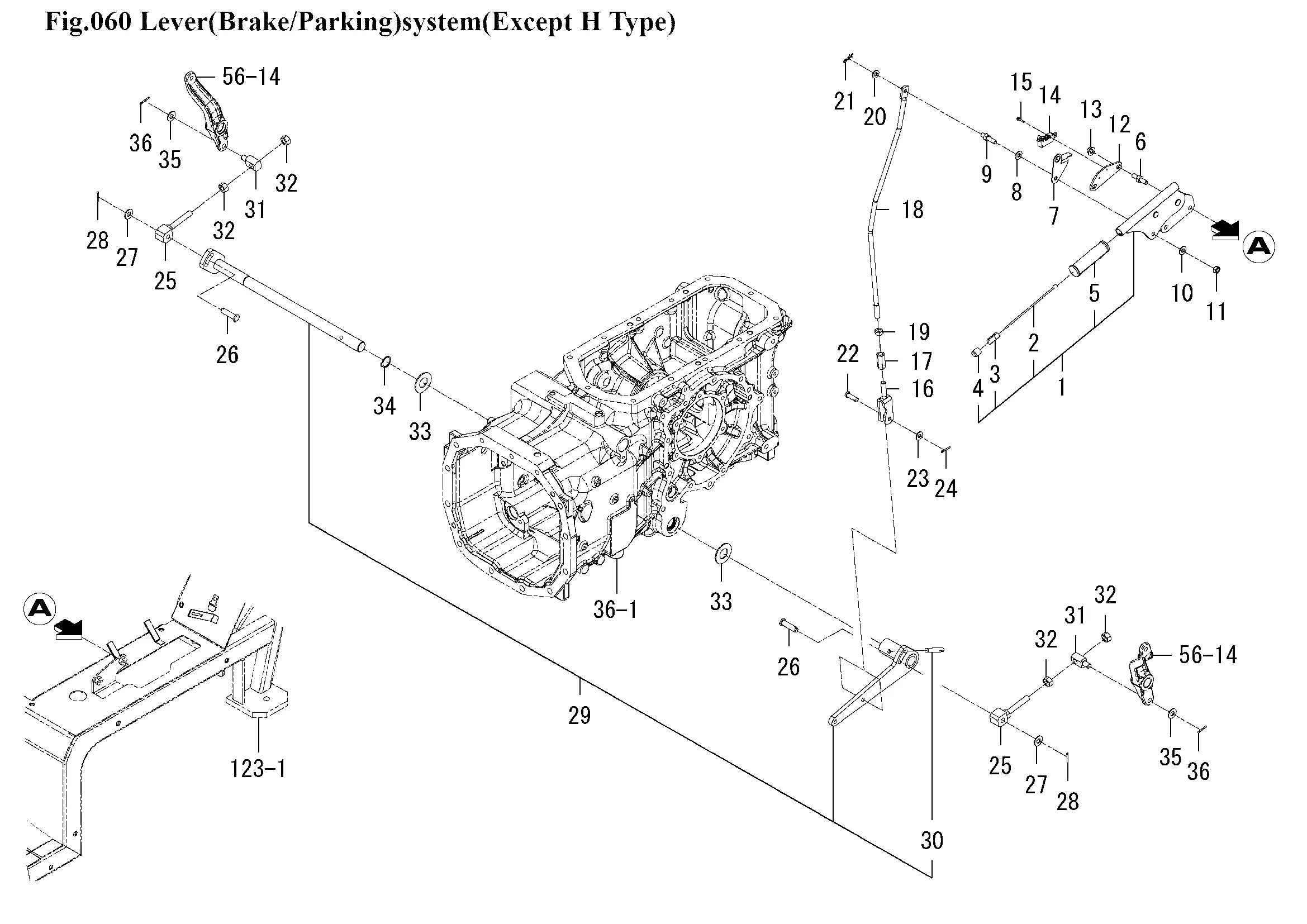

Bremse
Ersatzteile (36 Teile)
1
1740-313-300-10
2
ROD
3
SPRING
4
BUTTON
5
GRIP/ORANGE
6
1815-313-061-00
7
1815-313-062-00
8
WASHER,PL/M8
9
1815-313-064-10
10
WASHER,PL/M8
11
1719-312-001-00
12
1815-313-063-00
13
Kombimutter-M8
14
SWITCH/LIMIT ASSY
15
SCREW,SP/M3X16
16
1815-313-600-00
17
1843-313-002-00
18
1816-313-071-10
19
V304-460-010-00
20
WASHER,PL/M8
21
PIN/SNAP/B
22
PIN/08X26
23
WASHER,PL/M8
24
PIN,SPLIT/2.5X20
25
1815-313-540-00
26
1817-310-013-00
27
V411-260-010-00
28
PIN,SPLIT/2.5X20
29
1815-313-500-10
30
PIN,TAPER/8X50
31
1815-313-044-10
32
NUT/M12
33
1815-313-043-00
34
RING,SNAP/22 C
35
V411-260-010-00
36
PIN,SPLIT/2.5X20
