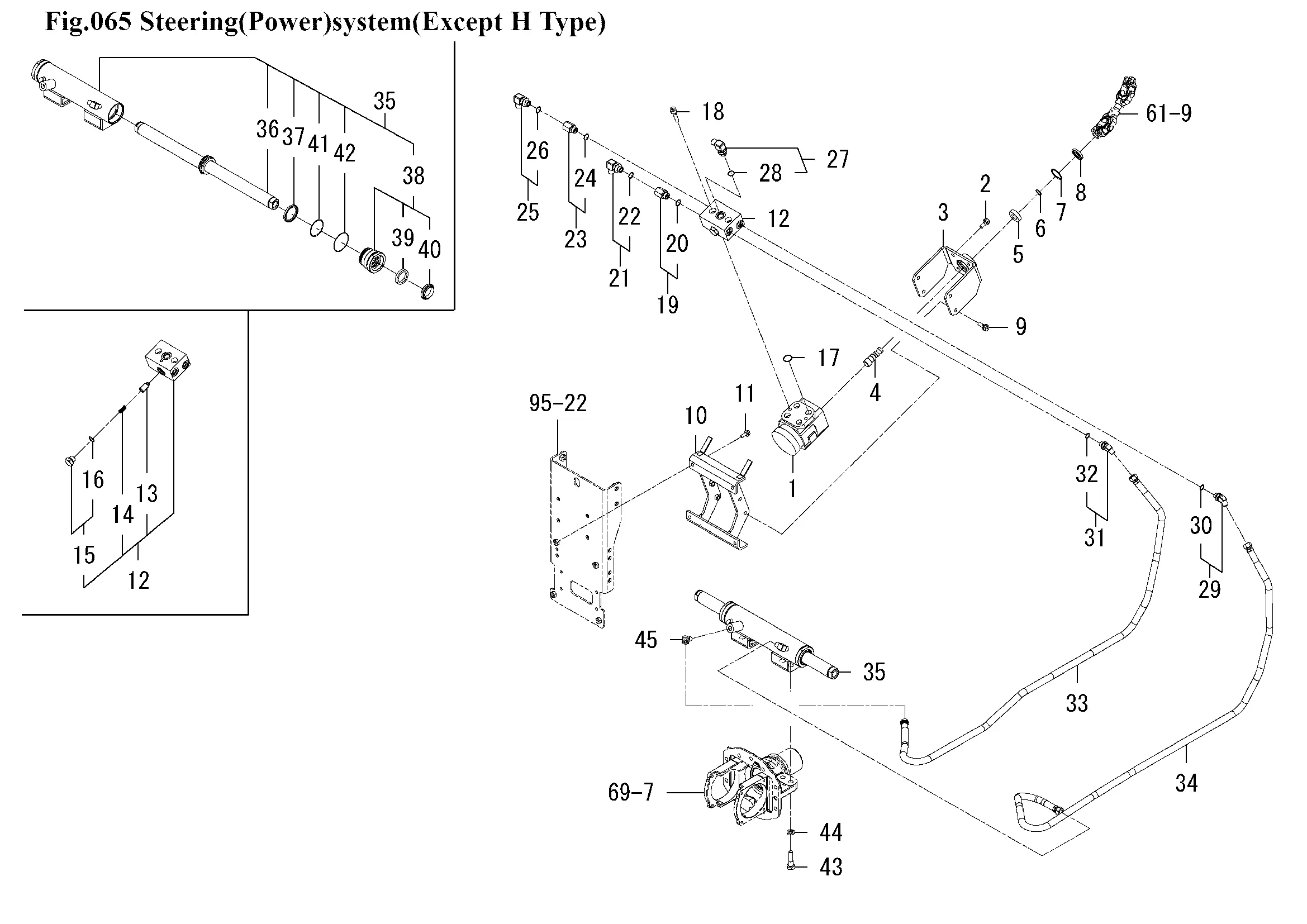

Lenkzylinder
Ersatzteile (45 Teile)
1
1646-407-670-20
2
BOLT,S/M10X20/7T
3
1815-407-610-10
4
SHAFT
5
1848-407-001-00
6
RING,SNAP/17 C
7
RING,SNAP/35 C
8
SEAL,OIL/VC17355
9
BOLT,S/M10X25/7T
10
1816-407-600-00
11
V231-360-802-00
12
VALVE/RELIEF ASSY
13
K220-002-002-00
14
SPRING/HC024
15
PLUG/G3/8 ASSY
16
O-RING/1B,P14
17
O-RING/1B,P20
18
V220-541-004-00
19
ADAPTER/G3/8 ASSY
20
O-RING/1B,P14
21
ADAPTER/L/G3/8 ASSY
22
O-RING/1B,P14
23
ADAPTER/G3/8 ASSY
24
O-RING/1B,P14
25
ADAPTER/L/G3/8 ASSY
26
O-RING/1B,P14
27
ADAPTER/L/G3/8 ASSY
28
O-RING/1B,P14
29
ELBOW/45DEG ASSY
30
O-RING/1B,P11
31
ELBOW/45DEG ASSY
32
O-RING/1B,P11
33
1801-407-230-10
34
1802-407-200-20
35
K167-007-000-20
36
ROD/PISTON COMP
37
PACKING/PISTON
38
COVER/ROD SET
39
PACKING/ROD
40
SEAL/DUST
41
O-RING/1B,P44
42
O-RING/1A,S53
43
1763-410-006-10
44
WASHER,SP/M12
45
3631-350-201-20
