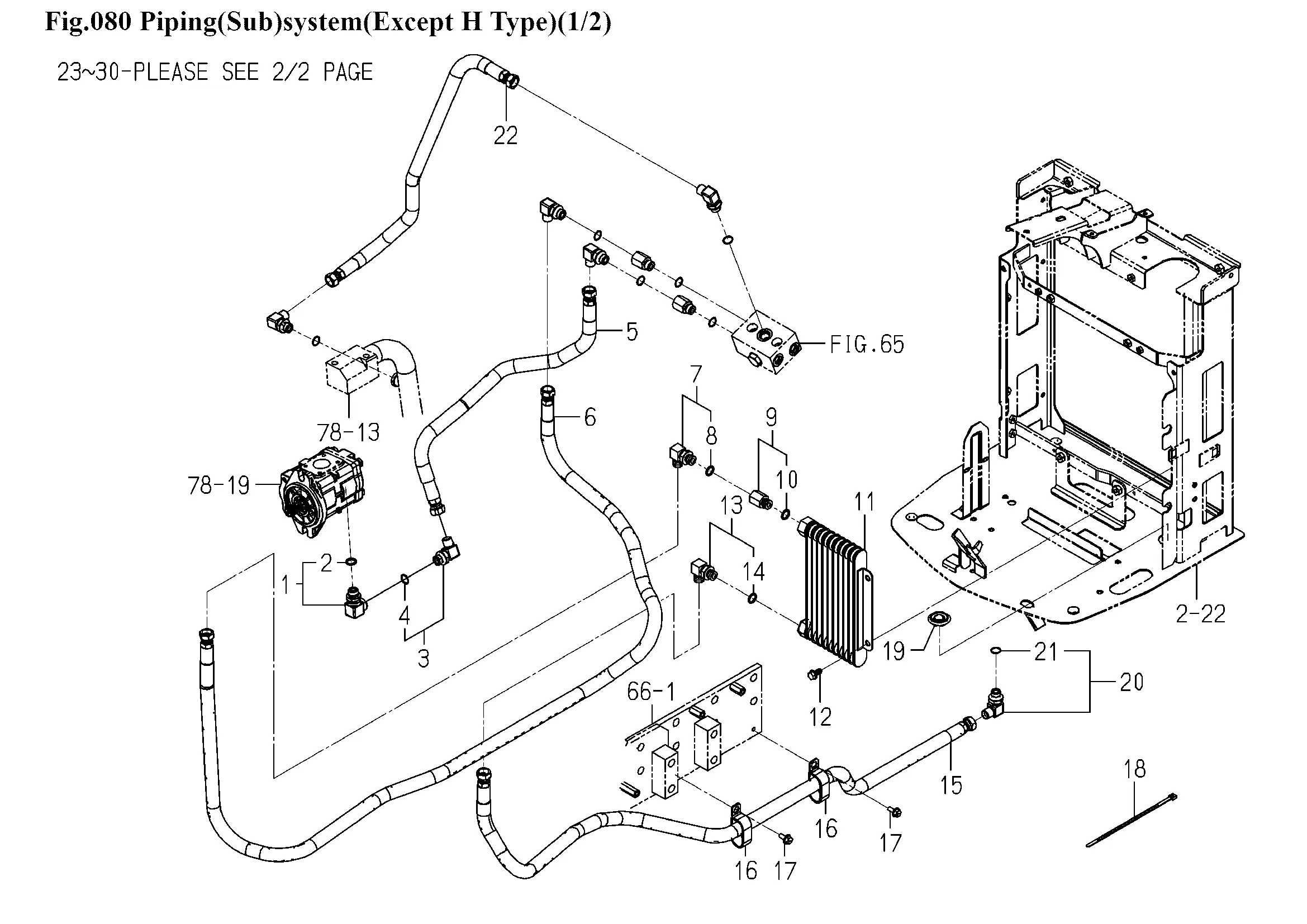

Hydraulikpumpe, Ölkühler
Ersatzteile (59 Teile)
1
1752-531-250-00
2
O-RING/1B,P14
3
ADAPTER/L/G3/8 ASSY
4
O-RING/1B,P14
5
1813-512-610-00
6
1802-509-220-10
7
ADAPTER/L/G3/8 ASSY
8
O-RING/1B,P14
9
ADAPTER/G3/8 ASSY
10
O-RING/1B,P14
11
COOLER/OIL ASSY
12
1746-804-003-00
13
ADAPTER/L/G3/8 ASSY
14
O-RING/1B,P14
15
HOSE/1300 ASSY
16
CLAMP/28X55
17
FLANGEBOLT/M8X16
18
1560-666-004-00
19
CAP/30
20
ADAPTER/L/G3/8 ASSY
21
O-RING/1B,P14
22
1848-512-220-00
23
1796-508-240-00
24
ADAPTER/PF1/4 ASSY
25
O-RING/1B,P11
26
1796-509-210-00
27
ADAPTER/L/PF1/4 ASSY
28
O-RING/1B,P11
29
VALVE/REVERSE/233/S/
30
VALVE/PRV/B ASSY
31
O-RING/1B,P20
32
O-RING/AS568/013
33
O-RING/AS568/014
34
O-RING/AS568/015
35
SOLENOID/HW/04/ SET
36
K200-231-201-00
37
SPRING/PLATE/03
38
V783-160-501-10
39
VALVE/CLUTCH PEDAL/2
40
SOLENOID/HW/01/ SET
41
K200-231-201-00
42
SPRING/PLATE/03
43
K200-099-002-00
44
O-RING/1B,P18
45
SPRING/HC020
46
GASKET/HVA1/097
47
BOLT/M8
48
V580-140-801-80
49
ADAPTER/G3/8 ASSY
50
O-RING/1B,P14
51
GASKET/REVERSE
52
1729-509-001-10
53
V211-260-804-50
54
V201-260-808-50
55
WASHER,SP/M8
56
SENSOR/PRESSURE ASSY
57
ORING/11
58
PLUG(PF1/4)
59
O-RING/1B,P11
