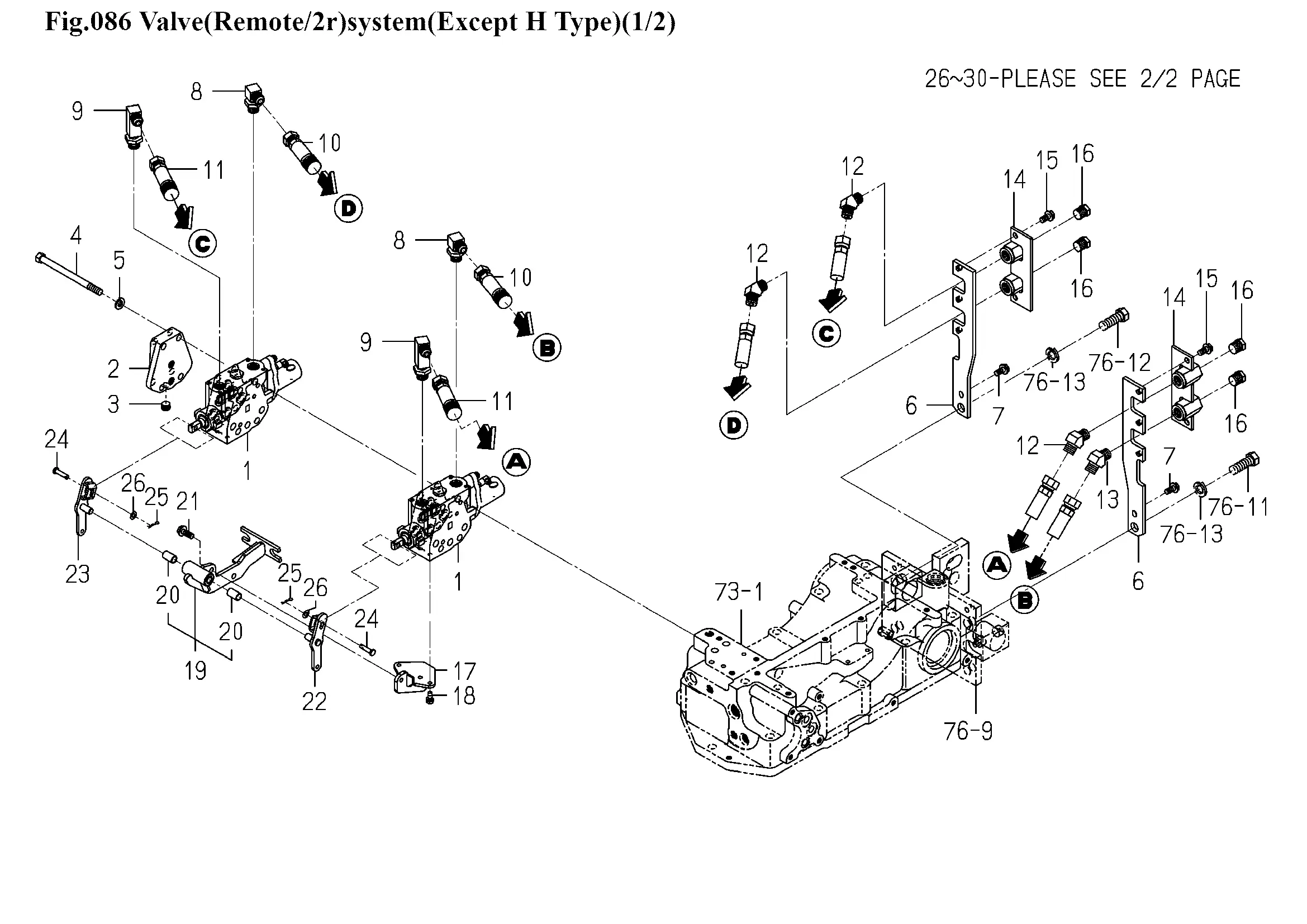

Zusatzsteuergerät
Ersatzteile (39 Teile)
1
VALVE/CONTROL/075/4
2
1792-511-002-00
3
PLUG/SCREW/SEAL
4
V201-261-013-00
5
WASHER,SP/M10
6
1742-512-001-20
7
FLANGEBOLT/M8X16
8
CONNECTOR
9
CONNECTOR/L
10
1744-512-250-20
11
1744-512-260-20
12
ADAPTER/45/R3/8XG3/
13
ADAPTER/R/G3/8
14
1815-512-310-00
15
FLANGEBOLT/M8X16
16
PLUG/SCREW/SEAL
17
1816-512-220-20
18
BOLT,S/M6X16/7T
19
1816-512-240-00
20
BUSH/10X12X20
21
V231-360-802-00
22
1816-512-200-10
23
1816-512-210-10
24
PIN/06X23
25
PIN/SNAP
26
V411-260-006-00
27
CABLE/FIRST ASSY
28
CABLE/SECOND ASSY
29
JOINT/BALL/M06
30
V301-260-006-00
31
NUT/FLANGE/M06
32
1342-402-006-00
33
BRACKET/LEVER COMP
34
FLANGEBOLT/M8X16
35
LEVER/SUBCON ASSY
36
BUSH/10X12X15
37
1815-512-001-10
38
1719-312-001-00
39
GRIP/THROTTLE
