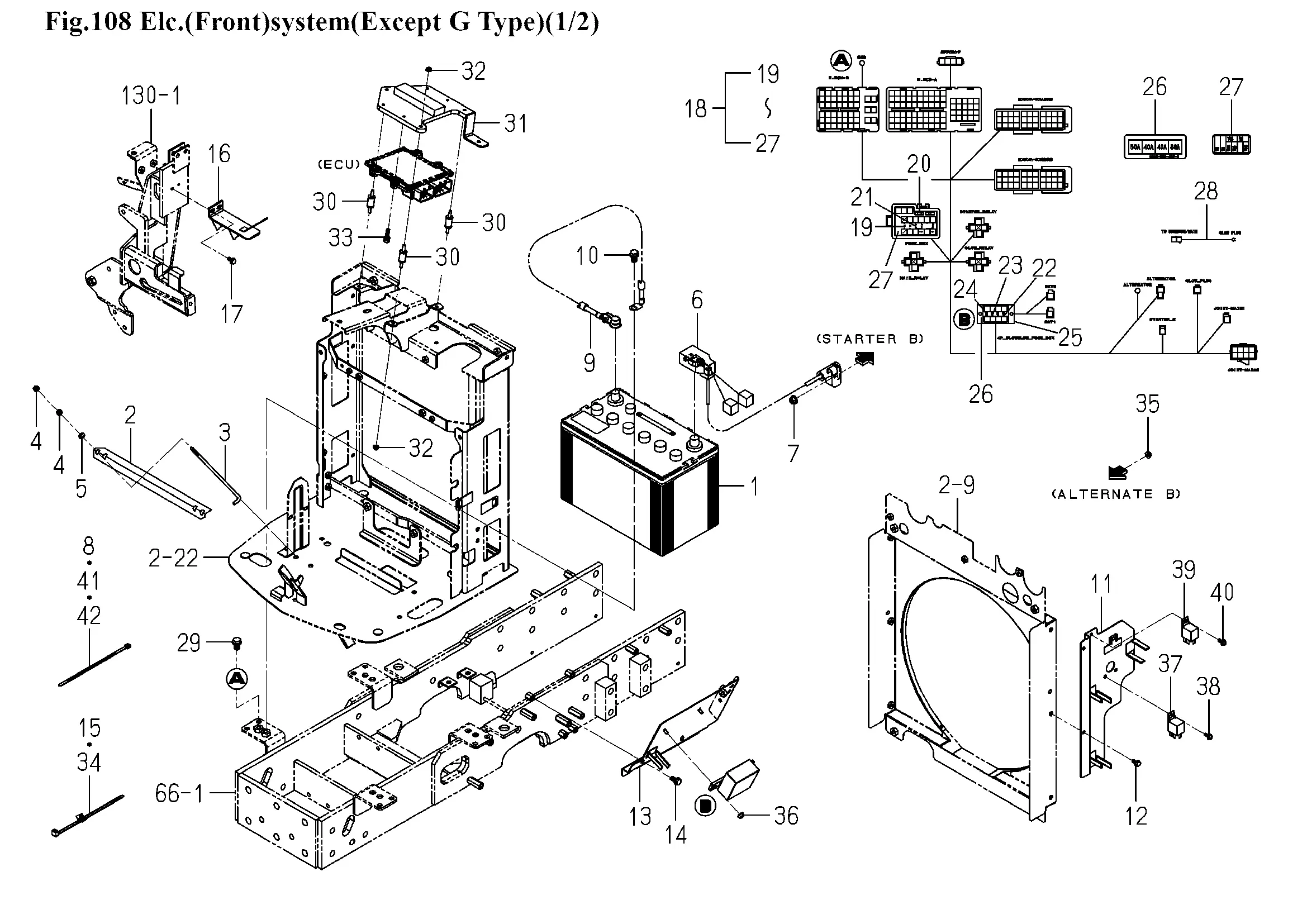

Batterie, Scheinwerfer
Ersatzteile (58 Teile)
1
BATTERY/115D31R ASSY
2
1422-687-001-10
3
BOLT/M6X250
4
1746-811-001-00
5
V411-260-006-00
6
1816-650-430-00
7
Kombimutter-M8
8
BAND,WIRE/140
9
1792-650-290-10
10
1815-804-001-00
11
1816-650-410-10
12
FLANGEBOLT/M6X12
13
1816-650-420-20
14
BOLT,SP/M8X16
15
1560-666-004-00
16
1816-650-440-10
17
FLANGEBOLT/M6X12
18
1816-650-400-00
19
FUSE/BLADE/32V05A
20
FUSE/BLADE/32V15A
21
FUSE/BLADE/32V30A
22
FUSE/SLOW BLOW/50A
23
FUSE/SLOW BLOW/40A
24
FUSE/SLOWBLOW/80A
25
COVER/FUSE
26
1816-650-402-00
27
1816-650-403-00
28
HARNESS,GLOW
29
1815-804-001-00
30
INSULATOR/ECU
31
1816-650-500-00
32
1848-815-001-00
33
BOLT/SP
34
1560-666-004-00
35
NUT/WASHER/M6
36
NUT/WASHER/M6
37
RELAY/35A ASSY
38
V120-365-001-60
39
RELAY/35A ASSY
40
V120-365-001-60
41
BAND,WIRE/140
42
1342-402-006-00
43
1817-650-450-00
44
V231-360-801-20
45
1815-650-210-10
46
BULB/12V60/55W
47
1815-650-220-10
48
BULB/12V60/55W
49
BOLT/SP
50
HARNESS/FOOD ASSY
51
1560-666-004-00
52
BAND,WIRE/140
53
1650-652-014-00
54
1342-402-006-00
55
1740-680-530-20
56
WASHER/6X14X3
57
1118-606-002-10
58
V411-260-006-00
