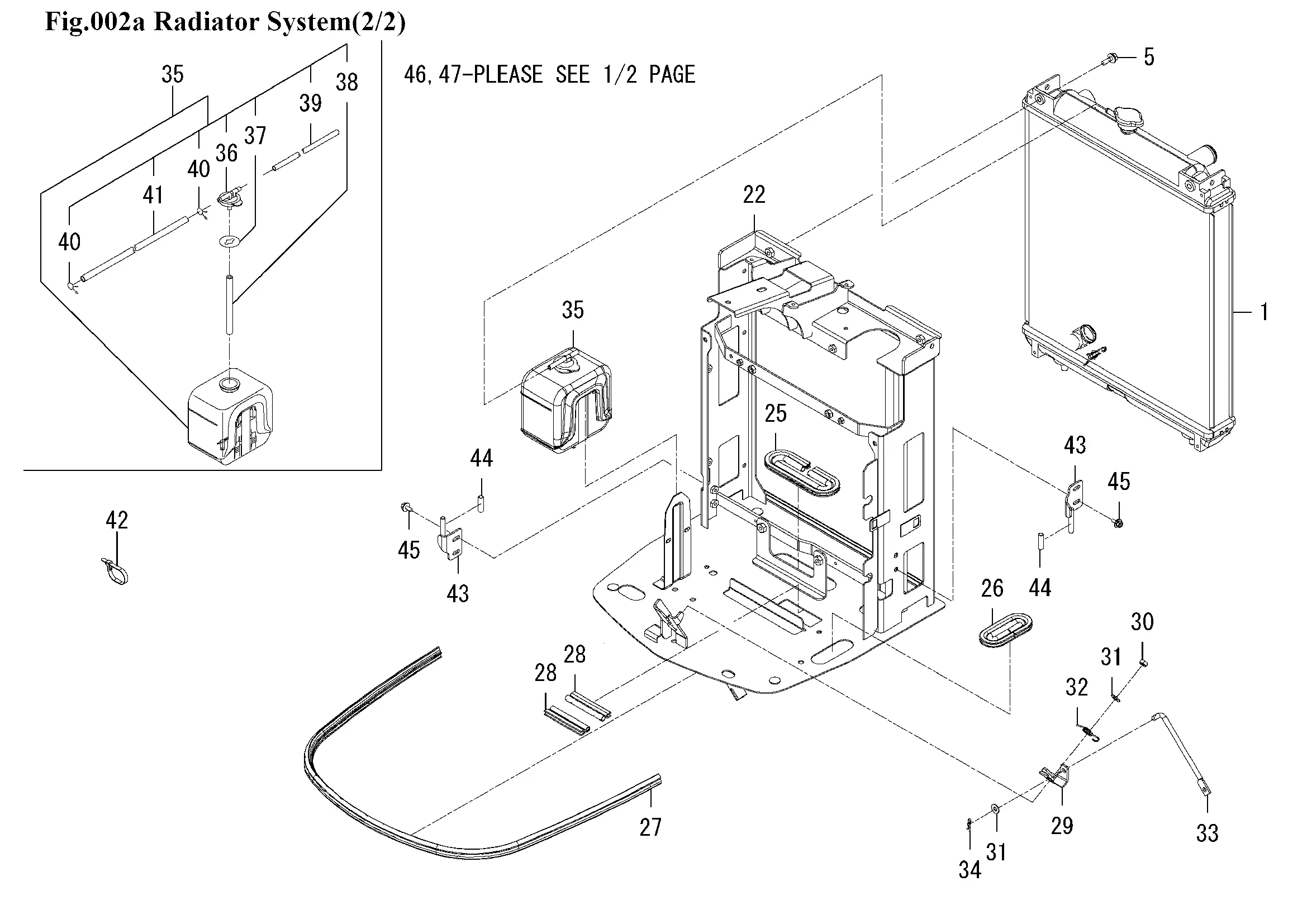

Kühler
Ersatzteile (48 Teile)
1
RADIATOR ASSY
2
CAP
3
1719-102-202-00
4
1719-102-203-00
5
1746-803-003-00
6
1734-102-011-20
7
INSULATOR/475
8
1816-102-007-10
9
1816-102-610-10
10
1746-804-002-00
11
1816-102-007-10
12
3670-272-001-00
13
PROTECTOR/NET COMP
14
LATCH ASSY
15
1816-102-061-00
16
HOSE/RADIATOR/OUTLET
17
CLAMP/WIRE/36-44
18
1817-102-320-00
19
BOLT,SP/M8X20
20
HOSE/205
21
CLIP/HOSE/14.7-15.9
22
1816-102-620-10
23
1746-816-001-00
24
BUSH,LEVER
25
TRIM/320
26
INSULATOR/220
27
INSULATOR/1260
28
TRIM/90
29
3801-671-003-00
30
1817-102-310-10
31
1746-817-001-00
32
WASHER,PL/M8
33
3673-641-004-00
34
1848-102-005-00
35
PIN/SNAP
36
1798-102-730-00
37
CAP
38
PACKING
39
1690-102-214-00
40
1798-102-741-00
41
1690-102-216-00
42
1798-102-742-00
43
BAND,WIRE/140
44
1792-102-270-10
45
TUBE/07X09X30
46
1815-802-001-00
47
NET/SIDE/RH
48
CLIP(B)
