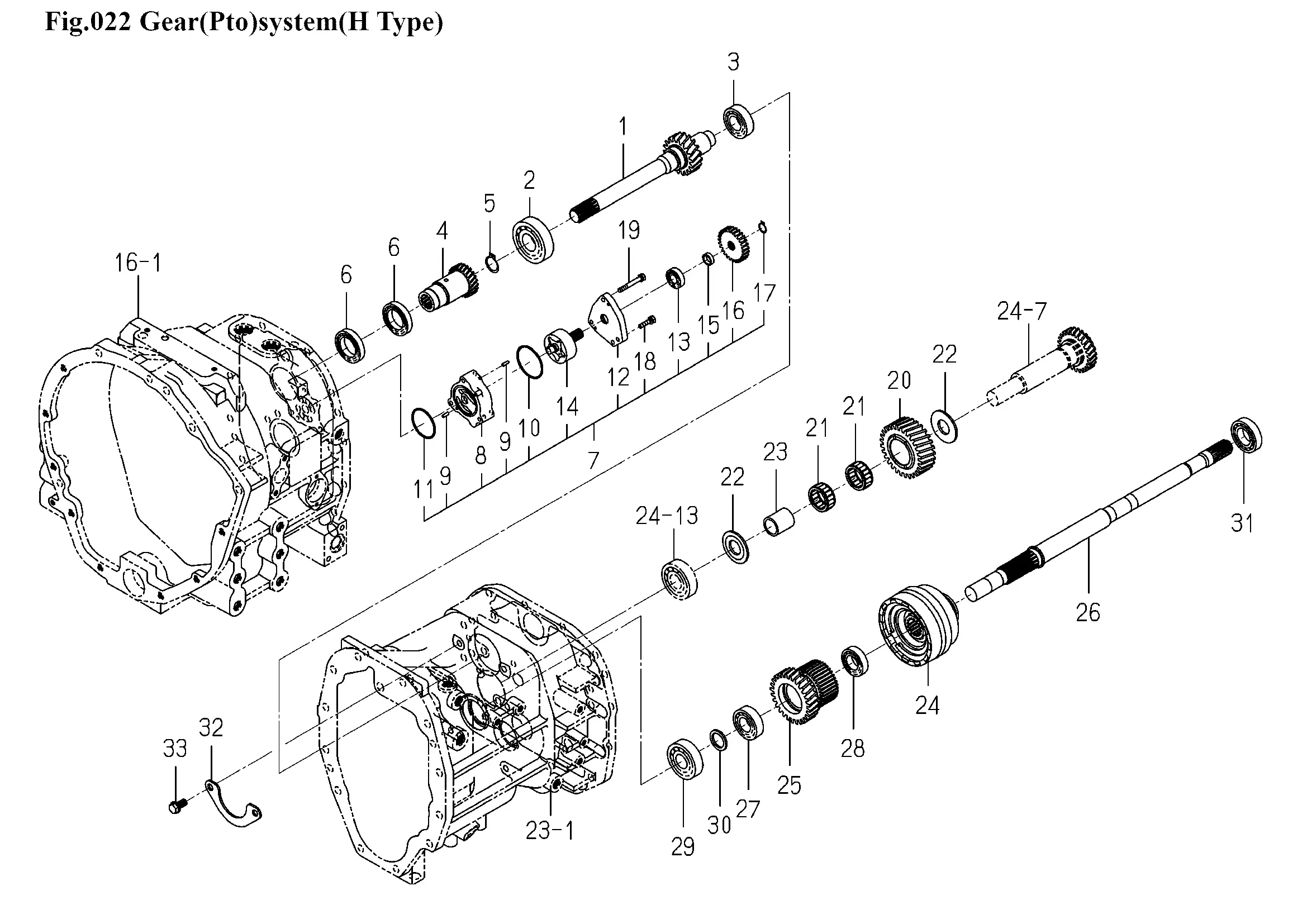

Getriebe, PTO
Ersatzteile (33 Teile)
1
GEAR/HELICAL/18
2
BEARING,RB/6306
3
BEARING,RB/6205
4
GEAR/SPUR/26
5
RING,SNAP/25 C
6
BEARING,RB/6907
7
PUMP/GEARSET
8
1747-209-054-20
9
6213-129-003-00
10
O-RING/1A,S53
11
O-RING/1A,S48
12
1747-209-056-20
13
BEARING,RB/6002
14
1747-209-500-20
15
COLLAR/15X19X06
16
1801-209-053-00
17
Sicherungsring 15x1
18
BOLT,S/M6X20/7T
19
BOLT,S/M6X50/7T
20
GEAR/HELICAL/28
21
BEARING/NEEDLE
22
WASHER/25X55X04
23
BUSH/25X32X36
24
1802-209-200-10
25
GEAR/HELICAL/27
26
SHAFT/DRIVE/PTO
27
BEARING,RB/6205
28
V600-110-600-50
29
BEARING,RB/6305
30
COLLAR/26X35X03
31
BEARING,RB/6006
32
PLATE
33
V231-361-002-00
