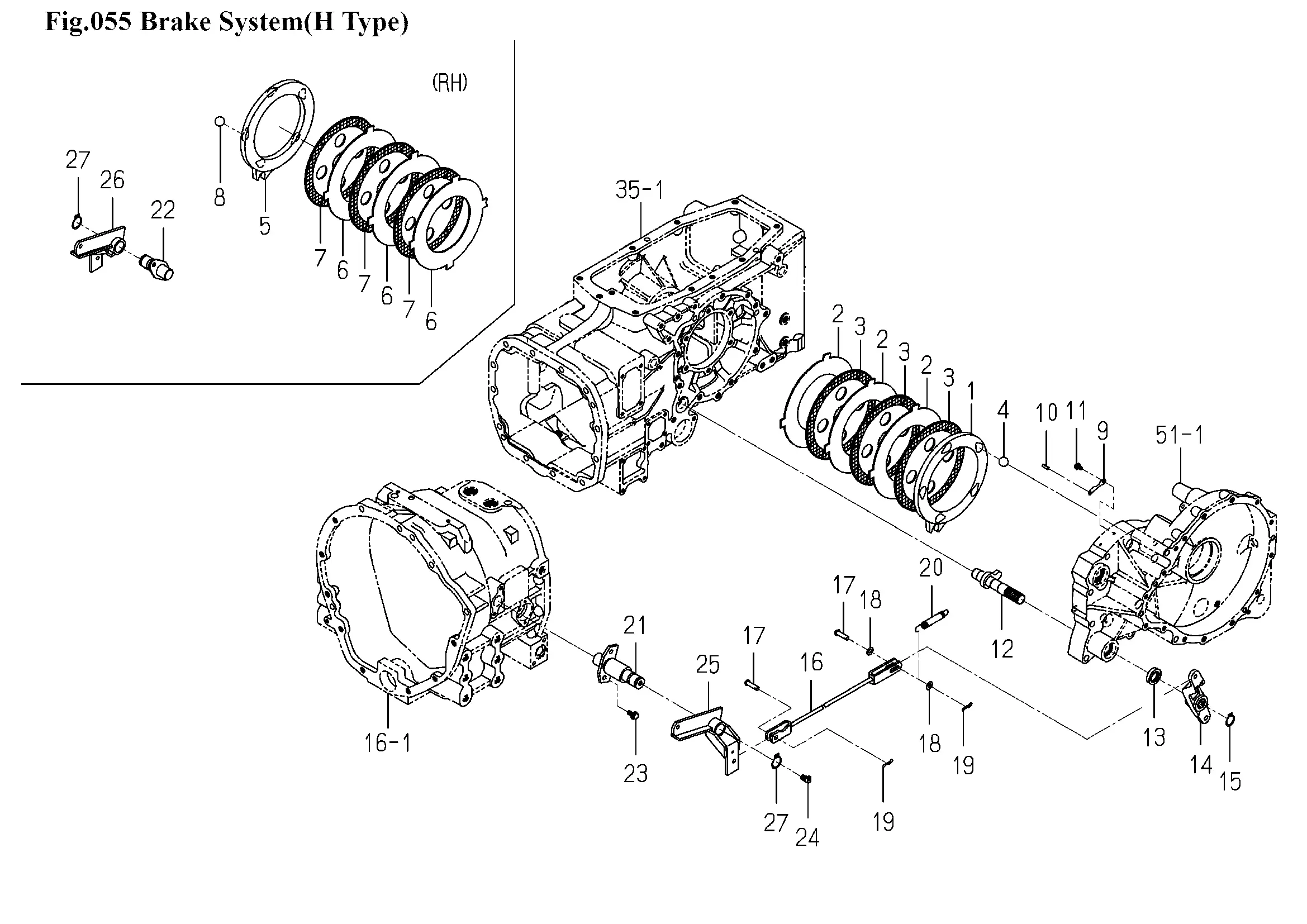

Bremse
Ersatzteile (27 Teile)
1
PLATE/PRESSURE/LH
2
PLATE/SEPARATER
3
PLATE/FRICTION
4
STEELBALL
5
PLATE/PRESSURE/RH
6
PLATE/SEPARATER
7
PLATE/FRICTION
8
STEELBALL
9
PLATE
10
PIN,SPRING/5X16 W
11
FLANGEBOLT/M6X10
12
CAM/BRAKE COMP
13
SEAL,OIL/TC22358
14
ARM/BRAKE
15
RING,SNAP/22 C
16
1815-310-200-00
17
PIN,YOKE A
18
WASHER,PL/M8
19
PIN/SNAP/B
20
SPRING/HE095
21
PIN/BRAKE COMP
22
1801-310-320-00
23
FLANGEBOLT/M8X16
24
NIPPLE,GREASE/PT1/8
25
ARM/BRAKE/LH COMP
26
ARM/BRAKE/RH COMP
27
RING,SNAP/25 C
