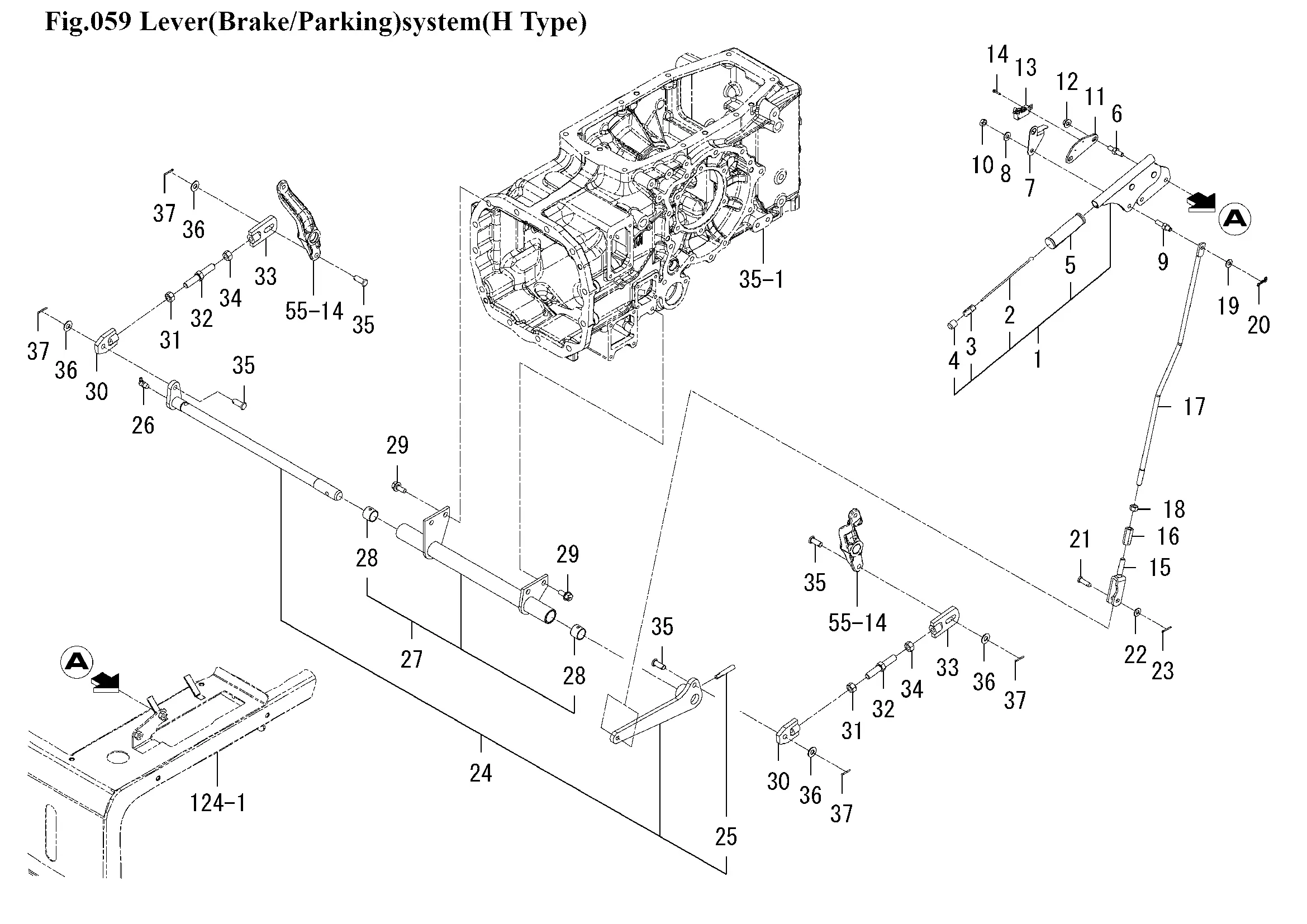

Festellbremse
Ersatzteile (37 Teile)
1
1740-313-300-10
2
ROD
3
SPRING
4
BUTTON
5
GRIP/ORANGE
6
1815-313-061-00
7
1815-313-062-00
8
WASHER,PL/M8
9
1815-313-064-10
10
1719-312-001-00
11
1815-313-063-00
12
Kombimutter-M8
13
SWITCH/LIMIT ASSY
14
SCREW,SP/M3X16
15
1815-313-600-00
16
1843-313-002-00
17
1816-313-072-00
18
V304-460-010-00
19
WASHER,PL/M8
20
PIN/SNAP/B
21
PIN/08X26
22
WASHER,PL/M8
23
PIN,SPLIT/2.5X20
24
1837-313-600-00
25
PIN,TAPER/8X50
26
NIPPLE,GREASE/PT1/8
27
1747-313-300-00
28
BUSH/22X25X20
29
V231-361-002-00
30
PLATE/PARKING/A COMP
31
NUT/M12
32
ROD/M12X80
33
PLATE/PARKING/B COMP
34
NUT/M12/LH
35
PIN/10X25
36
V411-260-010-00
37
PIN,SPLIT/2.5X20
