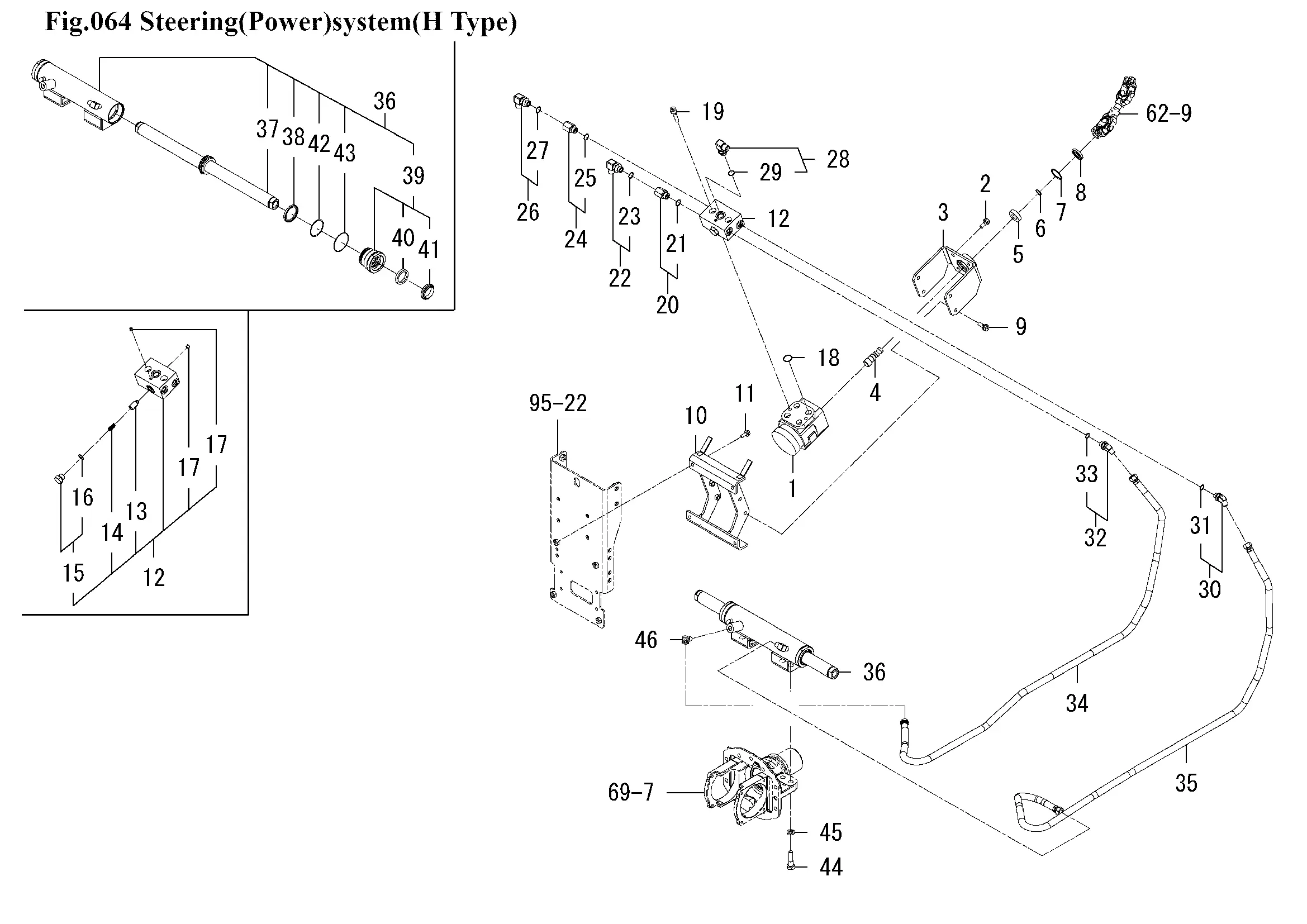

Lenkzylinder
Ersatzteile (46 Teile)
1
1646-407-670-20
2
BOLT,S/M10X20/7T
3
1815-407-610-10
4
SHAFT
5
1848-407-001-00
6
RING,SNAP/17 C
7
RING,SNAP/35 C
8
SEAL,OIL/VC17355
9
BOLT,S/M10X25/7T
10
1816-407-600-00
11
V231-360-802-00
12
1815-407-310-00
13
1843-509-001-00
14
SPRING/HC024
15
PLUG/G3/8 ASSY
16
O-RING/1B,P14
17
PLUG/SCREW/SEAL
18
O-RING/1B,P20
19
V220-541-004-00
20
ADAPTER/G3/8 ASSY
21
O-RING/1B,P14
22
ADAPTER/L/G3/8 ASSY
23
O-RING/1B,P14
24
ADAPTER/G3/8 ASSY
25
O-RING/1B,P14
26
ADAPTER/L/G3/8 ASSY
27
O-RING/1B,P14
28
ADAPTER/L/G3/8 ASSY
29
O-RING/1B,P14
30
ELBOW/45DEG ASSY
31
O-RING/1B,P11
32
ELBOW/45DEG ASSY
33
O-RING/1B,P11
34
1801-407-230-10
35
1802-407-200-20
36
K167-007-000-20
37
ROD/PISTON COMP
38
PACKING/PISTON
39
COVER/ROD SET
40
PACKING/ROD
41
SEAL/DUST
42
O-RING/1B,P44
43
O-RING/1A,S53
44
1763-410-006-10
45
WASHER,SP/M12
46
3631-350-201-20
