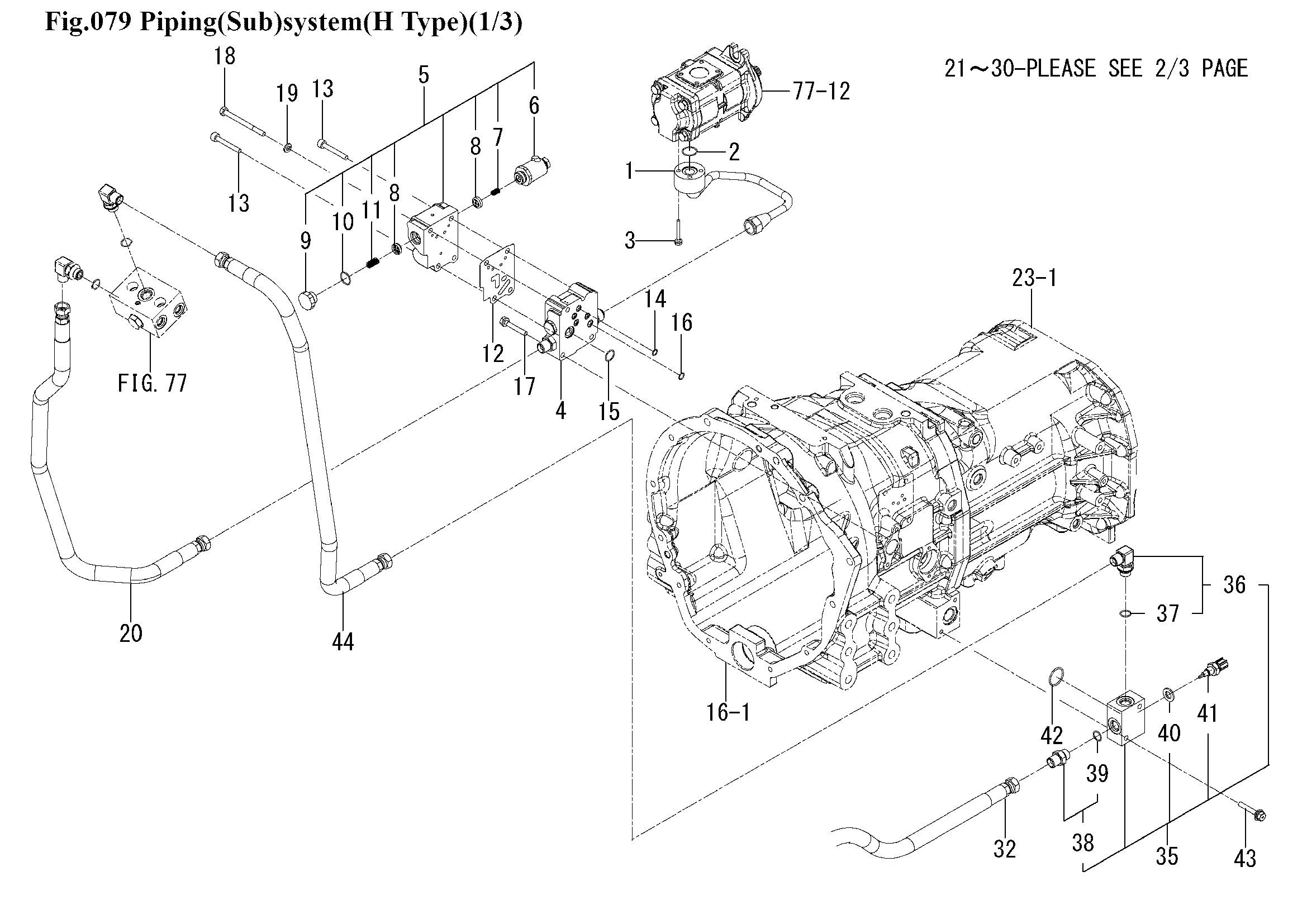

Hydraulikpumpe, Ölkühler, Filter
Ersatzteile (73 Teile)
1
1816-509-510-10
2
O-RING/1B,P20
3
BOLT,S/M6X40/7T
4
VALVE/REDUCE/07 SET
5
K200-315-100-00
6
SOLENOID/HW/04/ SET
7
K200-231-201-00
8
SPRING/PLATE/03
9
K200-099-002-00
10
O-RING/1B,P18
11
SPRING/HC020
12
GASKET/HVA1/097
13
BOLT/M8
14
O-RING/1B,P8
15
O-RING/1B,P16
16
O-RING/1B,P9
17
V211-260-804-50
18
V201-260-808-50
19
WASHER,SP/M8
20
1803-509-530-10
21
1801-509-260-10
22
ADAPTER/L/G3/8
23
1817-509-004-00
24
J061-114-024-00
25
COOLER/OIL COMP
26
BOLT/SP
27
BOLT/M8X20(22)
28
1816-509-061-10
29
GROMMET/25X30X03
30
J061-114-024-00
31
ADAPTER/L/G3/8
32
1801-509-260-10
33
CLAMP/28X55
34
FLANGEBOLT/M8X16
35
1816-509-540-10
36
ADAPTER/L/G3/8 ASSY
37
O-RING/1B,P14
38
ADAPTER/PF3/8 ASSY
39
O-RING/1B,P14
40
1757-509-015-00
41
SENSOR/TEMP ASSY
42
O-RING/1B,P26,HS90
43
BOLT,SP/M8X45
44
1803-509-530-10
45
FILTER/LINE ASSY
46
Hydraulikfilter
47
FLANGEBOLT/M8X16
48
1815-509-055-00
49
V231-361-001-60
50
1747-509-051-00
51
V231-360-802-00
52
1738-508-210-10
53
1747-509-510-00
54
O-RING/1A,P28
55
1675-508-004-10
56
J061-224-032-00
57
ADAPTER ASSY
58
O-RING/1B,S24
59
ADAPTER/L/G1/2 ASSY
60
O-RING/1B,P14
61
1747-509-570-10
62
ADAPTER/90/G/1/ ASSY
63
RING/O
64
ADAPTER/90/G/1/ ASSY
65
RING/O
66
1747-509-570-10
67
ADAPTER/L/G1/2 ASSY
68
O-RING/1B,P14
69
1816-509-520-00
70
ADAPTER/L/PF1/4 ASSY
71
O-RING/1B,P11
72
ADAPTER/PF1/4 ASSY
73
O-RING/1B,P11
