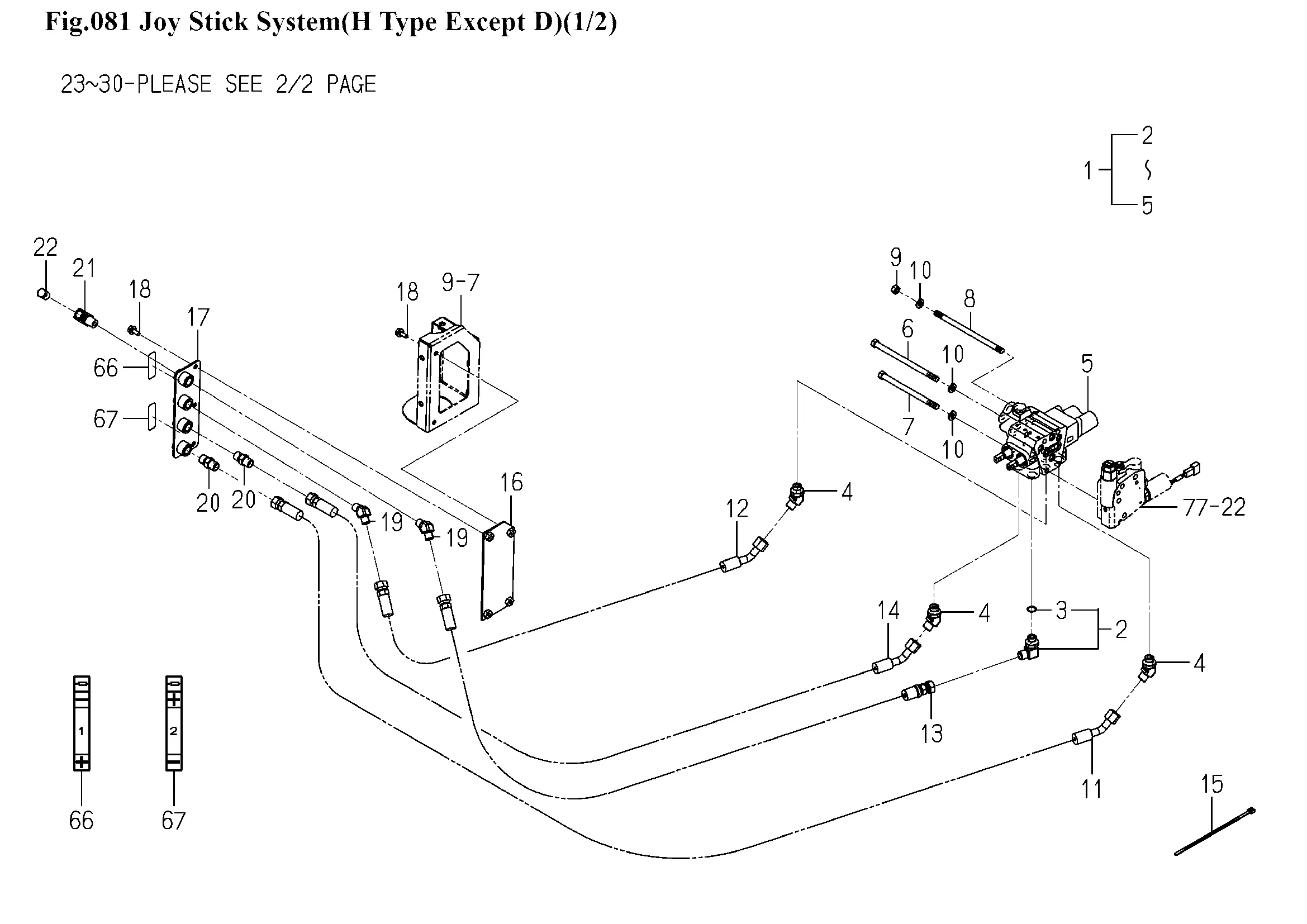

Joy Stick
Ersatzteile (67 Teile)
1
VALVE/CONTROL/119
2
ADAPTER/L/G3/8 ASSY
3
O-RING/1B,P14
4
ADAPTER (G3/8B-G3/8B
5
VALVE/CONTROL/119
6
V201-261-017-00
7
V201-261-015-00
8
1742-511-002-00
9
NUT/M10
10
WASHER,SP/M10
11
1815-511-360-10
12
1815-511-360-10
13
1802-509-230-10
14
1815-511-590-00
15
1342-402-006-00
16
1801-511-730-00
17
1816-511-410-00
18
FLANGEBOLT/M8X16
19
ADAPTER/45/R3/8XG3/
20
ADAPTER/R/G3/8
21
1817-511-007-00
22
PLUG/SCREW/SEAL
23
HOLDER/CABLE ASSY
24
BUSH/10X12X20
25
FLANGEBOLT/M6X12
26
1815-511-280-30
27
1815-511-290-20
28
PIN/06X25
29
PIN/SNAP
30
V411-260-006-00
31
BRACKET/LOCK COMP
32
BOLT,SP/M8X20
33
ARM/LOCK ASSY
34
BUSH/10X12X20
35
RING,SNAP/9 E
36
1815-511-021-00
37
1817-511-310-00
38
1742-511-791-00
39
1742-511-792-00
40
1742-511-793-00
41
1742-511-794-00
42
KNOB
43
V411-260-005-00
44
PIN,SPLIT/1.6X15
45
CABLE/BOOM ASSY
46
CABLE/BUCKET ASSY
47
JOINT/BALL/M06
48
ROD/END
49
V301-260-006-00
50
NUT/FLANGE/M06
51
FLANGEBOLT/M6X20
52
BOLT,S/M6X30/7T
53
HOLDER/JOY COMP
54
FLANGEBOLT/M8X16
55
ARM/JOY
56
SPRING
57
WASHER/27X32X01
58
RING,SNAP/32 C
59
BOLT/LOCK
60
WASHER/8X12X2
61
BOOT,CHANGE LEVER
62
LEVER/JOY COMP
63
BOLT/M8X16
64
GRIP
65
BOOT/JOY
66
1817-512-002-10
67
LABEL/PORT/2ND/E4/+
