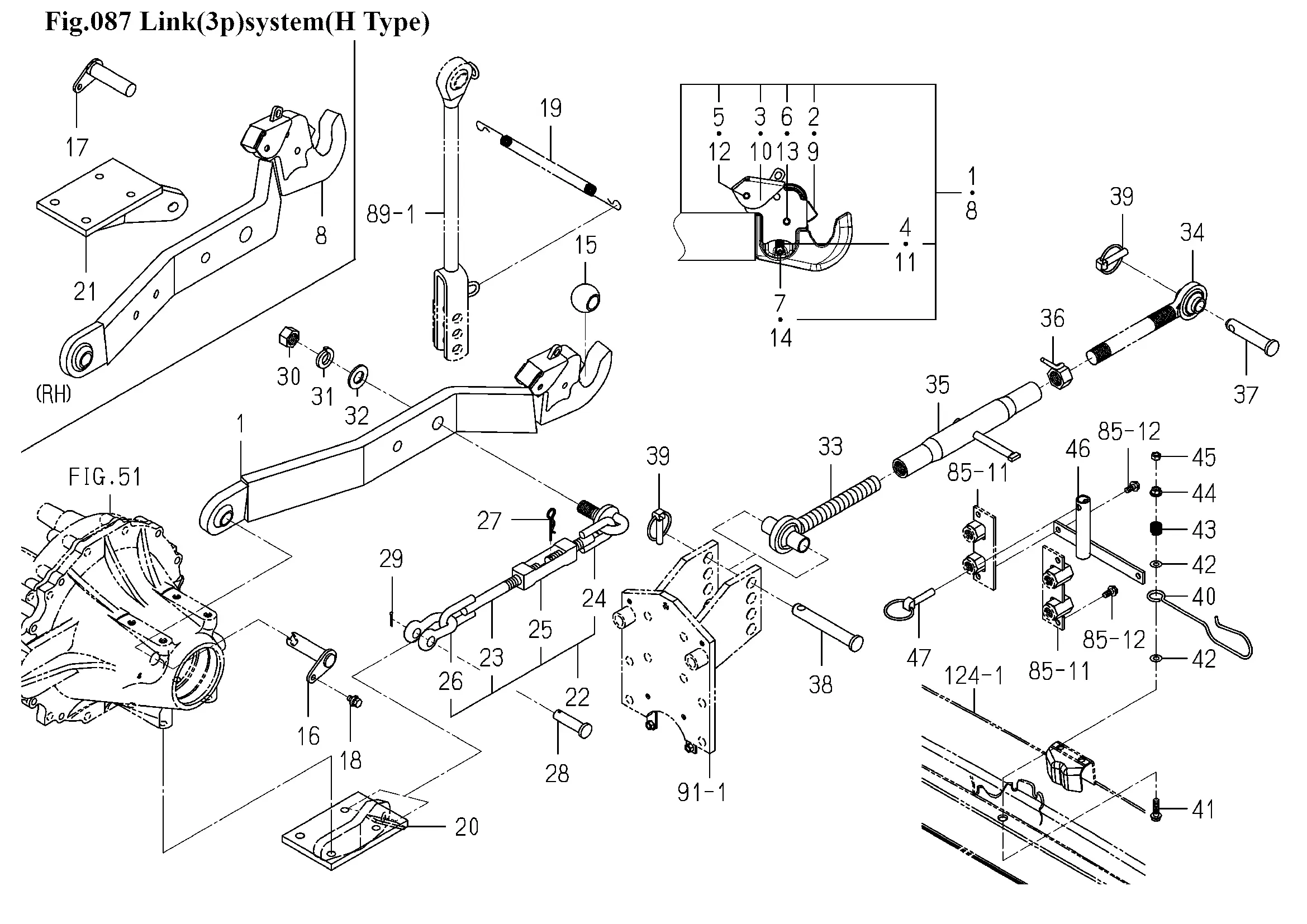

Heck 3 Punkt Aushebung
Ersatzteile (47 Teile)
1
LINK/LOWER/LH COMP
2
ARM/HOOK
3
LINK/HOOK
4
SPRING
5
PIN/SPRING
6
PIN/SPRING
7
PIN/SPRING
8
LINK/LOWER/RH COMP
9
ARM/HOOK
10
LINK/HOOK
11
SPRING
12
PIN/SPRING
13
PIN/SPRING
14
PIN/SPRING
15
BALL (NML). siehe 305051
16
1744-514-260-20
17
PIN COMP
18
V211-560-801-60
19
SPRING
20
1816-514-220-00
21
1816-514-230-00
22
CHAIN/CHECK/L ASSY
23
CHAIN/CHECK/FRONT
24
CHAIN/CHECK/REA COMP
25
BUCKLE/TURN/M16
26
SHACKLE
27
PIN,HAIR
28
1432-519-002-10
29
V500-164-004-00
30
V304-460-020-00
31
WASHER,SP/M20
32
WASHER,PL/M20
33
1560-525-290-20
34
1568-525-300-40
35
TURNBUCLE COMP
36
1402-511-600-02
37
PIN/19X94
38
PIN 19X132
39
LINKPIN
40
HOOK/TOPLINK
41
V231-360-803-00
42
WASHER,PL/M8
43
SPRING/HC014
44
V363-260-008-00
45
NUT/M8
46
1815-514-320-00
47
LINKPIN
