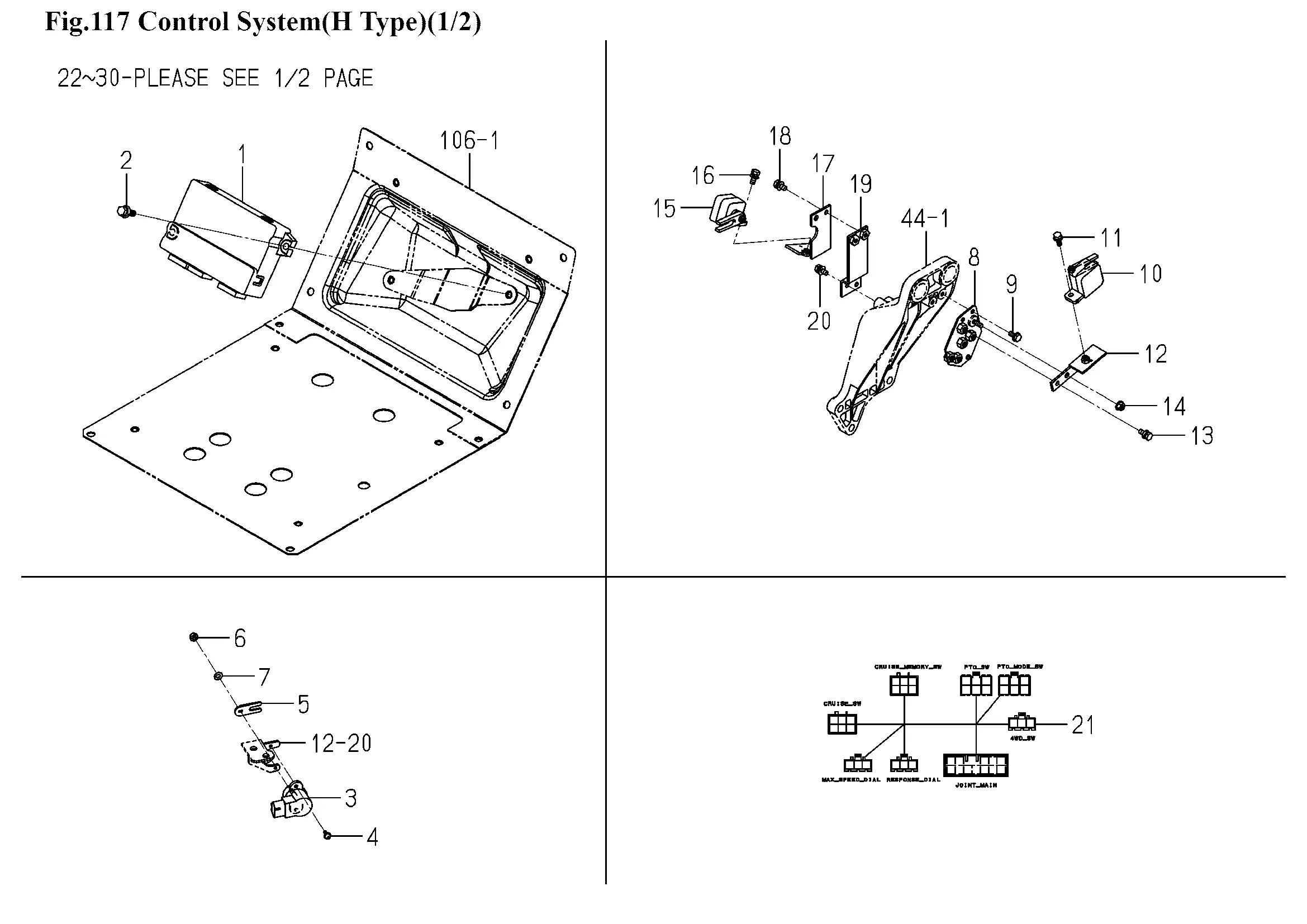

Steuereinheit, Blackbox Bordcomputer
Ersatzteile (38 Teile)
1
CONTROLLER/E4/H ASSY
2
BOLT,SP/M8X25
3
SENSOR/ANGLE/75 ASSY
4
SCREW,SP/M4X12
5
ARM/PLATE
6
V301-260-006-00
7
V401-160-006-00
8
1746-662-240-10
9
FLANGEBOLT/M6X12
10
1740-680-520-10
11
BOLT,SP/M6X16
12
1746-662-220-10
13
BOLT,SP/M6X16
14
NUT/WASHER/M6
15
1740-680-520-10
16
BOLT,SP/M6X16
17
1743-652-520-20
18
BOLT,SP/M6X16
19
1743-652-550-00
20
BOLT,SP/M6X16
21
1816-662-300-00
22
SWITCH/PTO ASSY
23
SWITCH/ROTARY/3 ASSY
24
SWITCH/VR ASSY
25
1675-695-005-00
26
SORING
27
Drehknopf
28
SWITCH/MOMENTAR ASSY
29
Standlichtschalter
30
Drehknopf
31
HARNESS/SPEED ASSY
32
V111-163-001-20
33
WASHER,SP/M3
34
1807-652-003-00
35
SWITCH/BEACON ASSY
36
BULB/LAMP/14V60MA
37
SWITCH/ACCELERATOR M
38
SWITCH/ADJUST/E ASSY
