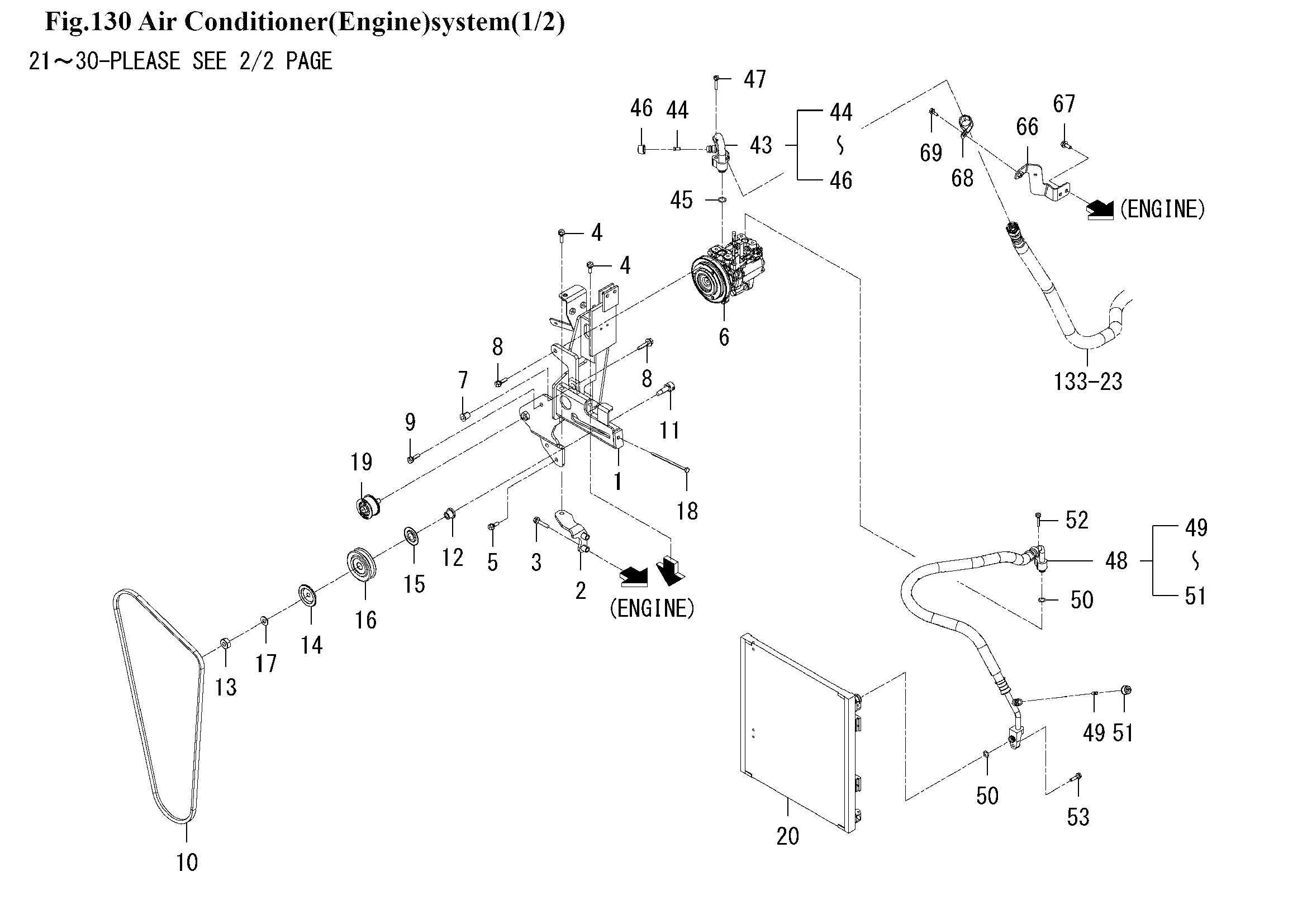

Kompressor, Klimaanlage
Ersatzteile (75 Teile)
1
1816-780-200-20
2
1848-780-290-00
3
V211-660-803-50
4
BOLT,S/M8X25/7T
5
V211-560-802-00
6
COMPRESSOR ASSY
7
1716-780-001-00
8
V211-660-803-50
9
BOLT,S/M8X25/7T
10
BELT/V/HM/55
11
1801-780-011-00
12
COLLAR
13
1801-780-013-00
14
1801-780-014-00
15
1801-780-015-00
16
PULLEY/VA076
17
V411-260-010-00
18
BOLT/M06X110
19
PULLEY/FT/45X20 SET
20
CONDENSER ASSY
21
1792-780-290-10
22
1816-780-250-00
23
1816-780-240-10
24
BOLT/SP
25
BOLT/SP
26
1815-802-001-00
27
1757-780-002-00
28
1757-780-003-00
29
WASHER/6X24X2
30
1815-802-002-00
31
1816-780-260-00
32
1690-780-001-00
33
1815-802-001-00
34
RECEIVER/DRYER ASSY
35
1815-802-003-00
36
1729-780-250-10
37
1759-308-001-00
38
NET/350X360 COMP
39
LATCH ASSY
40
JOINT/RECEIVER/LH
41
O-RING
42
BOLT/SP
43
1816-780-270-00
44
1729-780-512-00
45
O-RING
46
PLUG
47
V210-260-603-00
48
1816-780-230-00
49
1729-780-512-00
50
O-RING
51
PLUG
52
V210-260-603-00
53
BOLT/SP
54
1440-105-006-00
55
PIPE/LIQUID ASSY
56
O-RING
57
BOLT/SP
58
BOLT/S
59
1816-780-001-10
60
1816-780-005-10
61
CLIP/HOSE/18-22
62
1800-780-007-00
63
CLIP/HOSE/18-22
64
CLAMP,RADIATOR HOSE
65
1342-402-006-00
66
1816-780-280-00
67
FLANGEBOLT/M8X16
68
1792-780-004-00
69
BOLT,SP/M6X16
70
1816-780-003-00
71
V210-360-601-00
72
TRIM/270
73
1560-666-004-00
74
1342-402-006-00
75
BAND,WIRE/140
