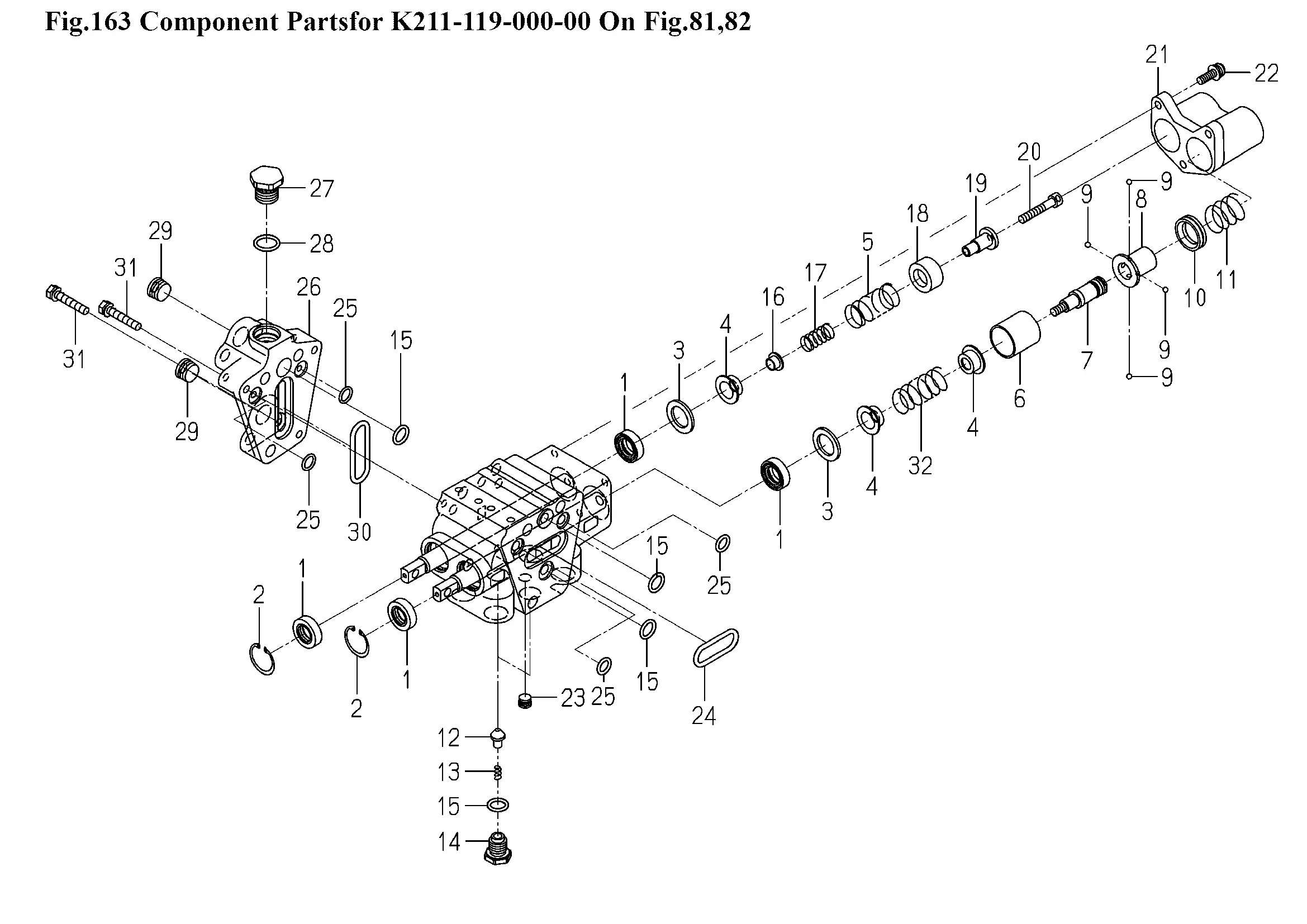

Einzelteile Hydrauliksteuerventil K211-119-000-00
Ersatzteile (32 Teile)
1
SEAL,OIL/TC4,14247
2
V705-140-024-00
3
3104-171-003-00
4
K211-074-106-00
5
K211-074-110-00
6
K211-074-108-00
7
SPOOLHEAD/100/1
8
SLEEVE/DETENT
9
STEELBALL
10
K211-100-105-00
11
SPRING/HC029
12
K211-074-111-10
13
SPRING
14
K211-074-112-10
15
O-RING/1B,P12
16
K211-119-001-00
17
K211-119-002-00
18
K211-119-003-00
19
K211-119-004-00
20
K211-101-103-00
21
K211-119-005-00
22
SCREW,SP/M6X20
23
PLUG/SCREW/SEAL
24
O-RING/1B,P32
25
O-RING/1B,P10A
26
1742-508-004-00
27
PLUG/M18
28
O-RING/1B,P16
29
PLUG/SCREW/SEAL
30
O-RING/1B,P38
31
V210-260-603-50
32
K211-075-108-20
