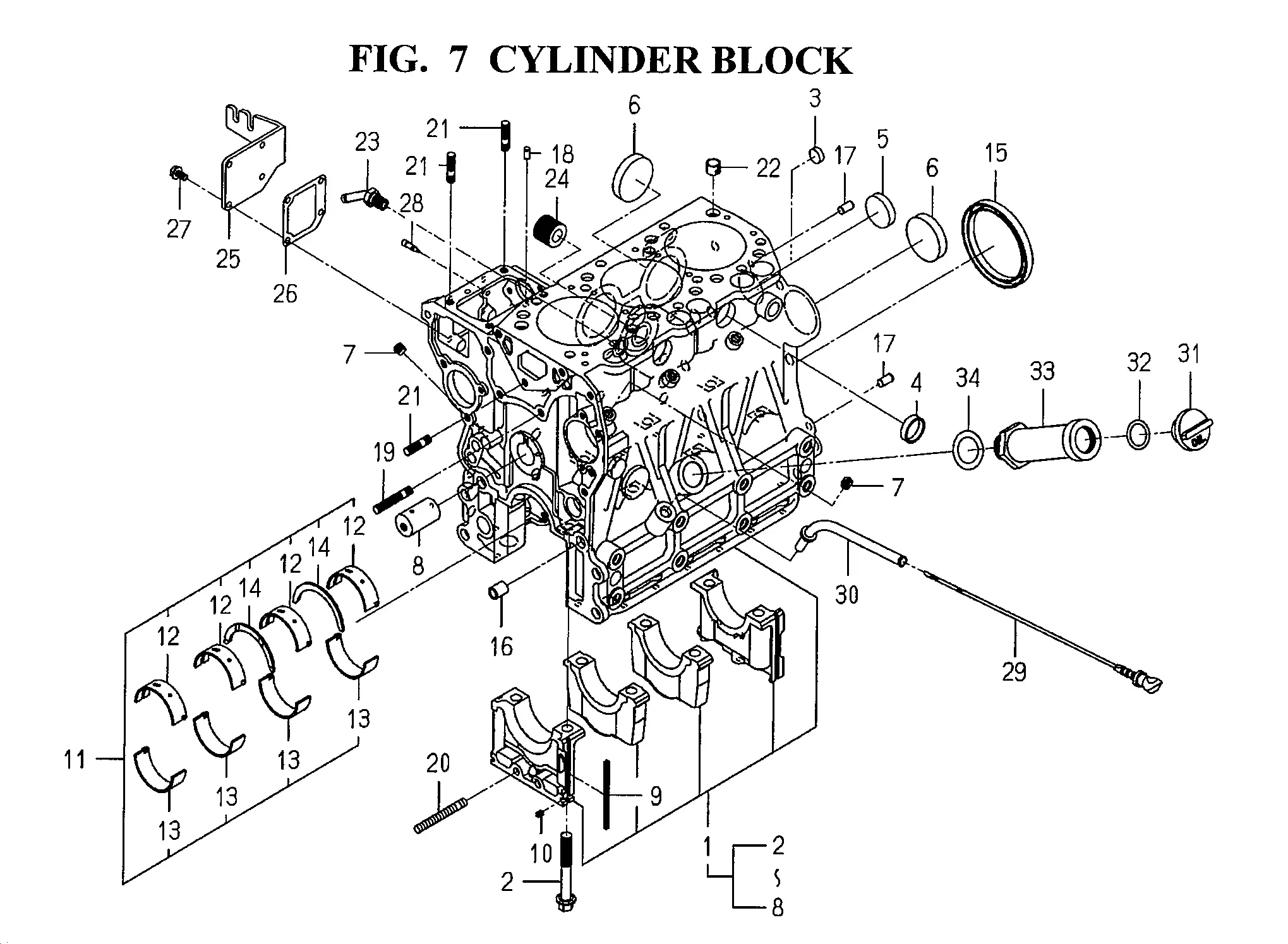

Motorblock, KW-Lagerung
Ersatzteile (34 Teile)
1
6211-210-081-10
2
BOLT
3
CUP/SEALING/16
4
CUP/SEALING/28
5
CUP/SEALING/36
6
CUP/SEALING/50
7
6209-605-007-10
8
PIN/IDLEGEAR
9
SEAL,BEARING CAP
10
SEAL,BEARING CAP/7
11
BEARING/CRANK SET
12
BEARING/CRANK/UPPER
13
BEARING/CRANK/LOWER
14
BEARING/THRUST/CRANK
15
OILSEAL
16
PIN/TUBE
17
PIN/STRAIGHT
18
6209-740-005-00
19
STUD/M8X40
20
STUD/M8X60/7T
21
STUD
22
DOWEL
23
PIPE/WATERDRAIN
24
CONNECTOR,OIL FILTER
25
6211-291-015-20
26
6211-292-001-20
27
FLANGEBOLT/M6X12
28
PIN
29
6211-760-052-10
30
GUIDE/LEVELGAGE COMP
31
CAP/OILFILLER
32
O-RING/1A,P25
33
Öleinfüllstutzen
34
GASKET/OILFILLER
