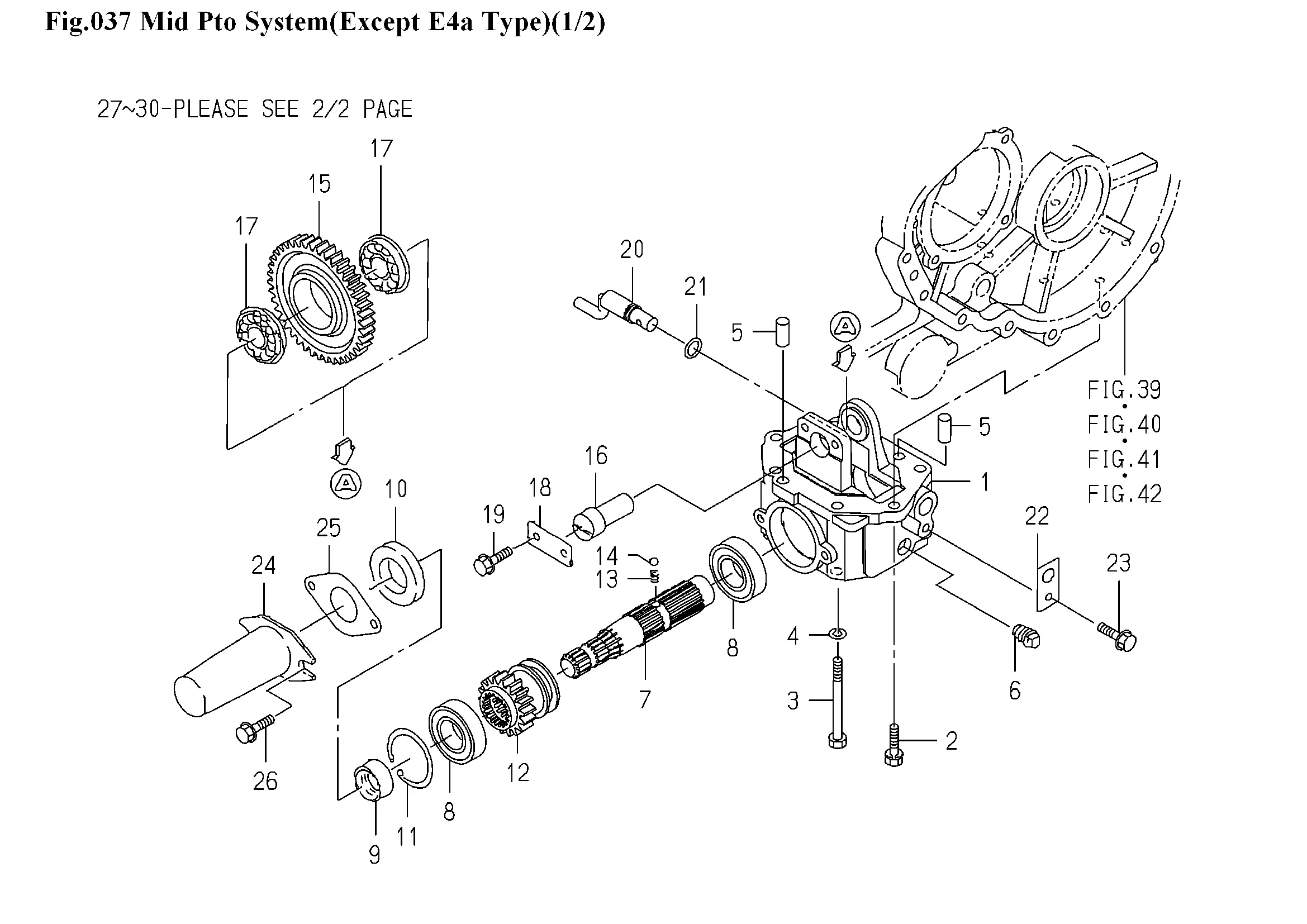

Zwischenachs-PTO
Ersatzteile (47 Teile)
1
CASE/PTO/MID
2
BOLT,S/M10X25/7T
3
V201-361-009-00
4
WASHER,SP/M10
5
PIN,ST,B/10X24
6
PLUG/SCREW/SEAL
7
SHAFT/PTO/MID
8
V600-410-620-60
9
1480-212-004-10
10
SEAL/OIL
11
RING,SNAP/R62
12
GEAR/SPUR/18
13
SPRING,SHIFTER
14
BALL,STEEL
15
GEAR/SPUR/41
16
Welle
17
1603-322-003-00
18
PLATE/I 25X60
19
FLANGEBOLT/M8X16
20
ARM/SHIFT/MID COMP
21
O-RING/1A,P14
22
PLATE/I/30X50
23
V231-360-801-20
24
1444-314-009-10
25
PLATE
26
FLANGEBOLT/M8X16
27
ARM/PTO/MID COMP
28
PIN,SPRING/6X25 W
29
PLATE/I/19X426
30
WASHER,PL/M8
31
PIN,SPLIT/2X20
32
Schaltarm
33
BUSH(18X20X20)
34
PLATE/Z/19X388
35
WASHER,PL/M8
36
PIN,SPLIT/2X20
37
Schaltarm
38
Buchse 22x25x25
39
1514-312-003-00
40
RING,SNAP/22 C
41
1773-229-350-20
41A
LEVER/PTO/MID COMP
42
BOLT,SP/M8X20
43
GRIP/MID/PTO
44
INSULATOR/LEVER/SUB
45
1772-902-026-10
45A
LABEL/CONTROL/MID
