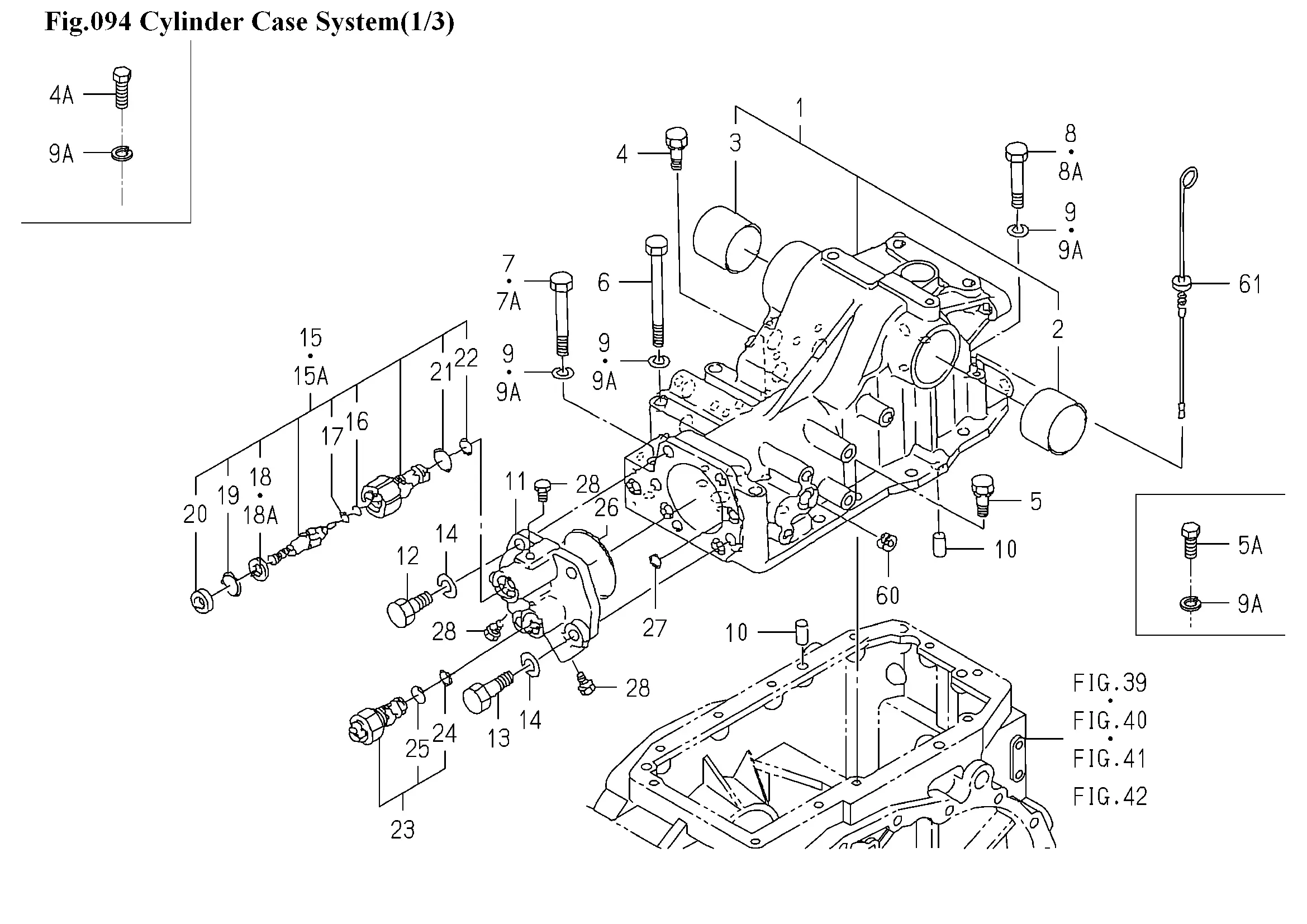

Zylinder, Heckaushebung, Senkdrossel
Ersatzteile (75 Teile)
1
1773-501-200-00
2
BUSH/50X55X37
3
BUSH/45X50X42
4
V211-561-003-00
4A
V201-461-003-00
5
BOLT,S/M10X25/7T
5A
BOLT/M10X25/9T
6
V201-461-010-50
7
BOLT/M10X75/7T
7A
1719-306-005-00
8
V201-361-005-00
8A
V201-461-005-00
9
WASHER,SP/M10
9A
WASHER,SP/M10
10
PIN,ST,B/10X24
11
1622-501-001-00
12
BOLT/M12X30/7T
13
BOLT/M12X40/7T
14
WASHER,SP/M12
15
Ventil
15A
K231-006-000-20
16
O-RING/1B,P9
17
RING/BACK UP
18
Manschette 11x21x3
18A
COLLAR/11X21X03
19
Sicherungsring
20
SEAL,DUST
21
O-RING/1B,P20
22
O-RING/1B,P14
23
VALVE
24
O-RING/1B,P12
25
O-RING/1B,P18
26
O-RING/1B,G70
27
O-RING/1B,P14
28
PLUG/SCREW/SEAL
29
1444-503-001-20
30
O-RING/1B,P65
31
RING,BACK UP
32
1617-502-001-20
33
1444-501-004-10
34
ARM/LIFT/LH
35
V706-140-045-00
36
CRANK/LIFT
37
V706-140-050-00
38
ROD
39
PIN,ROD COMP
40
BOLT,S/M10X20/7T
41
CONTROL VALVE ASSY
42
K211-026-100-00
43
SPRING
44
SPRING
45
PLUG
46
O-RING/1B,P12
47
PLUG/SCREW/SEAL
48
V211-260-804-00
49
O-RING/1B,P14
50
SPRING/HE123
51
V201-260-802-50
52
NUT/M8
53
PIPE,BREATHER
54
Schlauch
55
J062-138-148-00
56
1773-501-210-00
56A
PIPE/FILLER/OIL COMP
57
O-RING/1A,P26
57A
O-RING/1B,P26,HS90
58
V231-360-801-20
59
CAP/OIL(30)
60
PLUG/SCREW/SEAL
61
GAUGE/OIL
62
KNOB
63
SCREW/M6X40
64
V401-160-006-00
65
1568-507-001-10
66
NUT/M8
