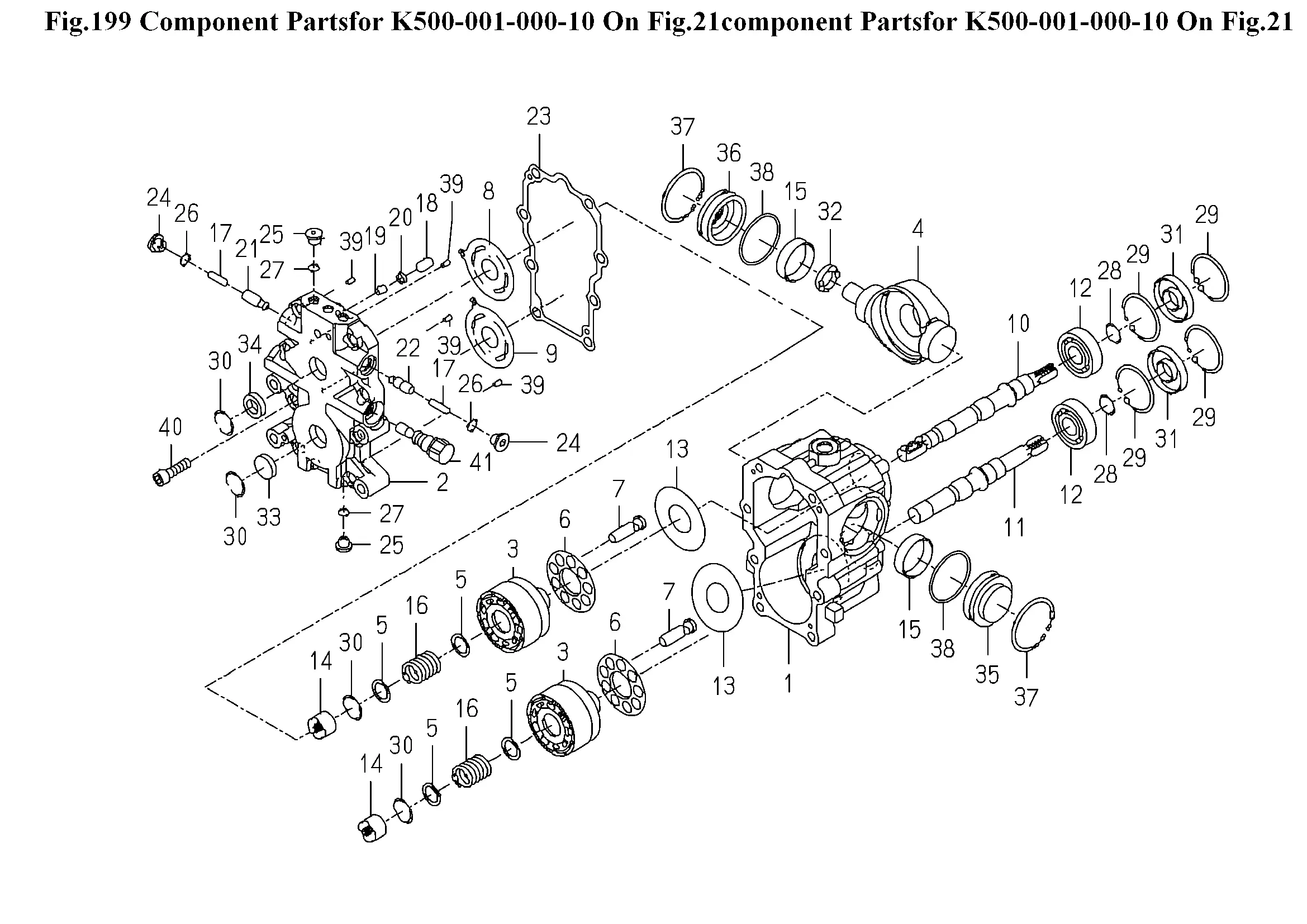

Einzelteile Hydrostat K500-001-000-10
Ersatzteile (41 Teile)
1
K500-001-001-00
2
K500-001-004-00
3
BLOCK/CYLINDER
4
K500-001-006-00
5
K500-001-007-00
6
K500-001-008-00
7
PISTON COMP
8
PLATE/VALVE/PUMP
9
PLATE/VALVE/MOTOR
10
SHAFT/PUMP
11
SHAFT/MOTOR
12
BEARING,RB/6305
13
PLATE/THRUST
14
NEEDLE
15
K500-001-017-00
16
K500-001-019-00
17
SPRING/HC030
18
SPRING/HC021
19
K510-003-022-00
20
K510-003-037-00
21
POPPET/CHECK
22
POPPET/CHECK/1.3
23
GASKET
24
PLUG(G3/8)
25
PLUG(PF1/4)
26
O-RING/1B,P14
27
O-RING/1B,P11
28
RING,SNAP/25 C
29
RING/SNAP/R62
30
RING,SNAP/32 C
31
SEAL/OIL
32
SEAL,OIL/TC25357
33
CAP/32X7
34
SEAL/OIL
35
K500-001-034-00
36
K500-001-035-00
37
K500-001-036-00
38
O-RING/1A,G65
39
K510-001-036-00
40
K500-001-039-00
41
K500-001-100-00
