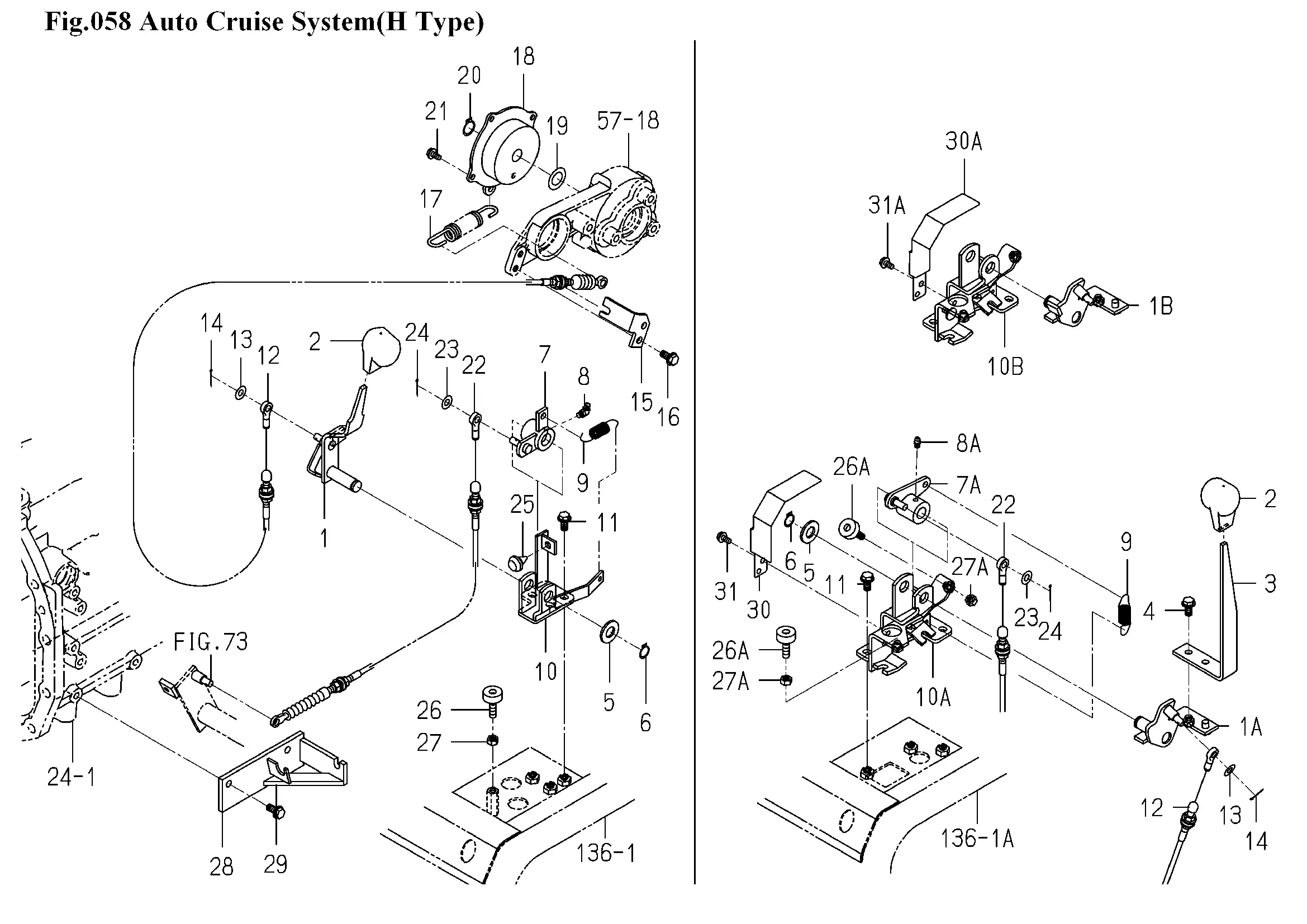

Tempomat
Ersatzteile (41 Teile)
1
1772-272-200-00
1A
1772-272-240-00
1B
1772-272-240-10
2
GRIP/MAIN
3
1772-272-001-00
4
FLANGEBOLT/M8X16
5
WASHER,PL/M14
6
Sicherungsring 15x1
7
Arm
7A
ARM/CRUISE COMP
8
V762-150-000-00
8A
NIPPLE,GREASE
9
SPRING/HE60
10
1772-272-210-00
10A
Halter, Tempomat
10B
1772-272-250-10
11
FLANGEBOLT/M8X16
12
CABLE/CRUISE/H ASSY
13
WASHER,PL/M8
14
PIN,SPLIT/2X20
15
1743-642-051-10
16
FLANGEBOLT/M8X16
17
SPRING/HE110
18
BRAKE ASSY
19
3824-222-006-00
20
RING,SNAP/18 C
21
FLANGEBOLT/M6X12
22
CABLE/CRUISE/R ASSY
23
WASHER,PL/M8
24
PIN,SPLIT/2X20
25
RUBBER,CUSHION
26
1421-602-005-10
26A
1421-602-005-10
27
NUT/M8
27A
NUT/M8
28
1772-272-220-10
29
FLANGEBOLT/M8X16
30
1772-272-002-00
30A
1772-272-002-10
31
FLANGEBOLT/M6X12
31A
FLANGEBOLT/M6X12
