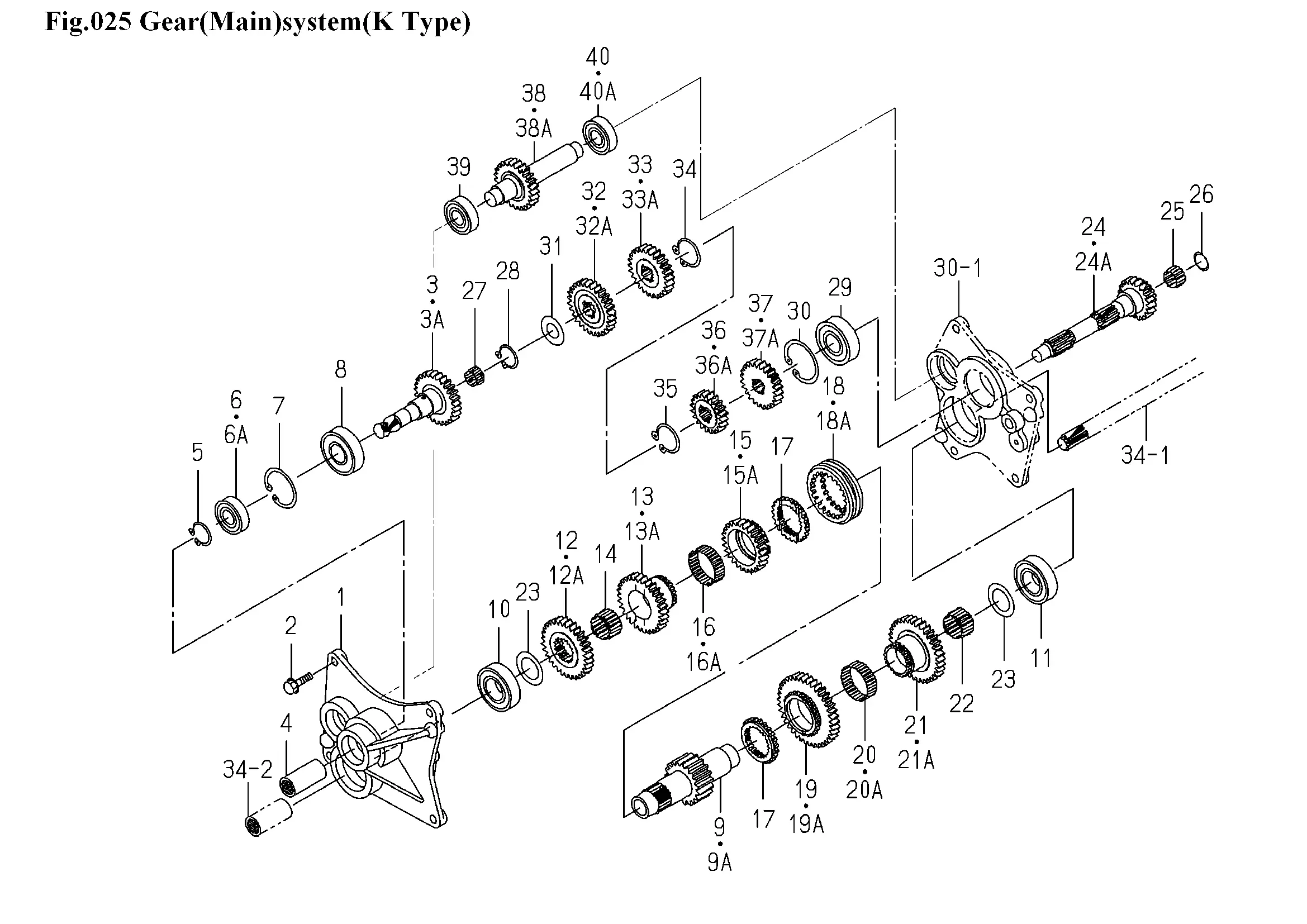

Getriebe (FKMWRE4 Type)
Ersatzteile (58 Teile)
1
1773-214-015-00
2
V231-361-002-50
3
1772-214-001-00
3A
1772-214-001-10
4
COUPLING/18X30X55
5
RING,SNAP/20 C
6
V600-410-620-40
6A
V600-110-620-40
7
RING,SNAP/47 C
8
BEARING/BALL
9
1773-214-006-00
9A
1773-214-006-10
10
V600-410-620-60
11
V600-410-620-60
12
1772-214-002-00
12A
1772-214-002-10
13
1773-214-003-00
13A
GEAR/SPUR/30
14
BEARING/NEEDLE
15
1773-214-004-00
15A
1773-214-004-10
16
Nadellager
16A
BEARING/NEEDLE
17
HUB
18
Kupplungsring
18A
1763-205-007-20
19
1773-214-023-00
19A
GEAR/SPUR/39
20
Nadellager
20A
BEARING/NEEDLE
21
1773-214-008-00
21A
1773-214-008-10
22
BEARING/NEEDLE
23
WASHER/30X46X2
24
1773-214-013-00
24A
GEAR/SPUR/20
25
BEARING/NEEDLE
26
RING,SNAP
27
Nadellager
28
RING,SNAP/20 C
29
1594-218-001-00
30
RING,SNAP/R62
31
Scheibe 20x39x02
32
1773-214-009-00
32A
1773-214-009-10
33
1773-214-010-00
33A
1773-214-010-10
34
RING,SNAP/25 C
35
RING,SNAP/25 C
36
1773-214-024-00
36A
1773-214-024-10
37
1773-214-012-00
37A
1773-214-012-10
38
1773-214-014-00
38A
1773-214-014-10
39
BEARING/BALL
40
V600-410-620-40
40A
V600-110-620-40
