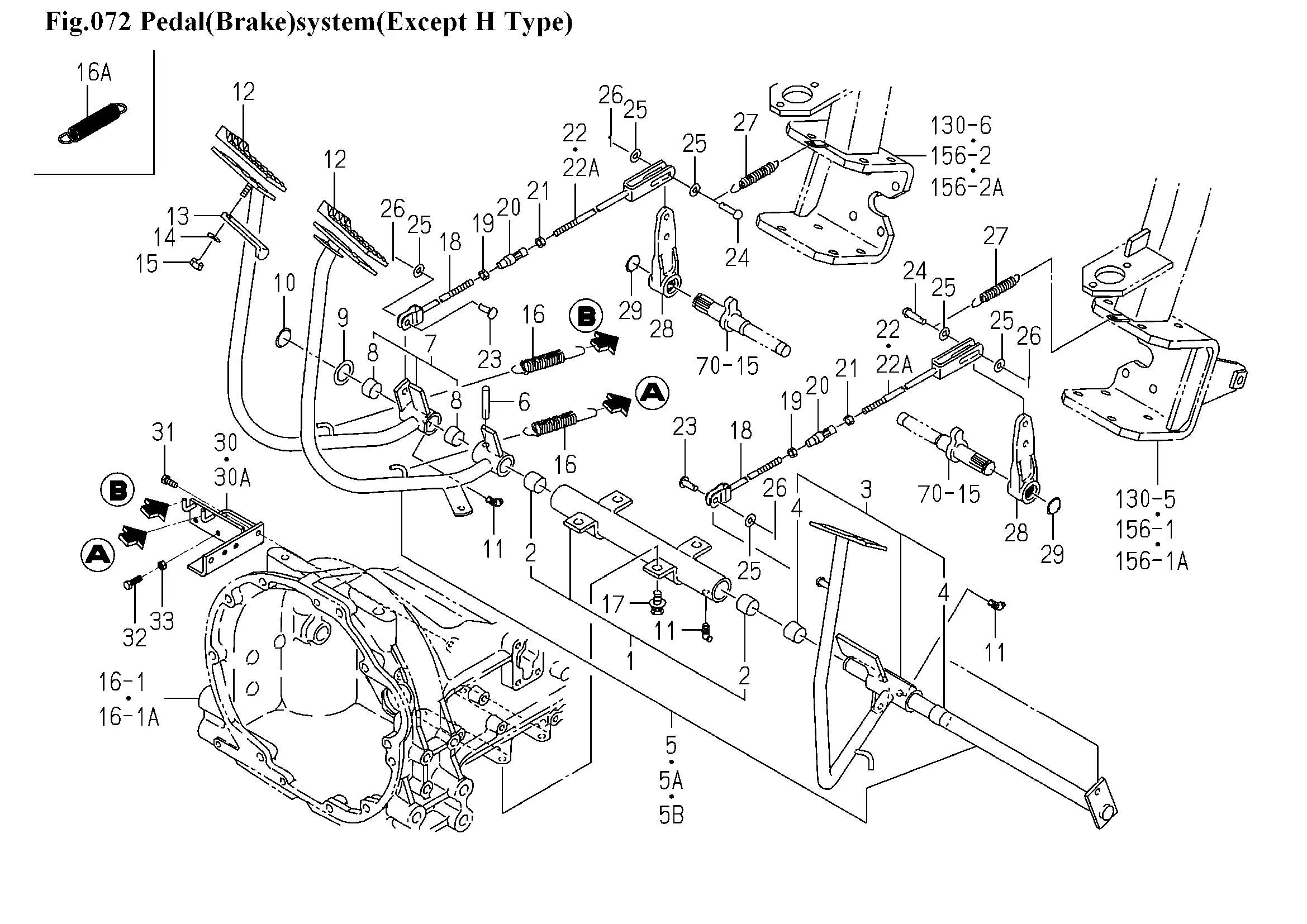

Pedal, Bremse
Ersatzteile (38 Teile)
1
1773-312-320-10
2
BUSH/25X28X25
3
1773-135-250-10
4
BUSH/25X28X25
5
1772-312-200-20
5A
1772-312-200-30
5B
1772-312-200-40
6
PIN,TAPER/8X50
7
1773-312-270-20
8
BUSH/25X28X15
9
2152-442-013-00
10
RING,SNAP/25 C
11
NIPPLE,GREASE/PT1/8
12
Pedalgummi, Bremse (rot)
13
Platte
14
3560-203-004-00
15
1719-312-001-00
16
SPRING/HE120
16A
SPRING/HE136
17
BOLT,SP/M10X25/7T
18
Spanngabel
19
NUT/LH/M08
20
TURNBUCKLE/M8
21
NUT/M8
22
Gabel
22A
ROD/FORK COMP
23
PIN
24
PIN,YOKE A
25
WASHER,PL/M8
26
PIN,SPLIT/2X20
27
SPRING/HE095
28
Bremsarm
29
RING,SNAP/22 C
30
1773-312-250-20
30A
1773-312-250-30
31
V211-560-802-00
32
BOLT/TRIMED
33
NUT/M8
