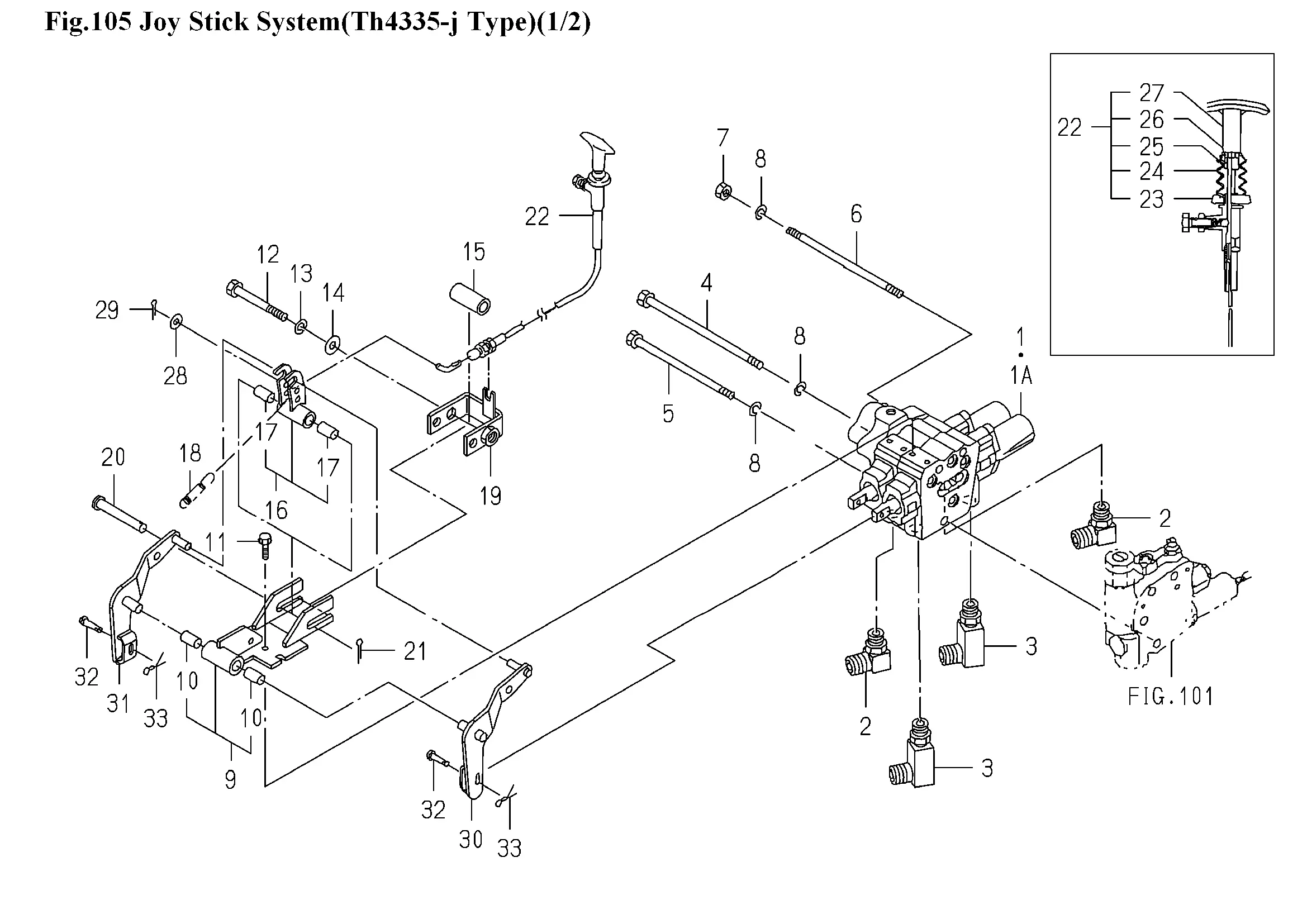

Hydrauliksteuergerät, Joystick
Ersatzteile (59 Teile)
1
K211-086-000-00
1A
VALVE/CONTROL/086
2
CONNECTOR
3
CONNECTOR/L
4
V201-261-017-00
5
V201-261-015-00
6
1742-511-002-00
7
NUT/M10
8
WASHER,SP/M10
9
1742-511-710-00
10
BUSH/10X12X20
11
FLANGEBOLT/M6X12
12
BOLT/M10X75/7T
13
WASHER,SP/M10
14
V411-260-010-00
15
1742-511-071-00
16
1742-511-770-10
17
BUSH/10X12X20
18
SPRING/HE055
19
1742-511-760-00
20
PIN/10X070
21
PIN,SPLIT/2X20
22
1742-511-790-10
23
1742-511-791-00
24
1742-511-792-00
25
1742-511-793-00
26
1742-511-794-00
27
KNOB
28
V411-260-005-00
29
PIN,SPLIT/1.6X15
30
ARM/BOOM COMP
31
ARM/BUCKET COMP
32
PIN/06X23
33
PIN/SNAP
34
JOINT ASSY
35
BASE/LEVER COMP
36
LEVER/JOYSTICK COMP
37
BOLT/M8X16
38
GRIP
39
1773-511-350-00
40
NUT/LH/M08
41
NUT/M8
42
1560-695-021-00
43
1560-695-022-00
44
NUT/M8
45
WASHER,SP/M8
46
BOOT
47
1772-511-210-00
48
FLANGEBOLT/M8X16
49
1744-512-250-00
50
1744-512-260-00
51
ADAPTER/45/R3/8XG3/
52
PLUG/SCREW/SEAL
53
Aufkleber, Schaltbild
54
1518-903-006-00
54A
1773-511-053-00
55
1518-903-007-00
56
1723-902-007-00
57
1723-902-008-00
