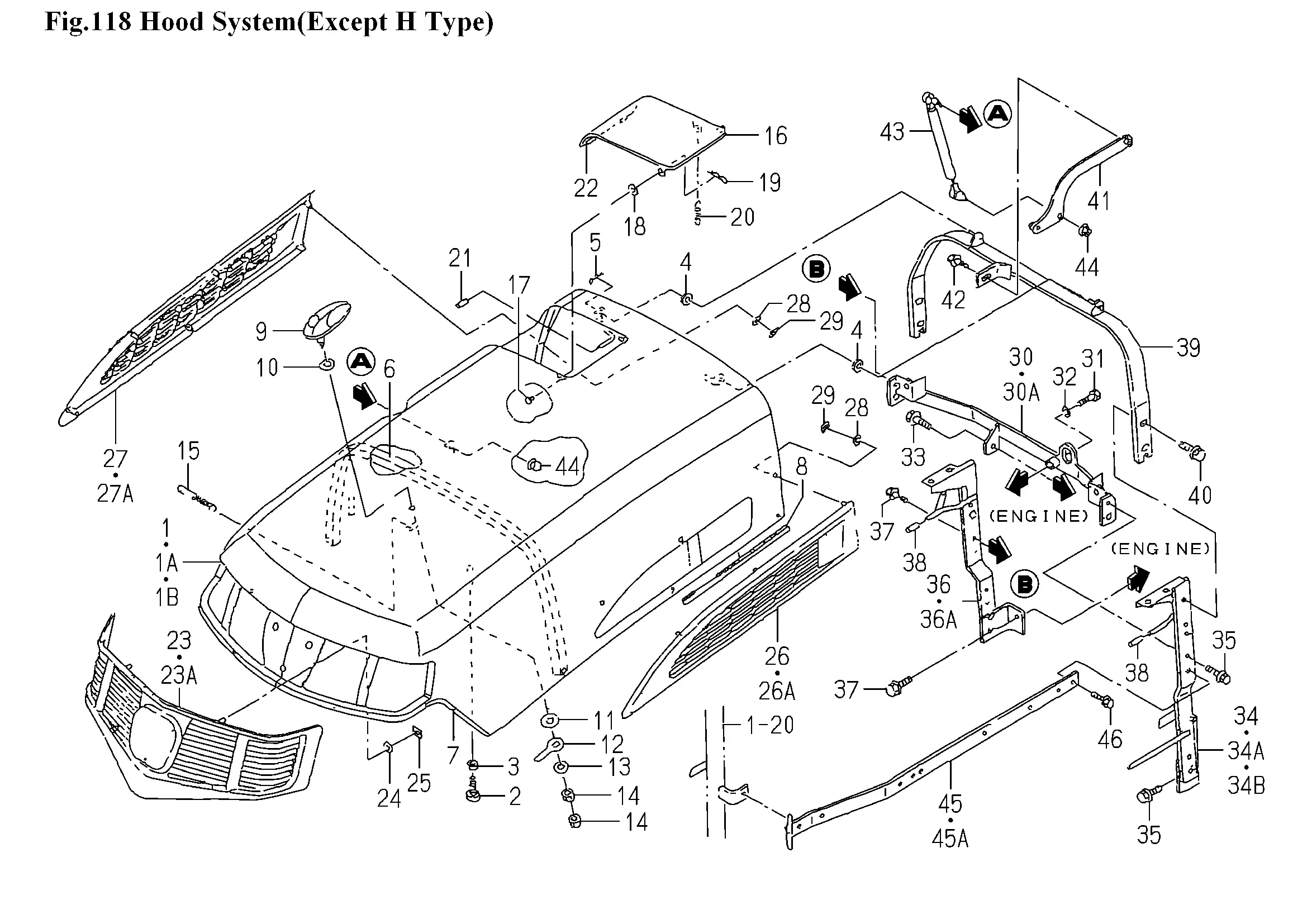

Motorhaube
Ersatzteile (56 Teile)
1
Motorhaube
1A
1729-601-200-60
1B
1729-601-200-70
2
1421-602-005-10
3
NUT/M8/7T
4
CUSHION/RUBBER/10X25
5
PIN/SNAP
6
1729-601-004-20
7
TRIM/150
8
TRIM/270
9
Handgriff
10
WASHER/12X25X02
11
3610-440-018-00
12
ARM/PLATE
13
WASHER,PL/M8
14
NUT/M8
15
SPRING/HE089
16
COVER COMP
17
PIN/06X07
18
V411-260-006-00
19
PIN/SNAP
20
SPRING/HE036
21
TUBE/06X10X20
22
TRIM/20
23
Abdeckung, Motorhaube
23A
1729-601-001-20
24
WASHER/6X14X3
25
NUT,SPEED/M6
26
Abdeckung, li
26A
1729-601-002-20
27
Abdeckung, re
27A
1729-601-003-20
28
WASHER/6X14X3
29
NUT,SPEED/M6
30
1729-601-300-00
30A
1729-601-300-10
31
V203-361-003-50
32
WASHER,SP/M10
33
FLANGEBOLT/M8X16
34
1729-601-310-10
34A
1729-601-310-20
34B
1729-601-310-30
35
V231-360-802-00
36
1742-601-270-20
36A
1742-601-270-30
37
V231-360-802-00
38
TUBE/07X09X30
39
1729-601-240-10
40
V231-360-802-00
41
1729-601-250-20
42
V231-360-802-00
43
DUMPER/HOOD ASSY
44
Kombimutter-M8
45
1729-601-260-20
45A
1729-601-260-30
46
V231-360-802-00
