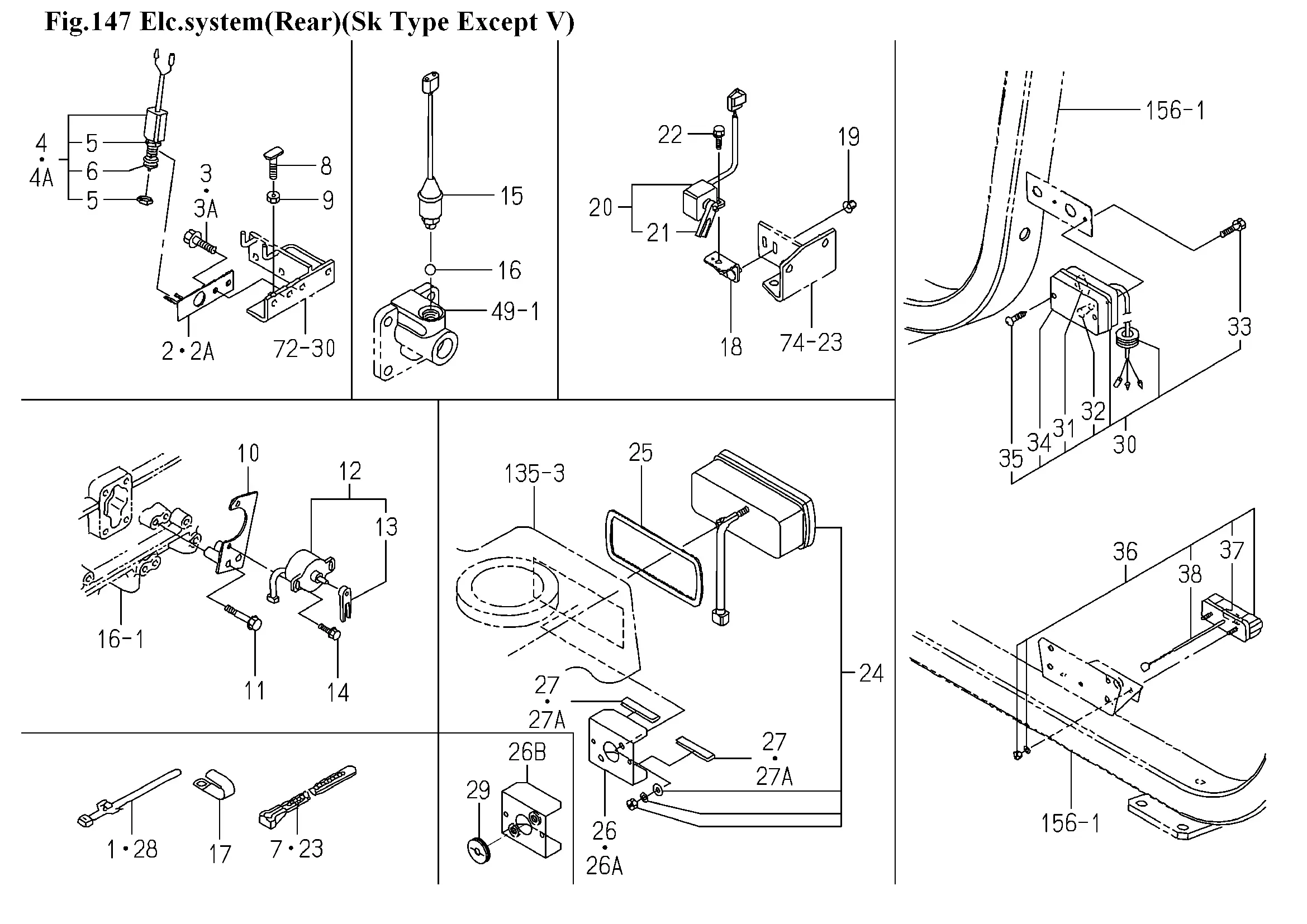

Schalter, Beleuchtung (FSKMJRE4 Type) Kabine
Ersatzteile (44 Teile)
1
1560-666-004-00
2
1772-654-290-00
2A
1772-654-290-10
3
FLANGEBOLT/M8X16
3A
V231-360-801-20
4
Bremsschalter
4A
1772-654-280-10
5
1772-654-281-00
6
BOOT
7
1342-402-006-00
8
BOLT/ADJUST
9
NUT/M8
10
1773-654-250-00
11
FLANGEBOLT/M8X50
12
SENSOR ASSY
13
PLATE/SENSOR
14
BOLT,SP/M6X16
15
SWITCH/PUSH ASSY
16
BALL,STEEL
17
HOLDER/JE/9-9
18
BRACKET/SWITCH/PARKI
19
NUT/WASHER/M6
20
Bremslichtschalter
21
ARM
22
BOLT,SP/M6X16
23
BAND,WIRE/140
24
LAMP/COMBINATION/REA
25
INSULATOR/LAMP
26
1772-654-002-00
26A
PLATE/U/70X85
26B
STAY/LAMP COMP
27
3680-338-006-10
27A
TRIM/70
28
1560-666-004-00
29
1678-782-003-00
30
LAMP/COMBINATION/FRO
31
1674-654-211-00
32
Glühlampe 12V _SW
33
1772-654-221-00
34
1772-654-222-00
35
1772-654-223-00
36
LAMP/NUMBERPLAT SET
37
1674-654-271-00
38
HARNESS/LAMP
