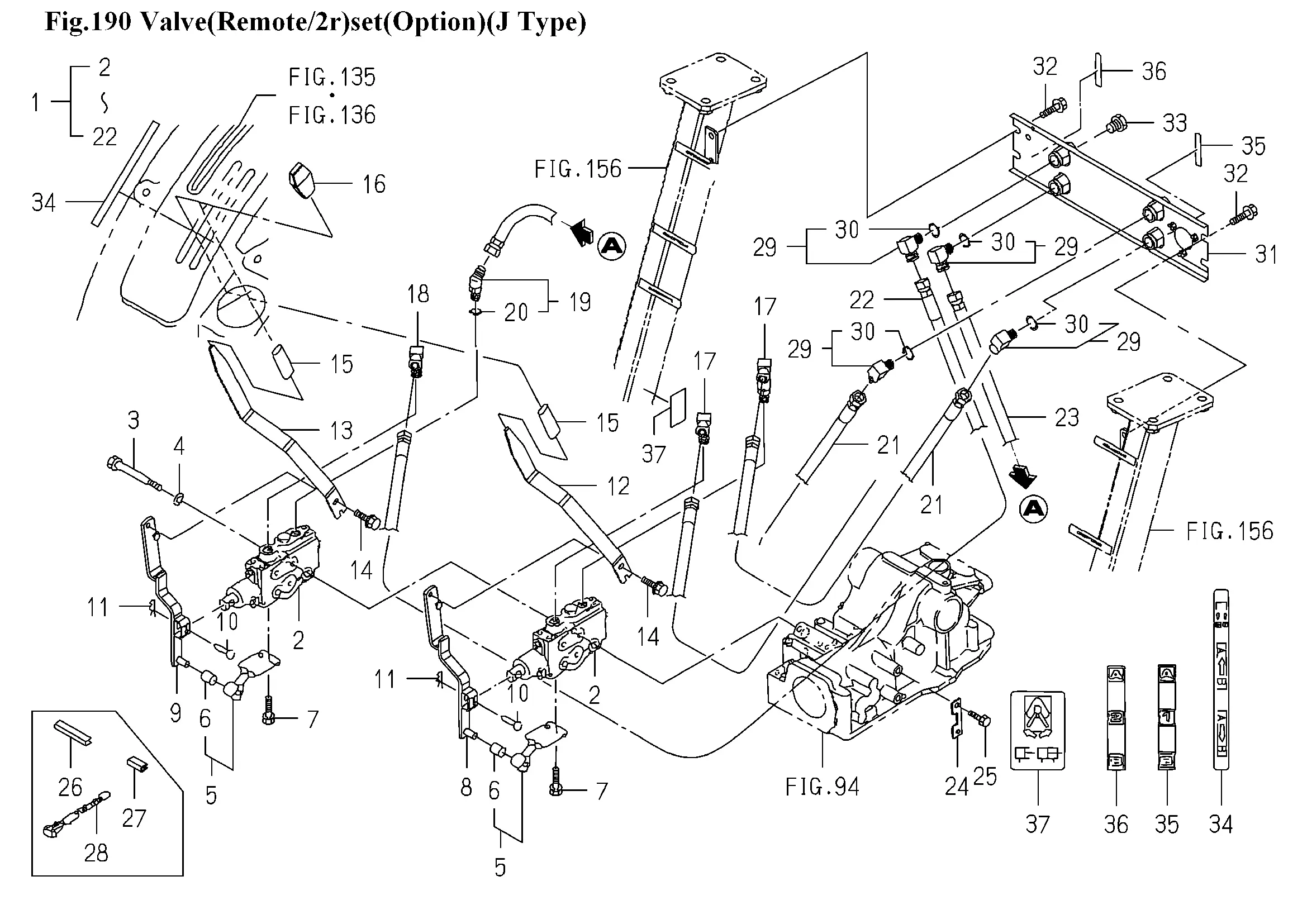

Steuergerät
Ersatzteile (37 Teile)
1
1772-512-930-10
2
VALVE/CONTROL ASSY
3
BOLT/M10X120
4
WASHER,SP/M10
5
HOLDER ASSY
6
BUSH/10X12X20
7
V211-260-801-60
8
ARM/1ST COMP
9
ARM/2ND COMP
10
PIN/06X31
11
PIN,SNAP/6
12
1773-512-091-20
13
LEVER/AUX/2ND
14
BOLT,SP/M8X16
15
INSULATOR/LEVER/SUB
16
GRIP/03X17X74
17
CONNECTOR
18
CONNECTOR/L
19
1759-512-270-00
20
O-RING/1B,P14
21
1773-512-950-00
22
Schlauch, 660
23
1744-512-260-00
24
PLATE/STOPPER
25
V231-361-002-00
26
3650-201-008-00
27
TRIM/30
28
1342-402-006-00
29
ADAPTER/L/G3/8 ASSY
30
O-RING/1B,P14
31
1772-512-210-10
32
V211-361-001-60
33
PLUG/SCREW/SEAL
34
1773-902-015-00
35
1742-512-006-00
36
1742-512-007-00
37
LABEL/SUBCON
