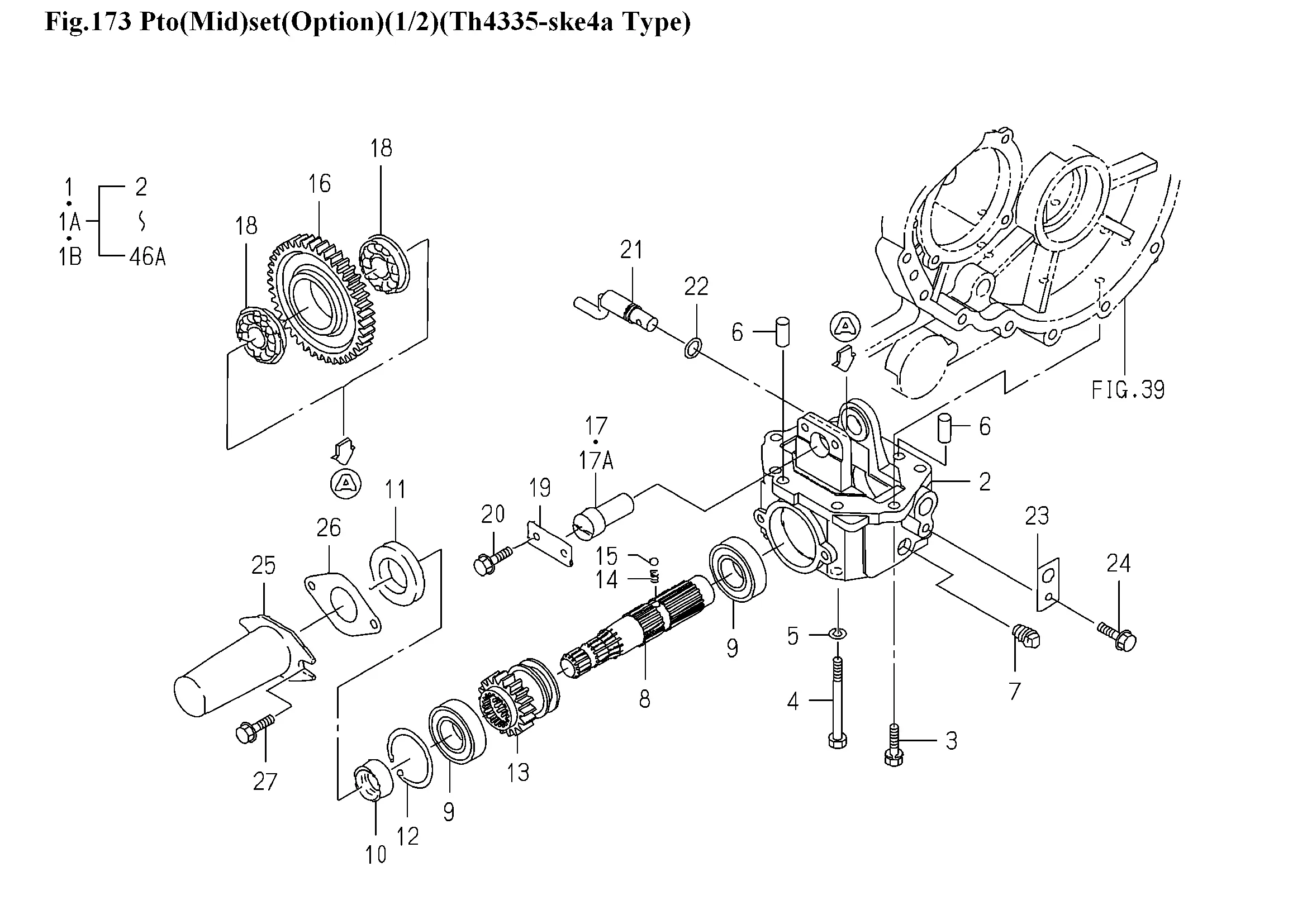

Zwischenachs PTO
Ersatzteile (50 Teile)
1
Zwischenachsgetriebe, PTO 4335AL
1A
1773-229-900-20
1B
1773-229-900-30
2
CASE/PTO/MID
3
BOLT,S/M10X25/7T
4
V201-361-009-00
5
WASHER,SP/M10
6
PIN,ST,B/10X24
7
PLUG/SCREW/SEAL
8
SHAFT/PTO/MID
9
V600-410-620-60
10
1480-212-004-10
11
SEAL/OIL
12
RING,SNAP/R62
13
GEAR/SPUR/18
14
SPRING,SHIFTER
15
BALL,STEEL
16
GEAR/SPUR/41
17
Welle
17A
1620-255-207-10
18
1603-322-003-00
19
PLATE/I 25X60
20
FLANGEBOLT/M8X16
21
ARM/SHIFT/MID COMP
22
O-RING/1A,P14
23
PLATE/I/30X50
24
V231-360-801-20
25
1444-314-009-10
26
PLATE
27
FLANGEBOLT/M8X16
28
ARM/PTO/MID COMP
29
PIN,SPRING/6X25 W
30
PLATE/I/19X426
31
WASHER,PL/M8
32
PIN,SPLIT/2X20
33
Schaltarm
34
BUSH(18X20X20)
35
PLATE/Z/19X388
36
WASHER,PL/M8
37
PIN,SPLIT/2X20
38
Schaltarm
39
Buchse 22x25x25
40
1514-312-003-00
41
RING,SNAP/22 C
42
LEVER/PTO/MID COMP
43
FLANGEBOLT/M8X16
44
GRIP/MID/PTO
45
INSULATOR/LEVER/SUB
46
1772-902-026-10
46A
LABEL/CONTROL/MID
