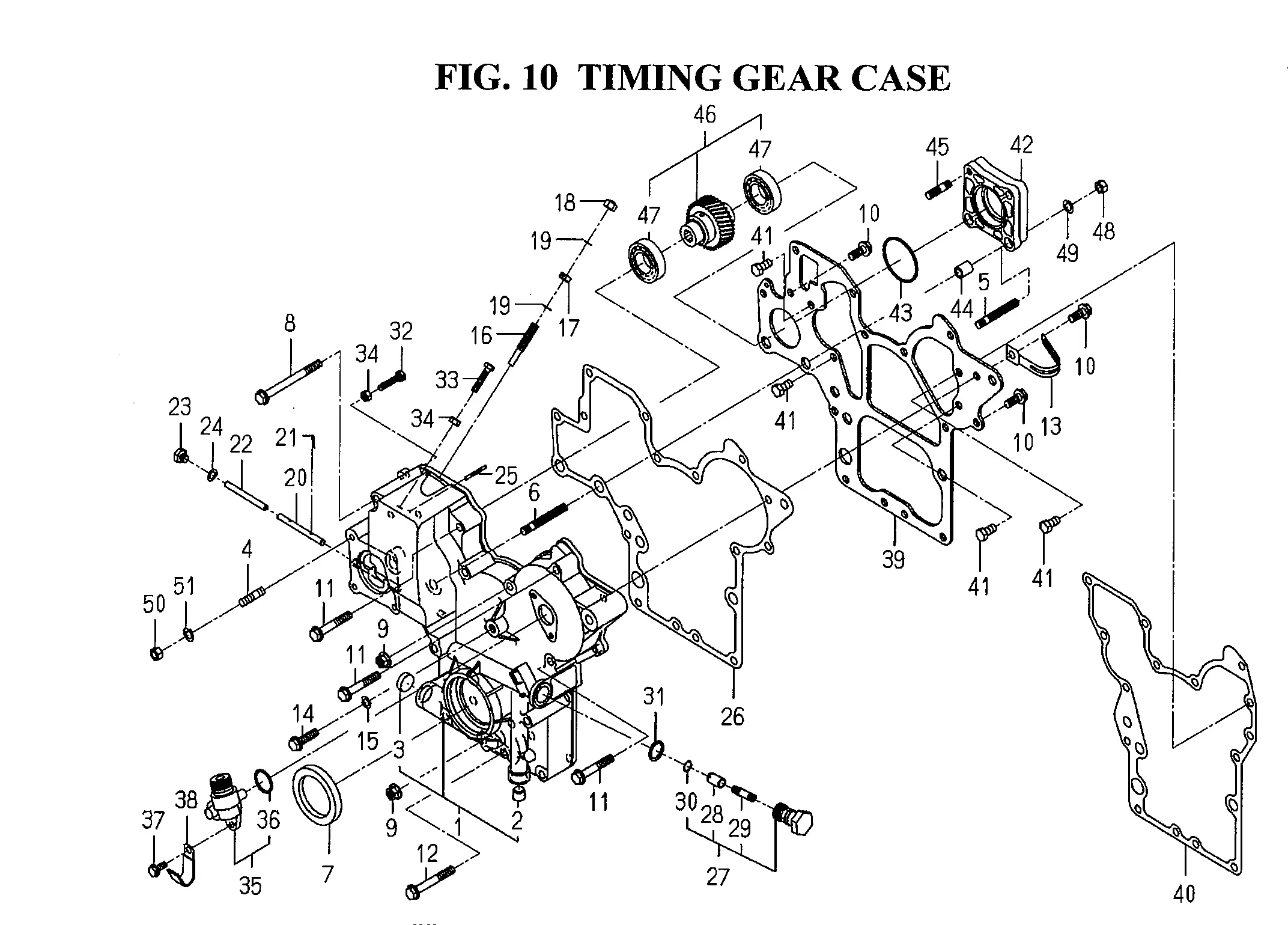

Stirnradgetriebe
Ersatzteile (51 Teile)
1
6211-310-028-00
2
6209-605-003-20
3
CUP/SEALING/20
4
STUD
5
STUD
6
STUD
7
OILSEAL
8
V231-360-809-00
9
NUT/M08
10
FLANGEBOLT/M8X16
11
FLANGEBOLT/M8X50
12
FLANGEBOLT/M8X60
13
CLAMP
14
V231-360-803-00
15
WASHER/08X14X01
16
6215-546-003-10
17
6209-409-001-00
18
NUT,CAP/M8
19
PACKING
20
PIN/ARM
21
PIN/SNAP
22
PIN
23
PLUG/SCREW
24
WASHER/08X14X01
25
PIN/GROOVE
26
GASKET/GEARCASE
27
VALVE/RELIEF ASSY
28
PISTON/VALVE/RELIEF
29
SPRING/RELIEF VALVE
30
RING,SNAP/12 C
31
O-RING/1A,P18
32
6209-050-001-00
33
6209-050-002-00
34
V301-260-006-00
35
DRIVE/TACHOMETE ASSY
36
O-RING/1A,S24
37
FLANGEBOLT/M6X16
38
3748-172-007-00
39
6211-311-029-30
40
GASKET/PLATE
41
6902-050-816-00BOLT
42
SPACER
43
O-RING/1A,S50
44
PIN/TUBE
45
STUD
46
Welle
47
BEARING
48
NUT/M8
49
WASHER,SP/M8
50
NUT/M8
51
WASHER,SP/M8
