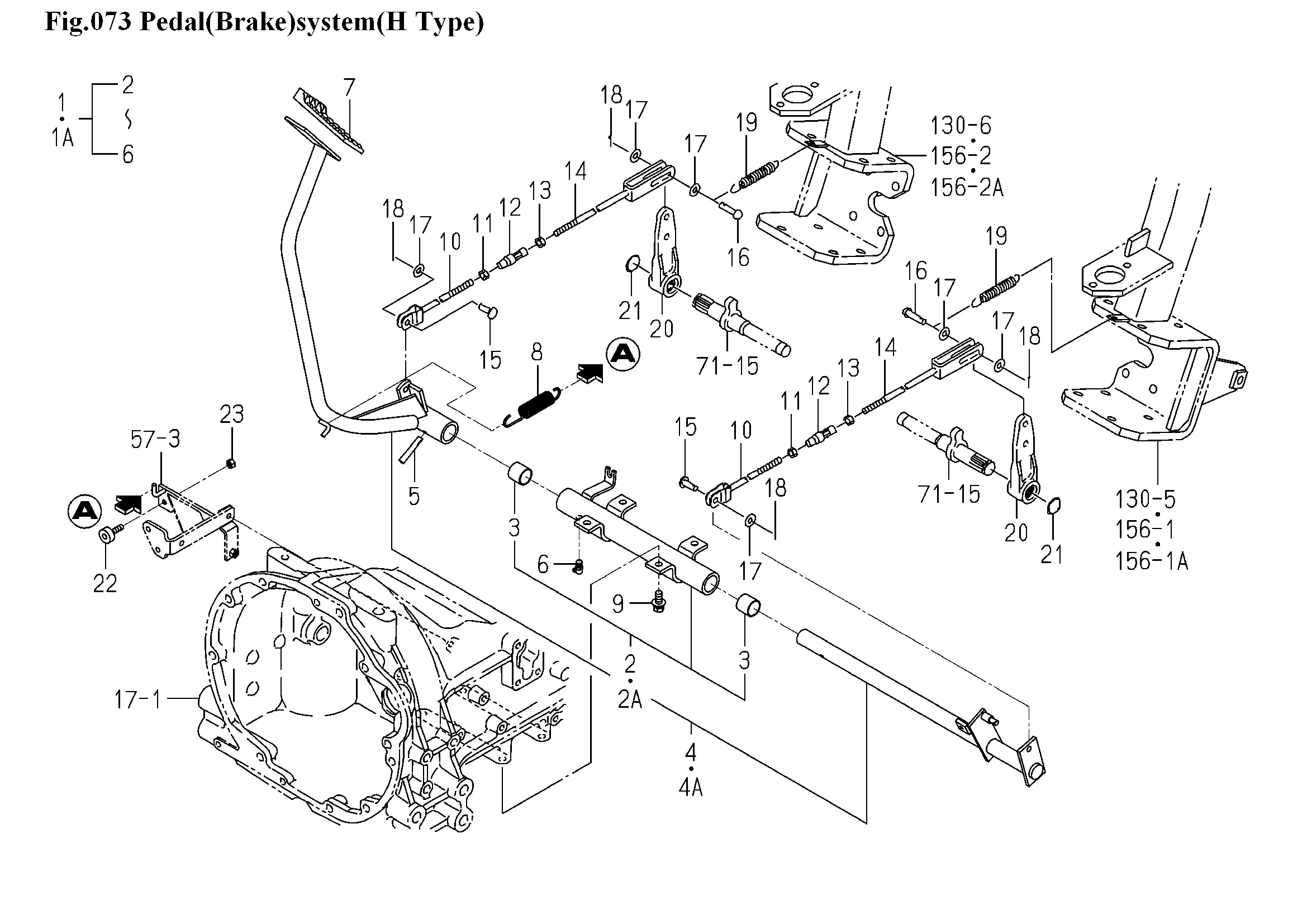

Pedal, Bremse
Ersatzteile (26 Teile)
1
1772-312-500-20
1A
1772-312-500-30
2
1773-312-670-00
2A
1773-312-670-10
3
BUSH/25X28X25
4
1772-312-510-20
4A
1772-312-510-30
5
PIN,TAPER/8X50
6
NIPPLE,GREASE/PT1/8
7
PAD
8
SPRING/HE120
9
BOLT,SP/M10X25/7T
10
Spanngabel
11
NUT/LH/M08
12
TURNBUCKLE/M8
13
NUT/M8
14
ROD/FORK COMP
15
PIN
16
PIN,YOKE A
17
WASHER,PL/M8
18
PIN,SPLIT/2X20
19
SPRING/HE095
20
Bremsarm
21
RING,SNAP/22 C
22
1421-602-005-10
23
NUT/M8
